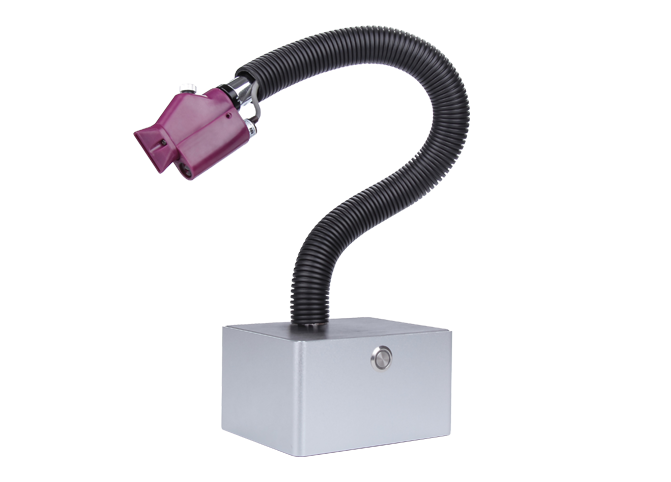

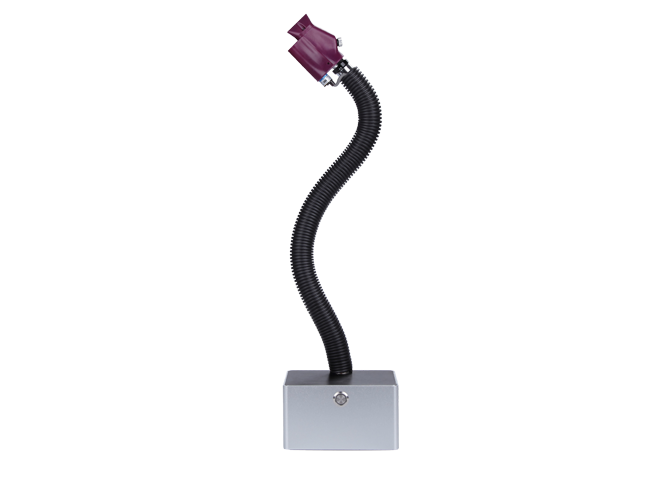

4.5th Generation Mechanical and Intelligent Ion Wind Snake

Model: KP301C

KP301C 4.5th generation mechanical and intelligent ionic wind snake is the latest electrostatic removal device developed by Kapal to eliminate static electricity on the surface of objects. KP301C 4.5th generation mechanical and intelligent ionic wind snake is a sitting and vertical electrostatic eliminator. It can manually deform the snake tube so that the wind snake points in the target direction, allowing the ion airflow to blow directly to the target surface, making it easy to move, and can be placed in various working areas. It has good electrostatic removal and dust removal effect and needs to be equipped with compressed air to use. The photoinductor switch can be installed to control the airflow.
Application areas
  • Mobile phones, semiconductors

    Mobile phones, semiconductors

  • Medical, packaging

    Medical, packaging

4.5th Generation Mechanical and Intelligent Ion Wind Snake
4.5th Generation Mechanical and Intelligent Ion Wind Snake
4.5th Generation Mechanical and Intelligent Ion Wind Snake
4.5th Generation Mechanical and Intelligent Ion Wind Snake
4.5th Generation Mechanical and Intelligent Ion Wind Snake

Product Overview

KP301C 4.5th Generation Machinery and Intelligent  Ion Wind Snake It is the latest electrostatic removal device developed and produced by Kapal Company to eliminate static electricity on the surface of objects.

KP301C 4.5th Generation Machinery and Intelligent Ion Wind Snake It is a sitting and upright electrostatic eliminator. It can manually deform the snake tube so that the wind snake points in the target direction, allowing the ionic airflow to blow directly to the target surface, making it easy to move, and can be placed in various working areas. It has good electrostatic removal and dust removal effect and needs to be equipped with compressed air to use. The photoinductor switch can be installed to control the airflow.

KP301C 4.5th Generation Machinery and Intelligent Ion Wind Snake A large amount of air flow with positive and negative charges can be generated, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.

KP301C 4.5th Generation Machinery and Intelligent Ion Wind Snake It is used in precision electronics, pharmaceutical manufacturing, semiconductor production and other industries.

Features

1. Intelligent and modern, with exquisite appearance, simple and novel structure, and easy to move and place.

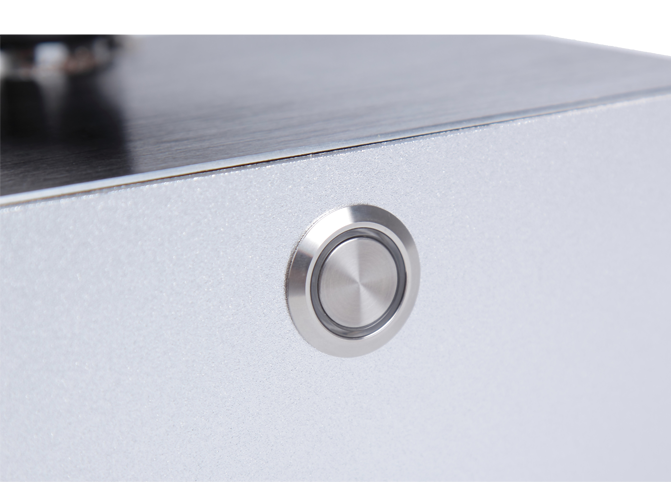

 2. Install the ring metal switch of the flash to see whether the product is working normally.

 3. It has the function of high-voltage fault wind alarm notification.

 4. Use induced current, and have high safety performance.

 5. The neutralization of static electricity is fast, the balance voltage is low, and the safety performance is high.

 6. Choose to install a photoinductor switch to control the airflow to avoid manual operation.

 7. Power supply and Ion Wind Snake The body adopts an integrated design to save space.

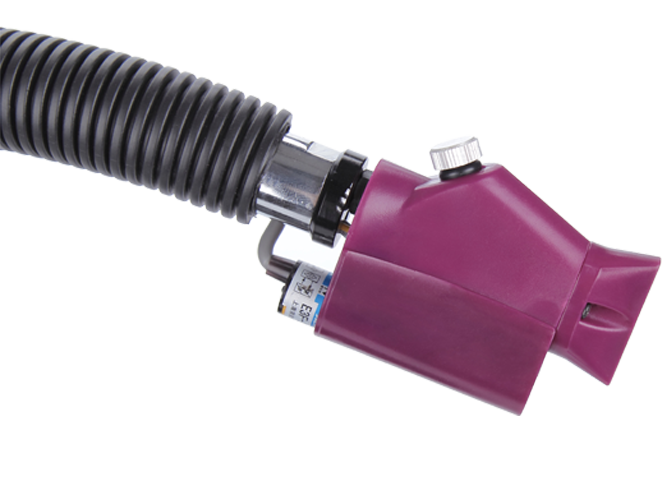

 8. Freely replace the air outlet according to the size of the product.

Technical parameters

Use voltage

220V/50Hz or 110V/60Hz

Output voltage

AC 4.6KV

Power

30W

Working distance

100-400mm

Ion equilibrium

≤|±35V|

Discharge time

≤2S

Operating temperature

0℃-50℃

Working humidity

<70%

Noise

<70dB

net weight

Approximately 2.6kg (excluding photoinductor switch)

net weight

About 3.0kg (including photoinductance switch)

Heavy

Approximately 3.3kg (excluding photoinductance switch)

Heavy

About 3.7kg (including photoinductance switch)

Table

Sandblasting

Use media

Clean compressed air

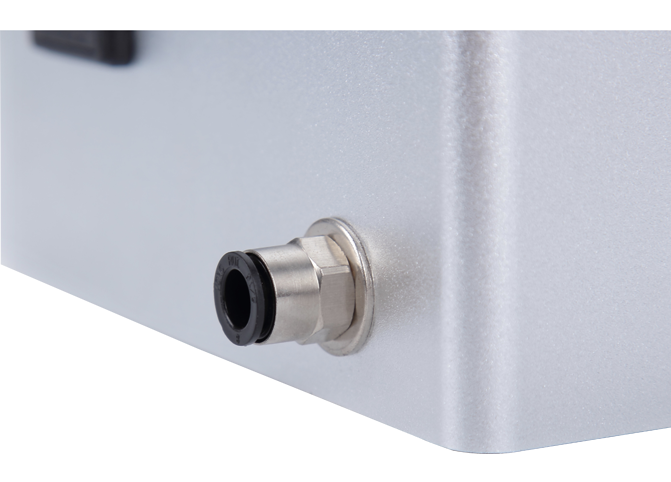

Air source connector

F8mm

Snake tube length

525mm

Bottom box size

163mm(L)*126mm(W)*90mm(H)

External dimensions

163mm(L)*126mm(W)*700mm(H)

Housing material

Aluminum alloy

Power cord length

1.8M

Test results

Test conditions

Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃

distance

300mm

600mm

Neutralization time

just

0.5s

0.7s

burden

0.5s

0.8s

Residual voltage

just

+22v

+28v

burden

-25v

-30v

* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.

* Testing is based on IEC-61340-5-1 A·6.

* The data tested will vary depending on the temperature and humidity changes around it.
