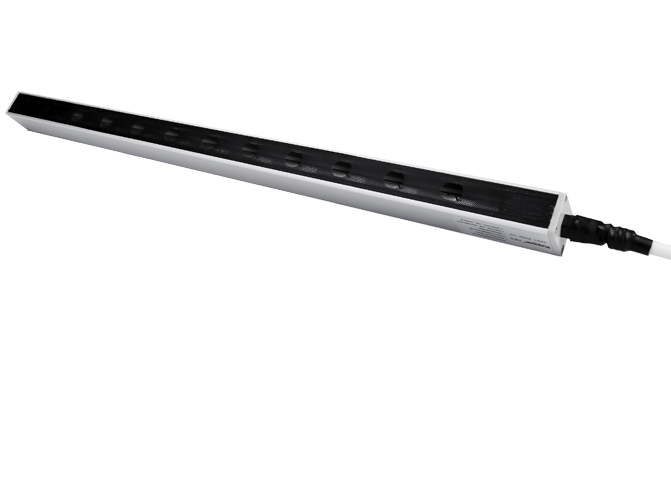

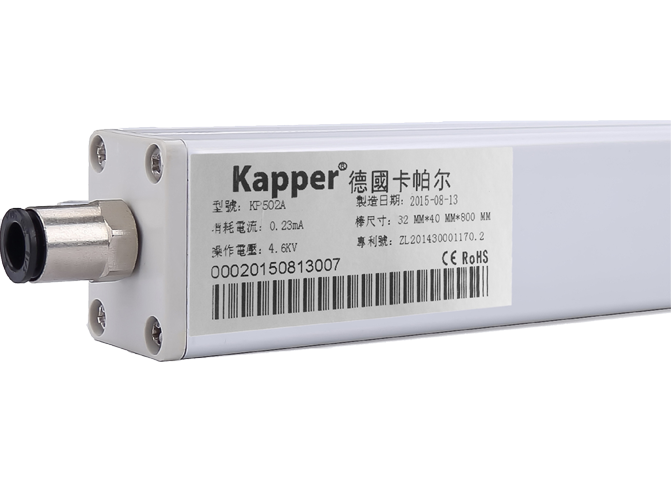

4.5th generation mechanical and intelligent ionic wind rod

Model: KP502A

KP502A 4.5th generation mechanical and intelligent ionic wind rod is the latest electrostatic removal device developed by Kapal to eliminate static electricity on the surface of objects. KP502A 4.5th generation mechanical and intelligent ionic wind rod is an electrostatic removal device commonly used to eliminate electrostatic absorption dust. The KP401A 4.5th generation mechanical and intelligent high-voltage power supply is required to be equipped with compressed air and operating voltage of 4.6KV. The length can be customized according to customer's requirements.

Application areas

Product Overview

KP502A 4.5th Generation Machinery and Intelligent Ion wind rod It is the latest electrostatic removal device developed and produced by Kapal Company to eliminate static electricity on the surface of objects.

KP502A 4.5th Generation Machinery and Intelligent Ion wind rod It is a static electricity removal device commonly used to eliminate static dust absorption. The KP401A 4.5th generation mechanical and intelligent high-voltage power supply is required to be equipped with compressed air and operating voltage of 4.6KV. The length can be customized according to customer's requirements.

KP502A 4.5th Generation Machinery and Intelligent Ion wind rod A large amount of air flow with positive and negative charges can be generated, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.

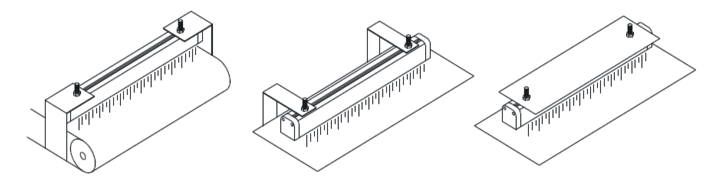

KP502A 4.5th Generation Machinery and Intelligent Ion wind rod Widely used in electronics, printing, packaging, coating production lines and other industries.

Features

1. The appearance is exquisite, the production is exquisite, and the design is novel.

2. It is strong and durable, with strong wind power, suitable for all kinds of harsh working environments.

3. The neutralization of static electricity is fast, the dust removal effect is good, and the balance voltage is low.

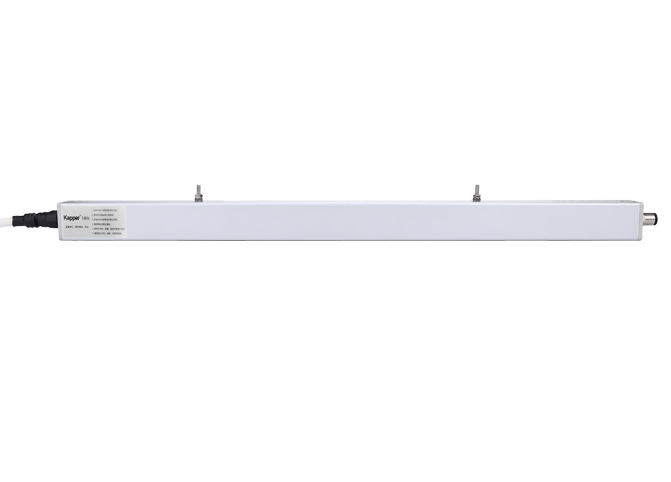

4. Special strip notches of rod body, the installation bolts are movable and convenient.

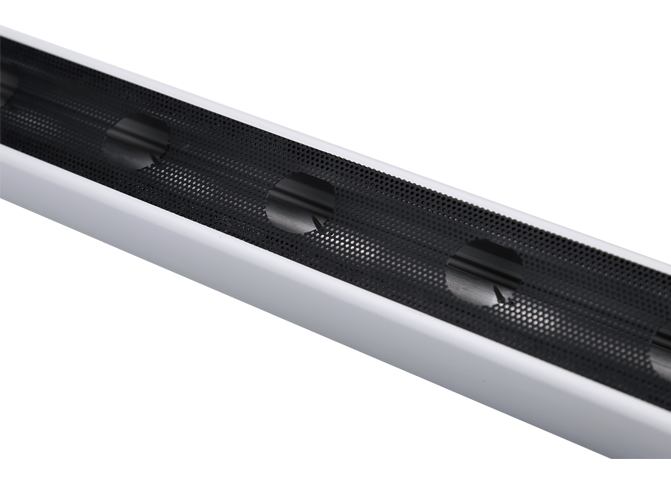

5. The mesh effectively prevents the finger from directly contacting the high-voltage ion needle and causing the risk of high-voltage electric shock.

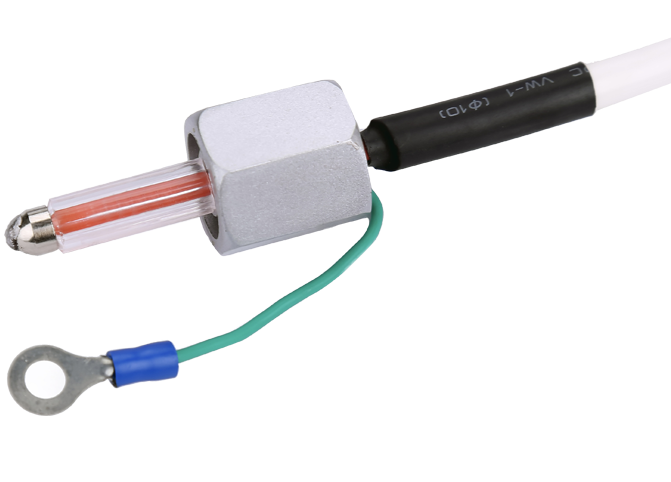

6、Ion wind rod Have good ground protection function.

Technical parameters

Use voltage	220V/50Hz or 110V/60Hz
Output voltage	AC 4.6KV
Working distance	10－1000mm
Operating temperature	0℃-50℃
Working humidity	＜70%
net weight	About 0.9kg/600mm (including 3M high voltage wire)
Use media	Clean compressed air

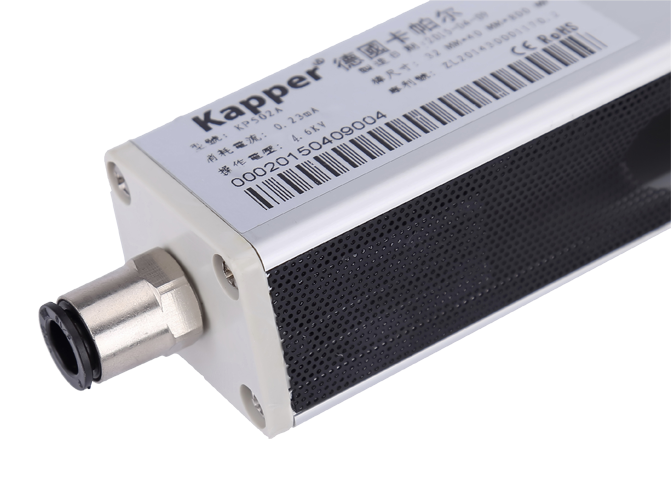

Air source connector	F8mm
Rod length	200-3000MM (customized according to customer requirements)

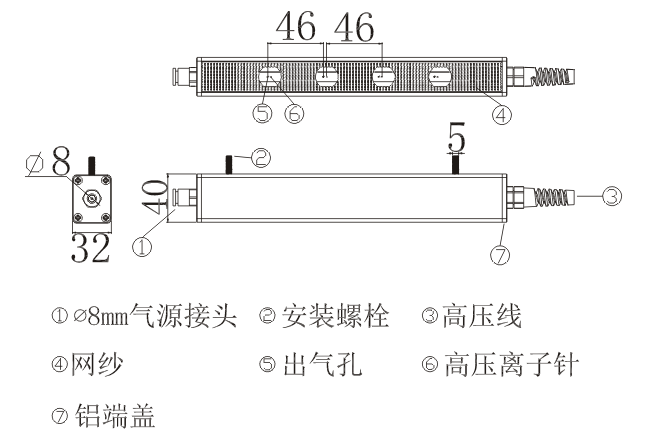

Cross-sectional area	32mm(W)40mm(H)X(Arbitrary length)mm
Rod body material	Aluminum
High voltage wire length	3M
Compressed air pressure	40-70psi

Test results

Test conditions
Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃
distance		300mm	600mm
Neutralization time	just	0.8s	1s
	burden	0.7s	1.2s
Residual voltage	just	≤\|±90V\|
	burden

* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.

* Testing is based on IEC-61340-5-1 A·6.

* The data tested will vary depending on the temperature and humidity changes around it.
