Sixth generation intelligent desktop ion fan-Dongguan Keyuan Anti-static Equipment Co., Ltd.

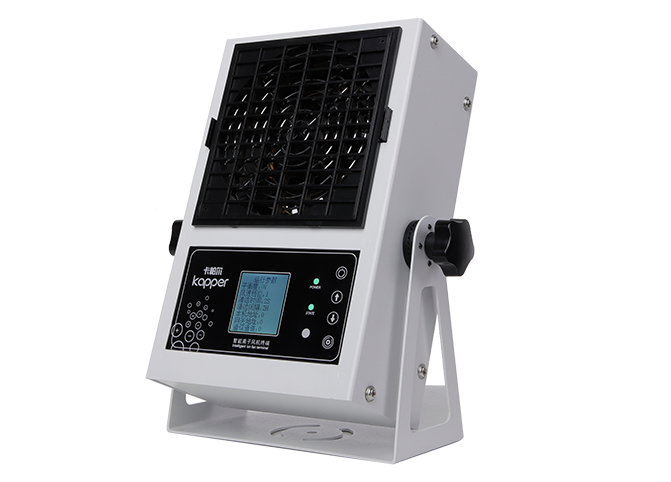

Sixth generation intelligent desktop ion fan

Model: KP101C

The sixth generation intelligent desktop ion fan of KP101C is a newly developed and produced intelligent electrostatic removal device for eliminating static electricity on the surface of objects by Kapal. The sixth generation smart desktop ion fan of KP101C can generate a large amount of air flow with positive and negative charges, which can neutralize the charge carried on objects. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity. The KP101C sixth generation intelligent desktop ion fan is provided by a small fan, and the wind power can be adjusted in a touch button or a remote control.

Application areas

Electronics, photoelectrics, semiconductors

Sixth generation intelligent desktop ion fan

Product Overview

KP101C sixth generation smart desktop Ion fan It is a newly developed and produced by Kapal Company to eliminate static electricity on the surface of objects.

KP101C sixth generation smart desktop Ion fan A large amount of air flow with positive and negative charges can be generated, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.

KP101C sixth generation smart desktop Ion fan The wind power is provided by a small fan, and the wind power can be adjusted in the touch button or in the remote control.

KP101C sixth generation smart desktop Ion fan It is used in precision electronics, pharmaceutical manufacturing, plastics, optoelectronics and other industries.

Features

1. Intelligent and modern, with exquisite appearance, fine production and novel design.

2. Automatic cleaning function of the launch needle brush, deeper maintenance (cleaning time/cleaning interval/front and reverse cleaning direction/turn on the computer can be set by yourself).

3. Remote control and touch dual control power supply start to adjust the wind power.

4. Remote control lock screen locks the wind speed and parameter settings, workshop Ion fan Standardize the removal of static electricity.

5. It has fan abnormal alarm, high-voltage abnormal alarm and ion balance threshold exceeding the standard alarm, and the air opportunity self-test protection stops working.

6. Lora and Zigbee can realize interchangeable networking and realize network monitoring functions (local address, gateway address, and communication channel can be set by themselves).

7. Digital display of ion equilibrium.

8. The screen contrast is adjustable.

9. You can choose to add infrared sensing function according to your needs.

10. Fast destatic electricity, low balance voltage, and high safety performance.

11. Energy-saving and environmentally friendly, low power consumption.

Technical parameters

control Panel	LED digital display	Wind speed gear/ion balance/cleaning time/cleaning interval/native address/gateway address/communication channel (locking, anti-dust)
	Automatic cleaning button	Automatic cleaning can be set every 8 hours (cleaning interval, cleaning time, and cleaning in the front and reverse directions can be set by yourself) (locking, anti-stay)
	Anomaly fault alarm	The wind sounds/The indicator light is blinking red
	Wind speed gear	Remote control/touch dual control (locking, anti-dust)
	Power start	Remote control/touch dual control (locking, anti-dust)
	Touch the button to adjust the speed	Remote control/touch dual control (locking, anti-dust)
power supply	Intelligent frequency converter AC 220V/filtered anti-interference	Intelligent control system/fan DC12V
power supply	The socket is wired on the back	/
Appearance	Fixed method	The angle has anti-dust function, and special tools are required to adjust the angle
	Material	Aluminum
	Table	Electrostatic spray paint
	Front plastic air window	Removable
	Rear plastic air window	Optional filter
	Case grounding	No leakage

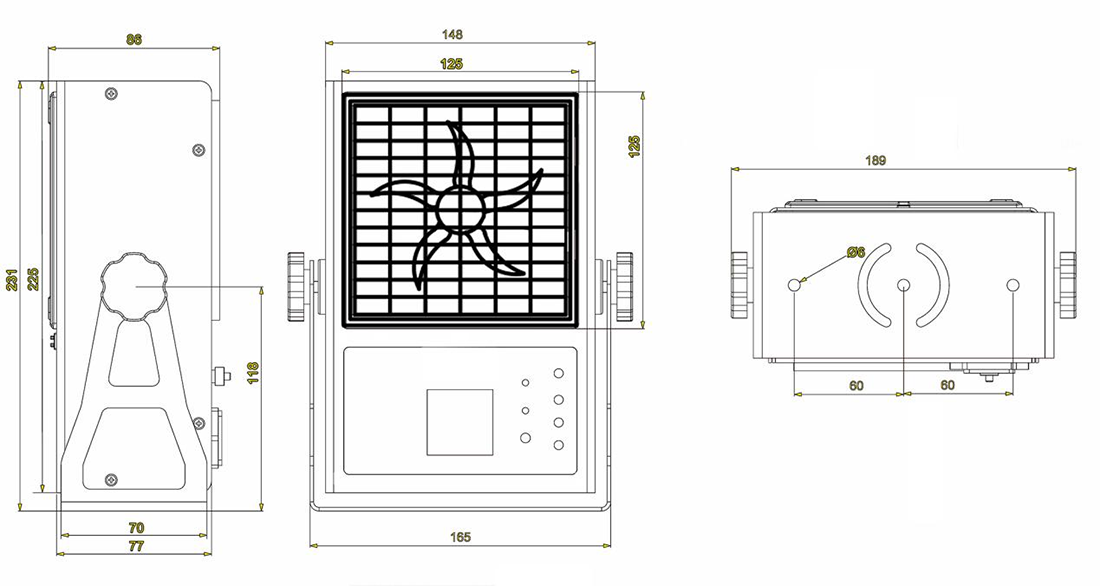

	Including bracket size	189(L)86(W)231(H)mm
	No bracket size included	148(L)86(W)225(H)mm
Electrostatic facilities	Automatic cleaning of discharge needle	/
	Discharge needle material	Tungsten alloy
	Discharge time	≤2S (300mm away from the product)
	Ion equilibrium	≤\|±10V\| (300mm away from the product)
	Cleaning brush	Anti-static material, will not wear and will not lose hair
	Power	8W
	Working distance	100－600mm
	Operating temperature	0-50℃
	Working humidity	30%-65%
	Air output	45-110CFM
	Noise	45-55dB
	net weight	About 1.78kg
Extended features	Optionally add infrared sensing function

Test results

Test conditions
Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃
distance	300mm
Neutralization time	just	0.7s
	burden	0.8s
Residual voltage	just	+6v
	burden	-7v

* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.

* Testing is based on IEC-61340-5-1 A·6.

* The data tested will vary depending on the temperature and humidity changes around it.

Remote Control Function

Note: The remote control is a consumable and is not covered by the warranty.
