Product Overview

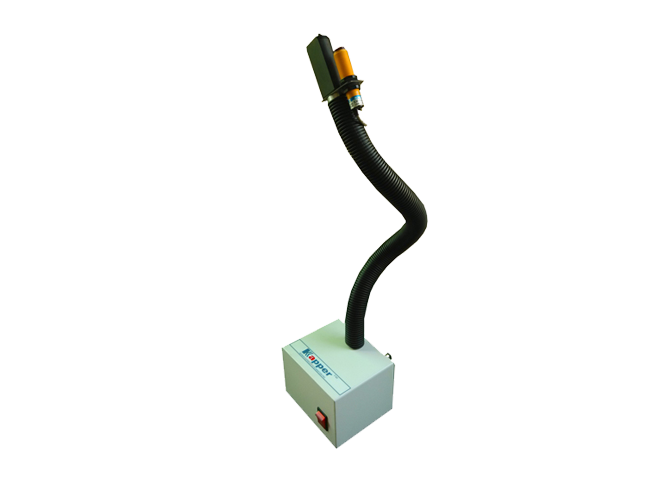

KP3010C adjustable induction joint-piece ion wind snake is an electrostatic removal device developed and produced by Kapal Company to eliminate static electricity on the surface of objects.
KP3010C adjustable induction type ionic wind snake is a sitting and upright electrostatic eliminator. It can manually deform the snake tube so that the wind snake points in the target direction, allowing the ion airflow to blow directly to the target surface, making it easy to move, and can be placed in various working areas. It has good electrostatic removal and dust removal effect and needs to be equipped with compressed air to use.
KP3010C adjustable induction joint-piece ion wind snake can generate a large amount of air flow with positive and negative charges, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.
KP3010C adjustable induction joint-piece ion wind snake is used in industries such as electronic assembly line, medical device manufacturing, semiconductor production and flat panel display manufacturing.
Features
* Quickly eliminate static electricity.
* Small size and save space.
* Control the airflow with infrared photoinductor switches to avoid manual operation.
* The wind snake comes with its own regulator to adjust the air pressure at will.
* The wind snake can rotate to point the wind nozzle to the target position, allowing the ionic airflow to blow directly to the target surface without manual operation.
* Wind snake has good grounding protection function.
Technical parameters
Use voltage | 220V/50Hz or 110V/60Hz |
Output voltage | AC 4.6KV |
Power | 26W |
Working distance | 100-300mm |
Ion equilibrium | ≤|±40V| |
Discharge time | ≤2S |
Operating temperature | 0℃-50℃ |
Working humidity | <70% |
Noise | <70dB |
weight | 3.2kg |
Table | Baking paint |
Use media | Clean compressed air |
Air source connector | Ф8mm (customized according to customer requirements) |
Compressed air pressure | 0.3-0.8Mpa |
Airflow speed | 3-10m/S |
Snake tube length | 525mm |
Power cord length | 1.8M |
Test results
Test conditions | ||
Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | ||
distance | 300mm | |
Neutralization time | just | 0.8s |
burden | 0.9s | |
Residual voltage | ≤±40V | |
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The data tested will vary depending on the temperature and humidity changes around it.
