Product Overview

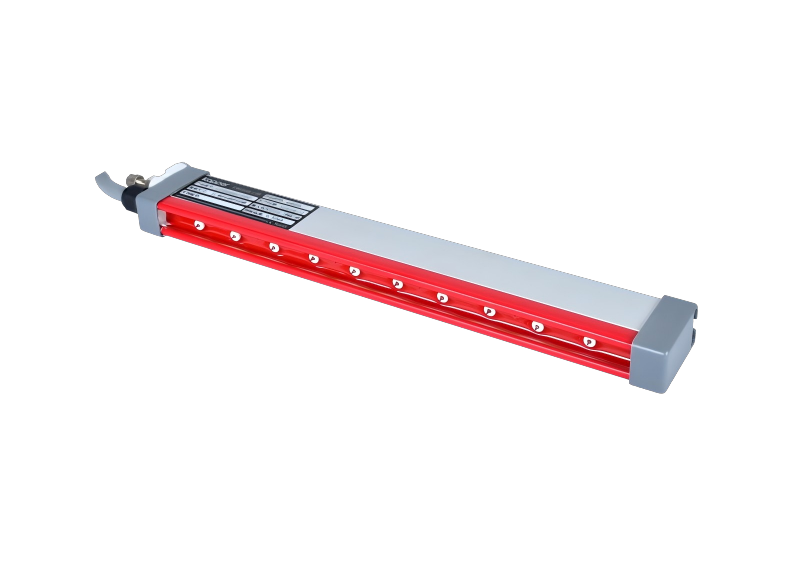

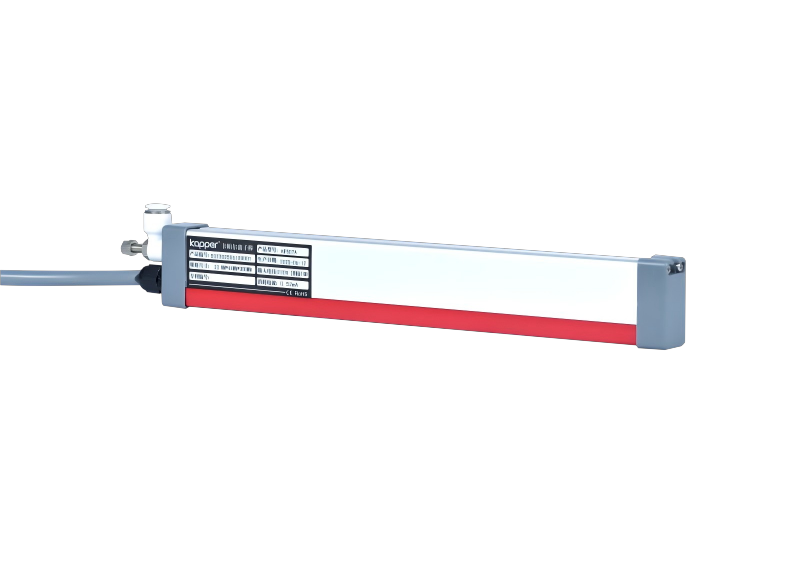

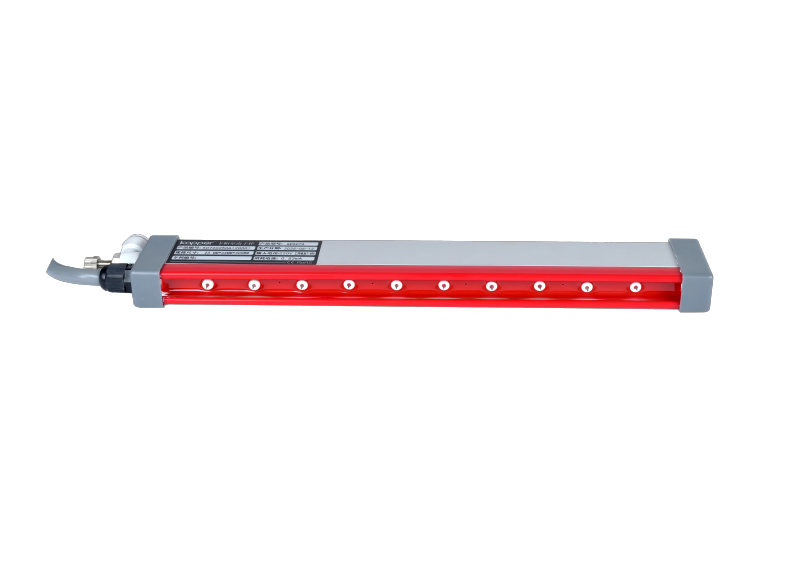

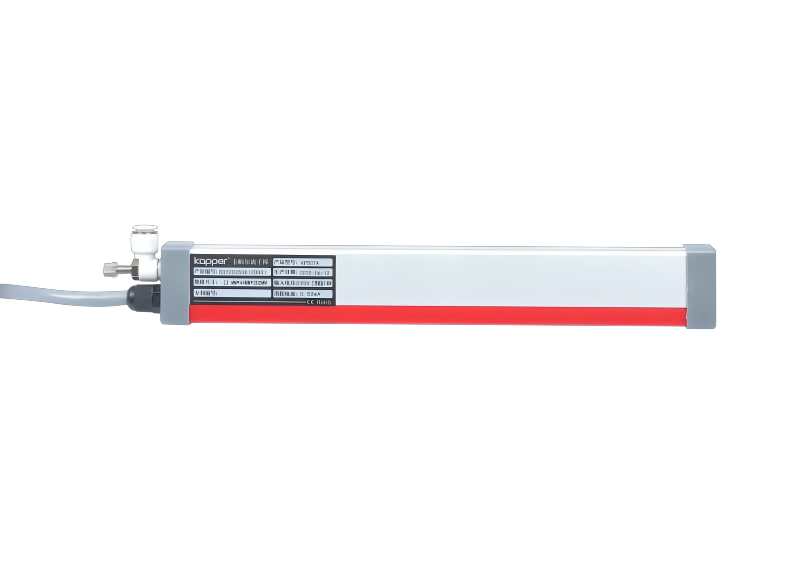

KP507A The 4.5 generation machinery and Smart red adjustable ion rod yes Capal The company's latest development and production to eliminate static electricity on the surface of objects quiet Electrical device.
KP507A The 4.5 generation machinery and Smart red adjustable ion rod is an optional connection or non-connection of compressed air The quiet Electrical devices , the static distance of unconnected compressed air is recommended in120mm about , the distance to eliminate static electricity from the compressed air is recommended in 300mm about . It is a fixed electrostatic removal device. Need to be equipped with compressed air and7.0KV of Special adjustable Only high voltage power supply can be used . The length can be customized according to customer's requirements. It has the characteristics of easy installation, stable work and fast static elimination.
KP507A The 4.5 generation machinery and Smart red adjustable ion rod Can generate a large amount of positive and negative charges, Neutralizes static electricity in its ion radiation zone. When the charge on the surface of the object is negative, it will attract positive charges in the radiation area. When the charge on the surface of the object is positive, it will attract negative charges in the radiation area, thereby neutralizing the static electricity on the surface of the object, achieving the purpose of eliminating static electricity. Since static electricity is easy to absorb dust, the product surface is not easy to absorb dust after removing static electricity.
KP507A The 4.5 generation machinery and Smart red adjustable ion rod Can be widely available Applications in electronics, plastics, chemicals, printing, textiles, photoelectricity , lithium battery, coiling, coating, slitting, diaphragm and other industries.
Product Overview
KP507AThe4.5 generation machinery andSmart red adjustable ion rodyesCapalThe company's latest development and production to eliminate static electricity on the surface of objectsquietElectrical device.
KP507AThe4.5 generation machinery andSmart red adjustable ion rodis an optional connection or non-connection of compressed airThequietElectrical devices, the static distance of unconnected compressed air is recommended in120mmabout, the distance to eliminate static electricity from the compressed air is recommended in300mmabout. It is a fixed electrostatic removal device. Need to be equipped with compressed air and7.0KVofSpecial adjustableOnly high voltage power supply can be used. The length can be customized according to customer's requirements. It has the characteristics of easy installation, stable work and fast static elimination.
KP507AThe4.5 generation machinery andSmart red adjustable ion rodCan generate a large amount of positive and negative charges,Neutralizes static electricity in its ion radiation zone. When the charge on the surface of the object is negative, it will attract positive charges in the radiation area. When the charge on the surface of the object is positive, it will attract negative charges in the radiation area, thereby neutralizing the static electricity on the surface of the object, achieving the purpose of eliminating static electricity. Since static electricity is easy to absorb dust, the product surface is not easy to absorb dust after removing static electricity.
KP507AThe4.5 generation machinery andSmart red adjustable ion rodCan be widely availableApplications in electronics, plastics, chemicals, printing, textiles, photoelectricity, lithium battery, coiling, coating, slitting, diaphragmand other industries.
Features
1. The appearance is exquisite and the craftsmanship is exquisite.
2. The shell is made of aluminum alloy, and the interior is made of high-insulating synthetic plastic, which has high safety performance.
3. Freely choose to connect compressed air to neutralize static electricity quickly.
4. Special strip notches of rod body, the installation bolts are movable and convenient.
5. The transmitting electrode is not afraid of short circuit and has a long service life.
6. Fully sealed structure, not easy to contaminate, suitable for high humidity working environments.
7. The ion balance is adjustable.
Features
1. The appearance is exquisite and the craftsmanship is exquisite.
2. The shell is made of aluminum alloy, and the interior is made of high-insulating synthetic plastic, which has high safety performance.
3. Freely choose to connect compressed air to neutralize static electricity quickly.
4. Special strip notches of rod body, the installation bolts are movable and convenient.
5. The transmitting electrode is not afraid of short circuit and has a long service life.
6. Fully sealed structure, not easy to contaminate, suitable for high humidity working environments.
7. The ion balance is adjustable.
Technical parameters
Use voltage | 220V/50Hz or 11 0V/60Hz |
Output voltage | AC 7.0KV |
Working distance | 10－1000mm |
Operating temperature | 0℃-50℃ |
Working humidity | ＜70% |
net Heavy | 0.6kg/600 mm (Including 3M high voltage wire) |
High voltage wire length | 3M |
Compressed air pressure | 40-70psi |
Use media | Clean compressed air |
Air source connector | F8mm |
Rod length | 150-3000MM (customized according to customer requirements) |
Cross-sectional area | 23mm(W)*44mm(H)* X mm (L) |
Housing material | Aluminum |
Technical parameters
Use voltage | 220V/50Hz or 110V/60Hz |
Output voltage | AC 7.0KV |
Working distance | 10－1000mm |
Operating temperature | 0℃-50℃ |
Working humidity | ＜70% |
net Heavy | 0.6kg/600mm(Including3M high voltage wire) |
High voltage wire length | 3M |
Compressed air pressure | 40-70psi |
Use media | Clean compressed air |
Air source connector | F8mm |
Rod length | 150-3000MM (customized according to customer requirements) |
Cross-sectional area | 23mm(W)*44mm(H)*X mm(L) |
Housing material | Aluminum |
Test results
Test conditions |
humidity:≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ |
distance | 300mm |
Neutralization time | just | 0.5s |
burden | 0.6s |
Residual voltage | just | +3v |
burden | -4v |
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The data tested will vary depending on the temperature and humidity changes around it.
Test results
Test conditions |
humidity:≤60% Test voltage:1KV-100V Ambient temperature: 22℃ |
distance | 300mm |
Neutralization time | just | 0.5s |
burden | 0.6s |
Residual voltage | just | +3v |
burden | -4v |
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The data tested will vary depending on the temperature and humidity changes around it.

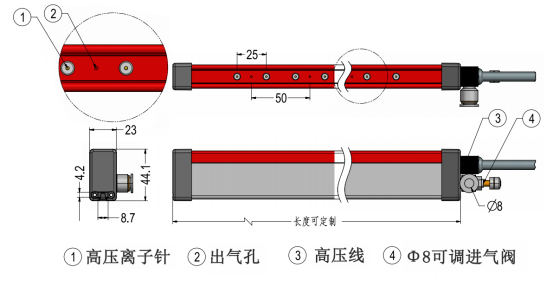

External dimensions
External dimensions

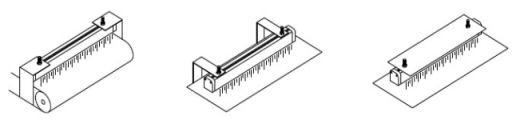

Installation method
External dimensions
