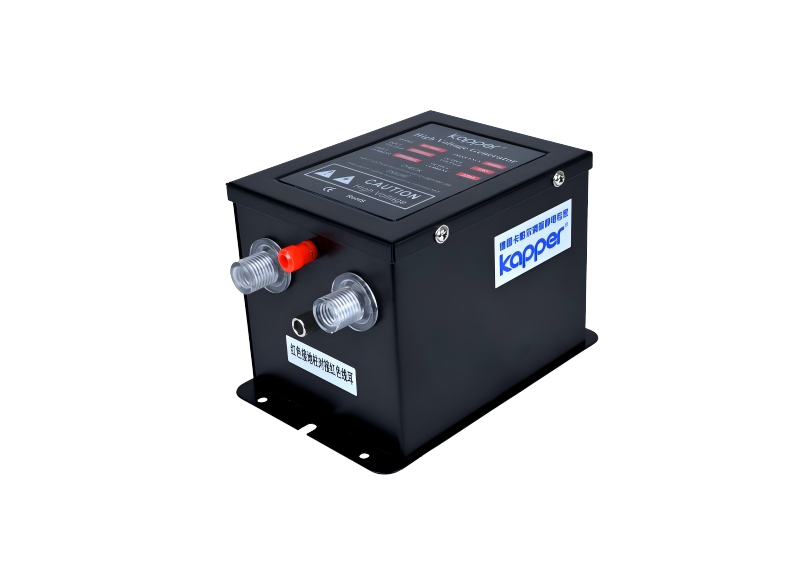

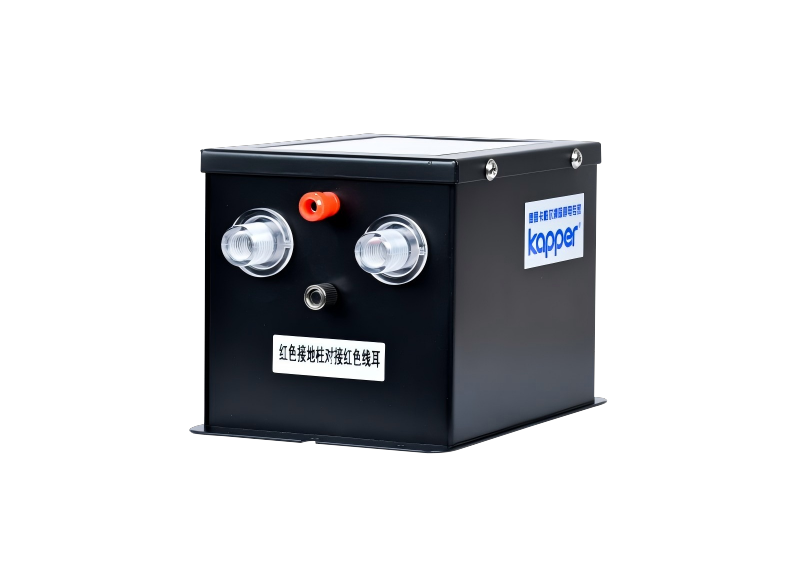

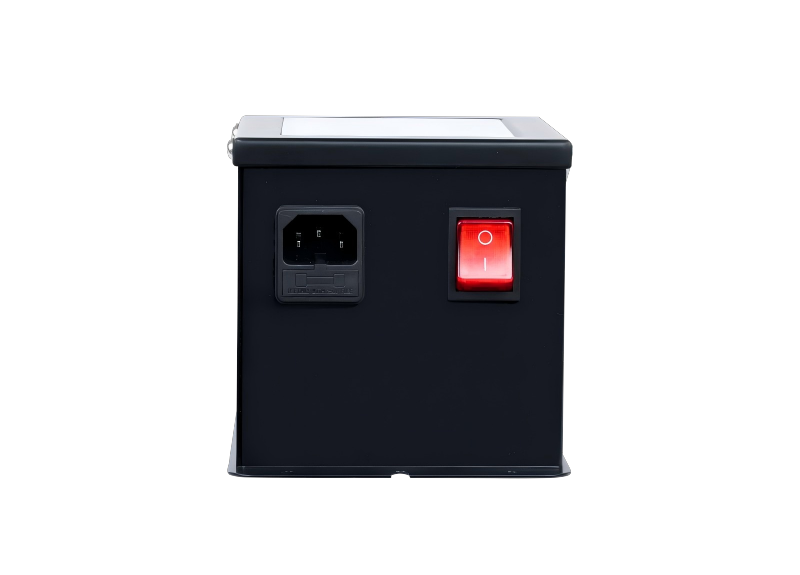

KP4003C adjustable power supply
Product Overview
KP4003C Adjustable The power supply is an electrostatic supply device developed and produced by Kapal Company to eliminate static electricity on the surface of an object.
KP4003C Adjustable Power Supply It is to use a high-voltage transformer to boost the power frequency voltage to the required voltage, and to supply two groups High voltage power supply output , ion supply Wind rod, ion rod, ion wind curtain wait Use of electrostatic elimination products. Taking into account safety issues, the maximum short circuit current output by all power supply products shall not exceed 5mA。
KP4003C Adjustable Power Supply Applied to electronics、LED photoelectric、Printing, packaging, coating production lines and other industries.
Product Overview
KP4003CAdjustableThe power supply is an electrostatic supply device developed and produced by Kapal Company to eliminate static electricity on the surface of an object.
KP4003CAdjustablePower SupplyIt is to use a high-voltage transformer to boost the power frequency voltage to the required voltage, and to supply two groupsHigh voltage power supply output, ion supplyWind rod, ion rod, ion wind curtainwaitUse of electrostatic elimination products. Taking into account safety issues, the maximum short circuit current output by all power supply products shall not exceed 5mA。
KP4003CAdjustablePower SupplyApplied to electronics、LED photoelectric、Printing, packaging, coating production lines and other industries.
Features
* Stable and safe working performance。
* Adapt to a wide voltage range.
* Small size, easy to install and connect。
* The power supply has good ground protection function.
* The ionic equilibrium is adjustable.
Features
* Stable and safe working performance。
* Adapt to a wide voltage range.
* Small size, easy to install and connect。
* The power supply has good ground protection function.
* The ionic equilibrium is adjustable.
Technical parameters
Use voltage | 220V/50Hz or 110V/60Hz |
Output voltage | AC 7.0KV（Adjustable Special for red sticks) |
Output current | ≤4.5mA |
Consumption of current | 0.29A or 0.17A |
Operating temperature | 0℃-50℃ |
Working humidity | ＜80% |
Heavy quantity | about2.6kg |
Output jack | 2 groups |
Power cord length | 1.8M |
External dimensions | 170mm(L)*118mm(W)*112mm(H) |
Housing material | Iron |
surface noodle | Static Spray paint |
Technical parameters
Use voltage | 220V/50Hz or 110V/60Hz |
Output voltage | AC 7.0KV（AdjustableSpecial for red sticks) |
Output current | ≤4.5mA |
Consumption of current | 0.29A or 0.17A |
Operating temperature | 0℃-50℃ |
Working humidity | ＜80% |
Heavy quantity | about2.6kg |
Output jack | 2 groups |
Power cord length | 1.8M |
External dimensions | 170mm(L)*118mm(W)*112mm(H) |
Housing material | Iron |
surface noodle | StaticSpray paint |
