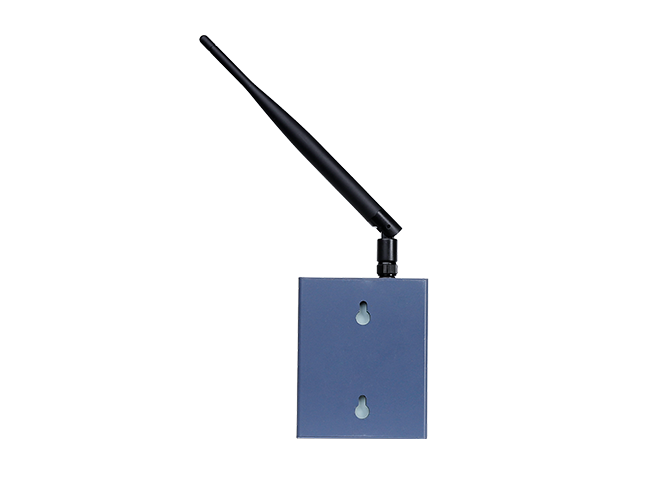

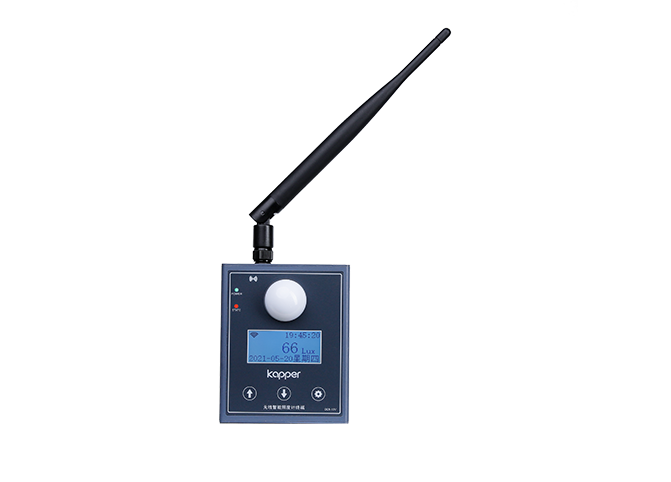

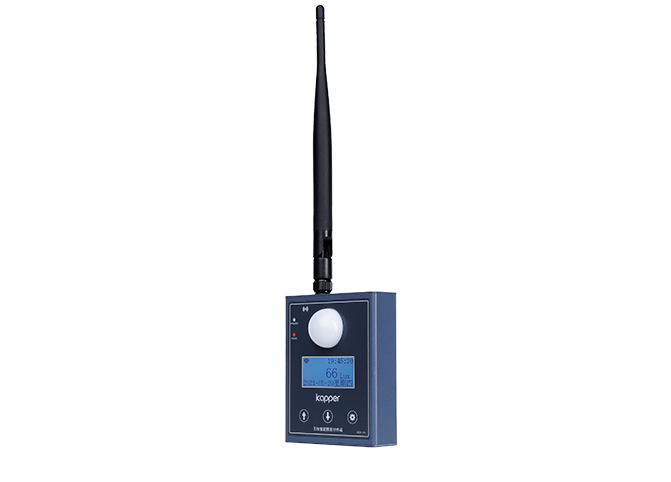

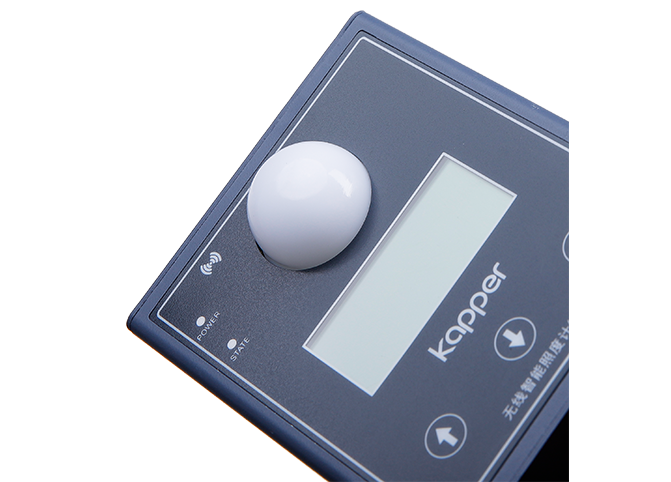

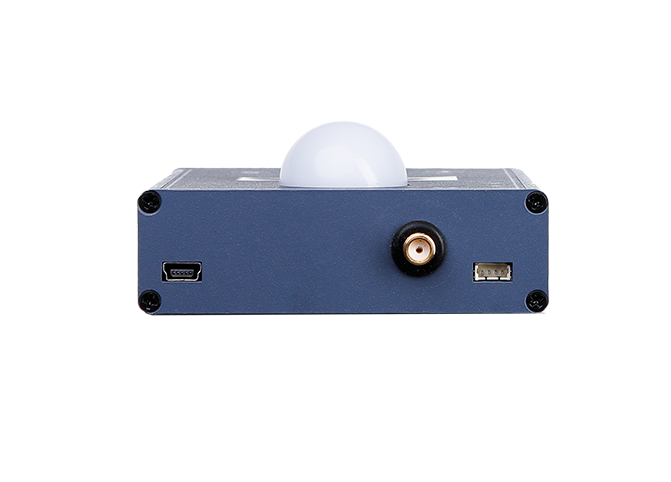

Wireless intelligent illumination meter terminal

Model: KP203

Application areas

Electronics, photoelectrics, semiconductors

Wireless intelligent illumination meter terminal

Wireless intelligent illumination meter terminal

Wireless intelligent illumination meter terminal

Wireless intelligent illumination meter terminal

Wireless intelligent illumination meter terminal

Product Overview

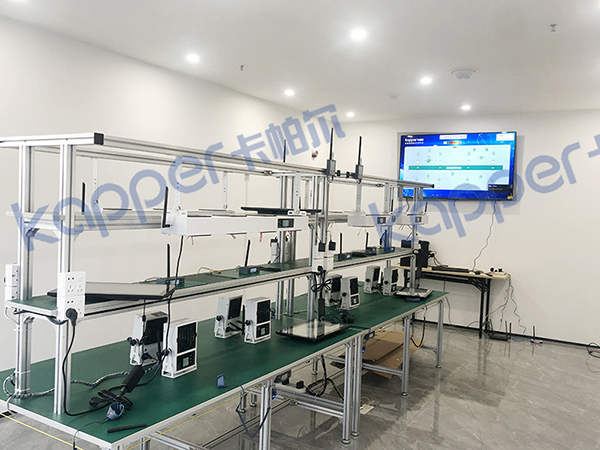

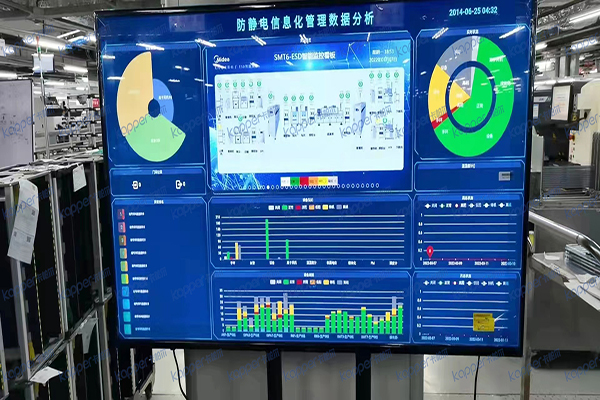

Monitoring Kanban installation.jpg WeChat picture_20220106113144.jpg

Kanban display.jpg Monitoring board 1.jpg

Features

1. Support WIFI 2.4G/5G dual-band network transmission

2. Check brightness status, reports, curve charts and historical records in real time

3. Can connect to the computer wirelessly, set the recording interval freely and store it unlimitedly

4. Illuminance detection range 0.01LUX—200000LUX

5. High precision, high stability, low power consumption

Technical parameters

Communication	Dual-band WIFI (2.4G/5G)
Indicator status	Green light normal red light alarm
power supply	12V/1A
Power consumption	≤15mW
Operating temperature	-20-60°C
Illuminance detection range	0.01LUX - 200000LUX
Measurement error	≤±4% meet the national first-level illumination meter standard
Color correction coefficient	K=0.98—1.02 (400-760nm wavelength)
External dimensions	98L80W24H(mm)
weight	≈180g
