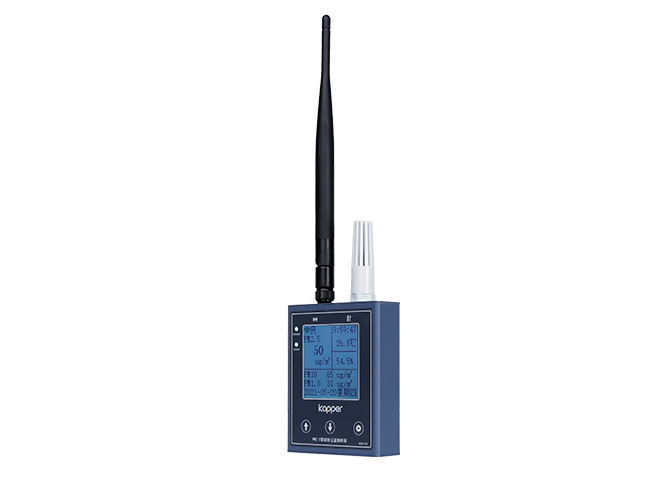

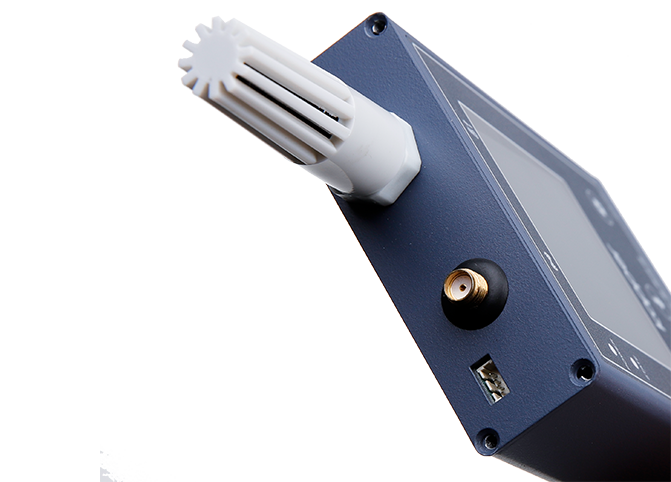

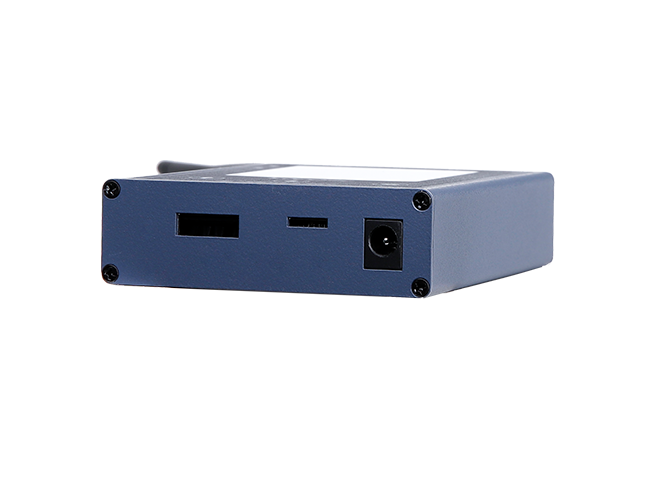

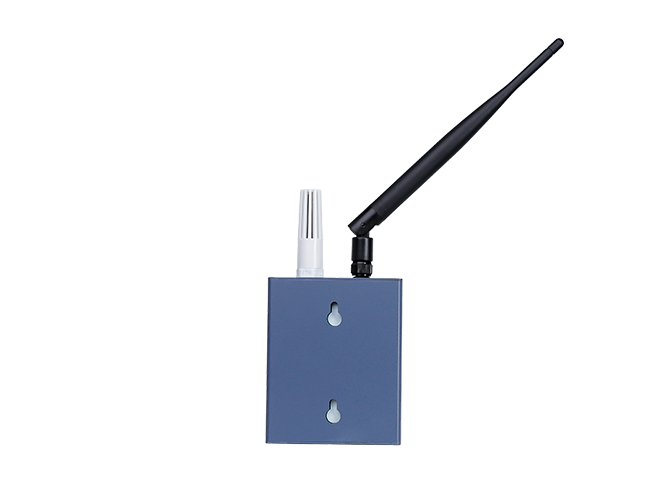

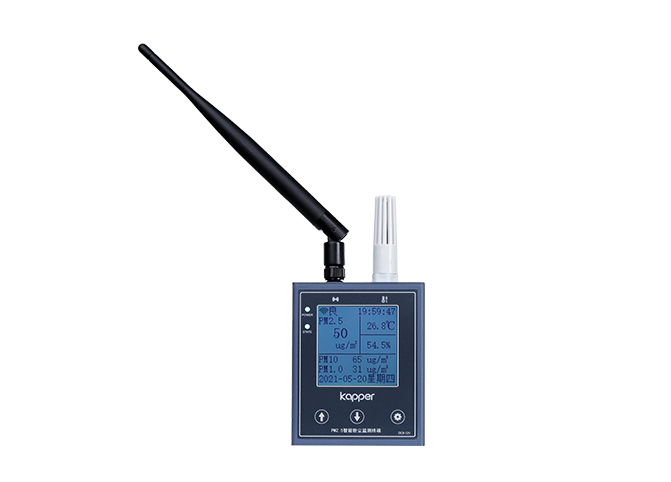

PM2.5 intelligent dust monitoring terminal

Model: KP204

Application areas

Electronics, photoelectrics, semiconductors

PM2.5 intelligent dust monitoring terminal

PM2.5 intelligent dust monitoring terminal

PM2.5 intelligent dust monitoring terminal

PM2.5 intelligent dust monitoring terminal

PM2.5 intelligent dust monitoring terminal

Product Overview

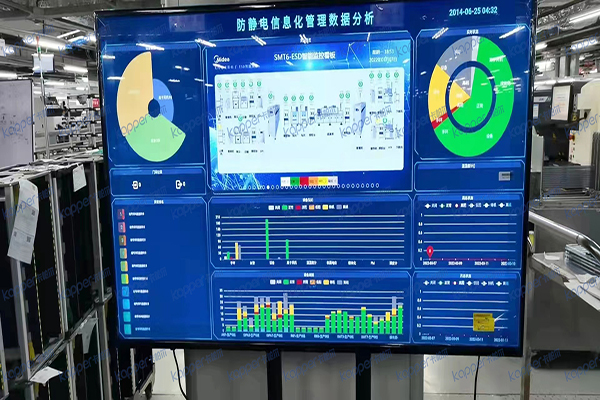

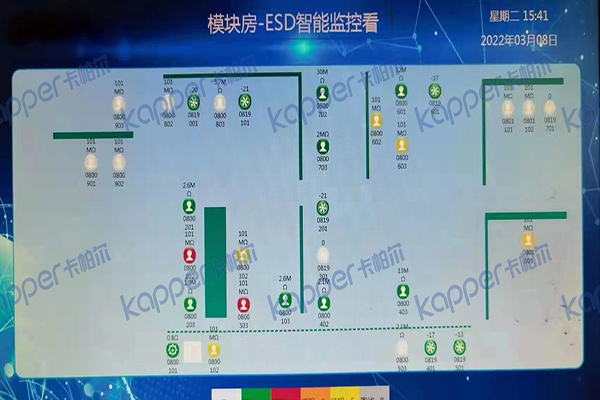

Monitoring Kanban installation.jpg Monitoring board 1.jpg

Features

1. Support WIFI2.4G/5G dual-band network transmission

2. Real-time monitoring of environmental particulate matter concentration and temperature and humidity

3. Built-in air intake, small in size, more convenient installation

4. ESD system, data collection, data storage and report analysis

5. Industrial-grade core devices, can run online for 10,000+ hours

6. Accurately detect the mass concentration of PM1.0, PM2.5, PM10, and TSP particles

Technical parameters

enter	DC12V/1A
Working temperature range (indoor)	-20-60°C
Maximum power consumption	3W
Working humidity range indoor)	0~99% (no condensation)
Particle measurement range	03~10um;10~25um;25-10um
Effective range of particulate mass concentration (PM2.5 standard value)	0~500ug/m3
Maximum range of particulate mass concentration (PM2.5 standard value)	≥1000ug/m3
Particle mass concentration resolution	1ug/m3
Volume mm)	98L80W24H(mm)
Weight (g)	≈203g
