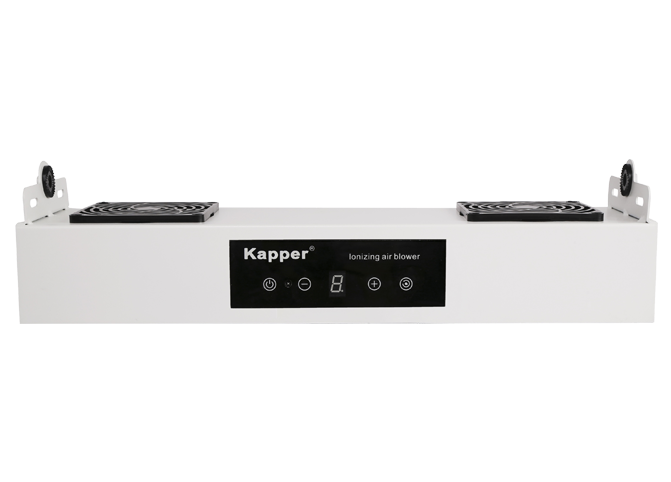

The 5th generation intelligent suspended double-head ion fan
Model: KP102A
Application areas
Product Overview
KP102A 5th generation intelligent model Suspended double-head ion fan It is a newly developed and produced by Kapal Company to eliminate static electricity on the surface of objects.
KP102A 5th generation intelligent model Suspended double-head ion fan A large amount of air flow with positive and negative charges can be generated, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.
KP102A 5th generation intelligent model Suspended double-head ion fan The wind power is provided by a small fan. The wind power can be adjusted in the touch button or remote control. The transmitter brush has an automatic cleaning function, which automatically memorizes and cleans automatically every 8 hours, and does not clean manually. It can also be customized and sets the cleaning time. It has high-pressure fault wind alarm and alarm light prompt functions. It has dual intuitive understanding of whether the equipment is working normally. When the fan encounters obstacles during normal operation, the wind will automatically short-circuit and stop working.
KP102A 5th generation intelligent suspended double-head ion fan is used in precision electronics, pharmaceutical manufacturing, plastics, optoelectronics and other industries.
Features
1. Intelligent and modern, with exquisite appearance, fine production and novel design.
2. Automatic cleaning function of the launch needle brush, automatic memory, and no manual cleaning.
3. Remote control: Touch dual control power supply to start to adjust the wind power.
4. It has high-voltage fault wind alarm and alarm light prompt function, and the auditory and visual dual intuitive understanding of whether the equipment is normal
Work.
5. Remote control lock screen locks the wind speed, workshop Ion fan Standardize the removal of static electricity.
6. If the fan encounters obstacles during normal operation, the wind will automatically short-circuit and stop working.
7. Fast destatic electricity, low balance voltage, and high safety performance.
8. Energy-saving and environmentally friendly, low power consumption.
Technical parameters
control Panel | LED digital display | Wind speed gear (locked, anti-stupid) |
Automatic cleaning button | Automatic cleaning every 8 hours (can be designed for 0-8 hours by yourself) (locking, anti-dust) | |
Fault alarm | The wind sounds/the indicator light is blinking red | |
Touch the button to adjust the speed | Remote control/touch dual control (locking, anti-dust) | |
Wind speed gear | Remote control/touch dual control (locking, anti-dust) | |
Power start | Remote control/touch dual control (locking, anti-dust) | |
One-click screen lock | Remote control (locking, anti-dust) | |
power supply | Power supply intelligent frequency converter AC 220V/filtered anti-interference | DC intelligent control system/fan DC12V |
The socket is wired on the back | / | |
Appearance | Fixed method | The angle has anti-dust function, and special tools are required to adjust the angle |
Material | Cold rolled plate | |
surface | Electrostatic spray paint | |
ribbon | Available | |
Front plastic air window | Freely disassembled | |
Rear plastic air window | Optional filter | |
Case grounding | No leakage (safety) | |
Ears included (stents not included) size | 550mm(L)*150mm(W)*130mm(H) | |
Electrostatic facilities | Automatic cleaning of discharge needle | / |
Discharge needle material | Tungsten alloy, non-removable (lifetime > 3 years) | |
Discharge time | ≤2S (300MM away from the product) | |
Ion equilibrium | ≤±|10V|(300MM away from the product) | |
Power connection method | Frequency converter AC 5.0KV | |
Effective control radius of 300mm | 300MM away from the product | |
Fan | Fan air volume ≤5.1m3/min | 300MM away from the product |
Power | 10W | |
Working distance | 100－600mm | |
Operating temperature | 0-50℃ | |
Working humidity | 56%-65% | |
Air output | 80-220CFM | |
Noise | 45-60dB | |
net weight | About 4.5kg | |
Gross weight | About 5.2kg | |
other | One year warranty | |
Test results
Test conditions | |||||
Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | |||||
distance | 300mm | 600mm | |||
Neutralization time | just | 0.8s | 1.1S | ||
burden | 0.8s | 1.2S | |||
Residual voltage | just | +5v | +8v | ||
burden | -6v | -8v | |||
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The data tested will vary depending on the temperature and humidity changes around it.
Remote Control Function

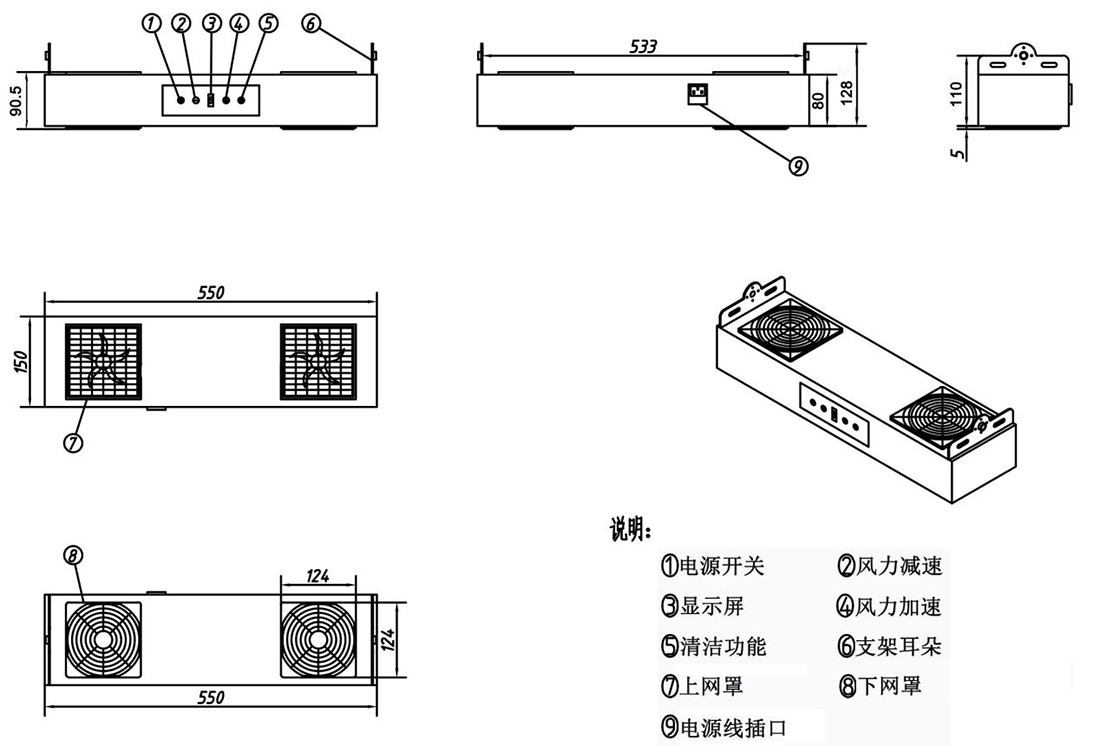

External dimensions

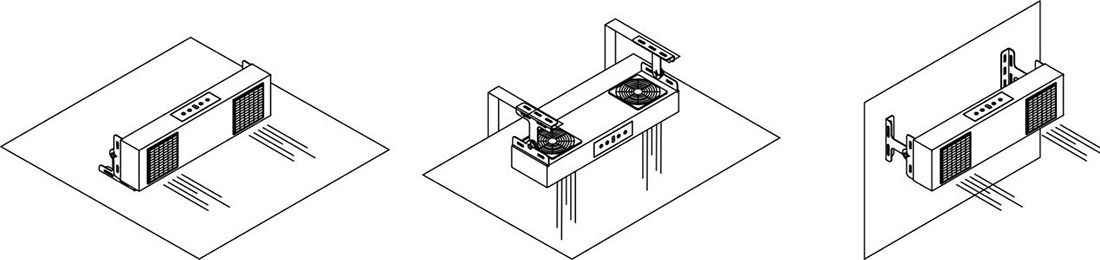

Installation method
