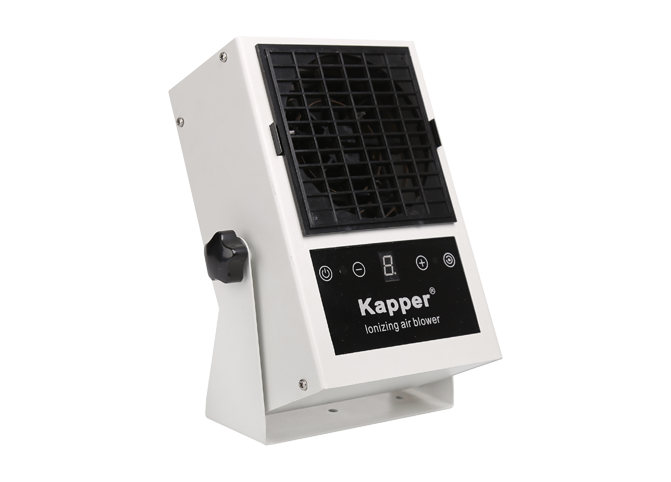

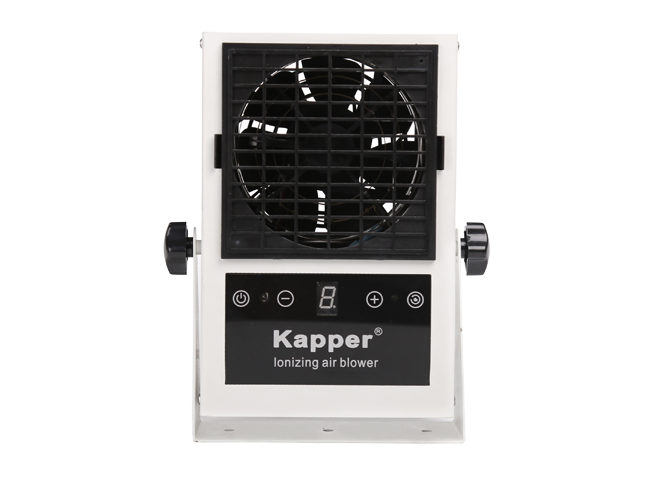

The 5th generation intelligent desktop ion fan
Model: KP101B
Application areas
Product Overview
The 5th generation intelligent desktop ion fan of KP101B is the latest intelligent electrostatic removal device developed and produced by Kapal to eliminate static electricity on the surface of objects.
The 5th generation smart desktop ion fan of KP101B can generate a large amount of air flow with positive and negative charges, which can neutralize the charge carried on objects. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.
The 5th generation intelligent desktop ion fan of KP101B is provided with wind power by a small fan. The wind power can be adjusted in touch buttons or remote control. The transmitter brush has an automatic cleaning function, which automatically memorizes and cleans automatically every 8 hours, and does not clean manually. It can also be customized and sets the cleaning time by itself. It has high-pressure fault wind alarm and alarm light prompt functions. It has dual intuitive understanding of whether the equipment is normal. When the fan encounters obstacles during normal operation, the wind will automatically short-circuit and stop working.
KP101B's fifth generation intelligent desktop ion fan is used in precision electronics, pharmaceutical manufacturing, plastics, optoelectronics and other industries.
Features
1. Intelligent and modern, with exquisite appearance, fine production and novel design.
2. Automatic cleaning function of the launch needle brush, automatic memory, and no manual cleaning.
3. Remote control and touch dual control power supply start to adjust the wind power.
4. It has high-voltage fault wind alarm and alarm light prompt function, and the auditory and visual dual intuitive understanding of whether the equipment is normal
Work.
5. The remote control lock screen locks the wind speed, and the workshop ion fan eliminates static electricity to achieve standardization.
6. If the fan encounters obstacles during normal operation, the wind will automatically short-circuit and stop working.
7. Fast destatic electricity, low balance voltage, and high safety performance.
8. Energy-saving and environmentally friendly, low power consumption.
Technical parameters
control Panel | LED digital display | Wind speed gear (locked, anti-stupid) |
Automatic cleaning button | Automatic cleaning every 8 hours (can be designed for 0-8 hours by yourself) (locking, anti-dust) | |
Fault alarm | The wind sounds/the indicator light is blinking red | |
Touch the button to adjust the speed | Remote control/touch dual control (locking, anti-dust) | |
Wind speed gear | Remote control/touch dual control (locking, anti-dust) | |
Power start | Remote control/touch dual control (locking, anti-dust) | |
One-click screen lock | Remote control (locking, anti-dust) | |

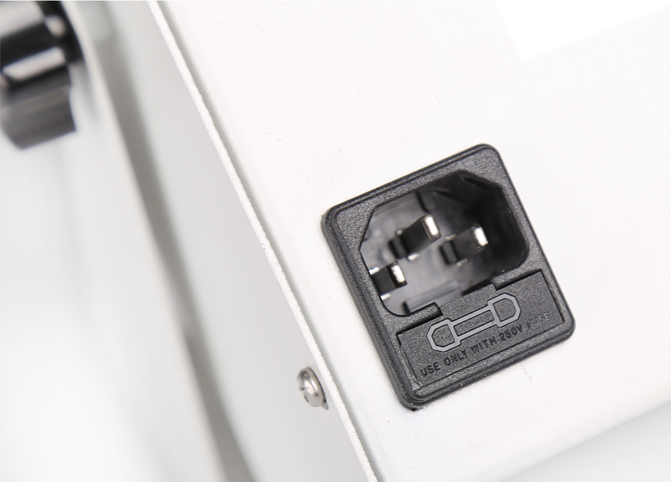

power supply | Power supply intelligent frequency converter AC 220V/filtered anti-interference | DC intelligent control system/fan DC12V |
The socket is wired on the back | / | |
Appearance | Fixed method | The angle has anti-dust function, and special tools are required to adjust the angle |
Material | Aluminum | |
surface | Electrostatic spray paint | |
ribbon | Available | |

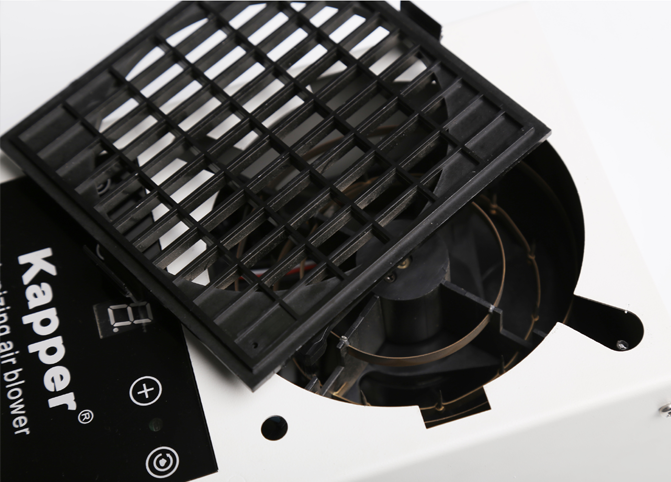

Front plastic air window | Freely disassembled | |
Rear plastic air window | Optional filter | |
Case grounding | No leakage (safety) | |
Ears included (stents not included) size | 146mm(L)*88mm(W)*222mm(H) | |
Electrostatic facilities | Automatic cleaning of discharge needle | / |
Discharge needle material | Tungsten alloy, non-removable (lifetime > 3 years) | |
Discharge time | ≤2S (300MM away from the product) | |
Ion equilibrium | ≤±|10V|(300MM away from the product) | |
Power connection method | Frequency converter AC 5.0KV | |
Effective control radius of 300mm | 300MM away from the product | |
Cleaning brush | Anti-static material, will not wear and will not lose hair | |
Fan | Fan air volume ≤5.1m3/min | 300MM away from the product |
Power | 8W | |
Working distance | 100－600mm | |
Operating temperature | 0-50℃ | |
Working humidity | 56%-65% | |
Air output | 45-130CFM | |
Noise | 45-55dB | |
net weight | About 2.0kg | |
Gross weight | About 2.6kg | |
other | One year warranty | |
Test results
Test conditions | ||||
Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | ||||
distance | 300mm | 600mm | ||
Neutralization time | just | 0.5s | 1.2s | |
burden | 0.6s | 1.3s | ||
Residual voltage | just | +5v | +8v | |
burden | -5v | -7v | ||
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The data tested will vary depending on the temperature and humidity changes around it.
Remote Control Function
Note: The remote control is a consumable and is not covered by the warranty.

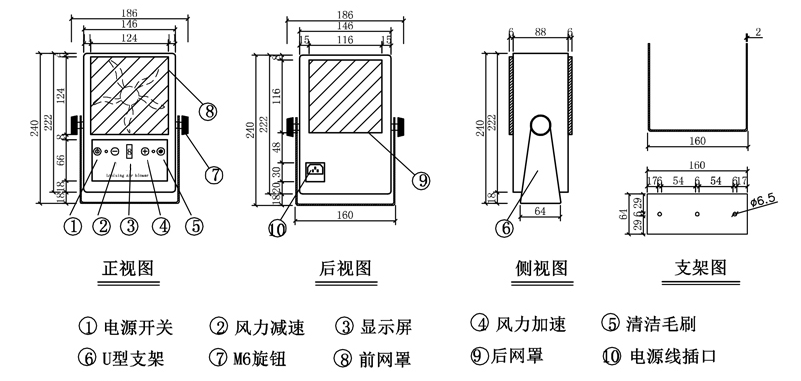

External dimensions

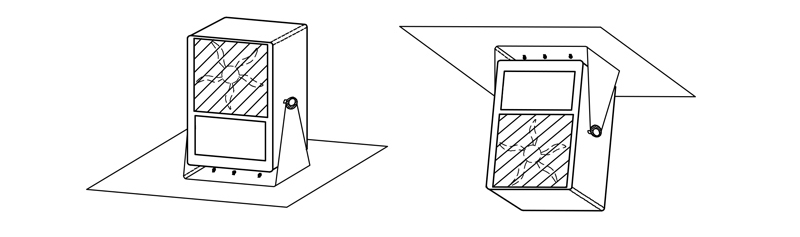

Installation method
