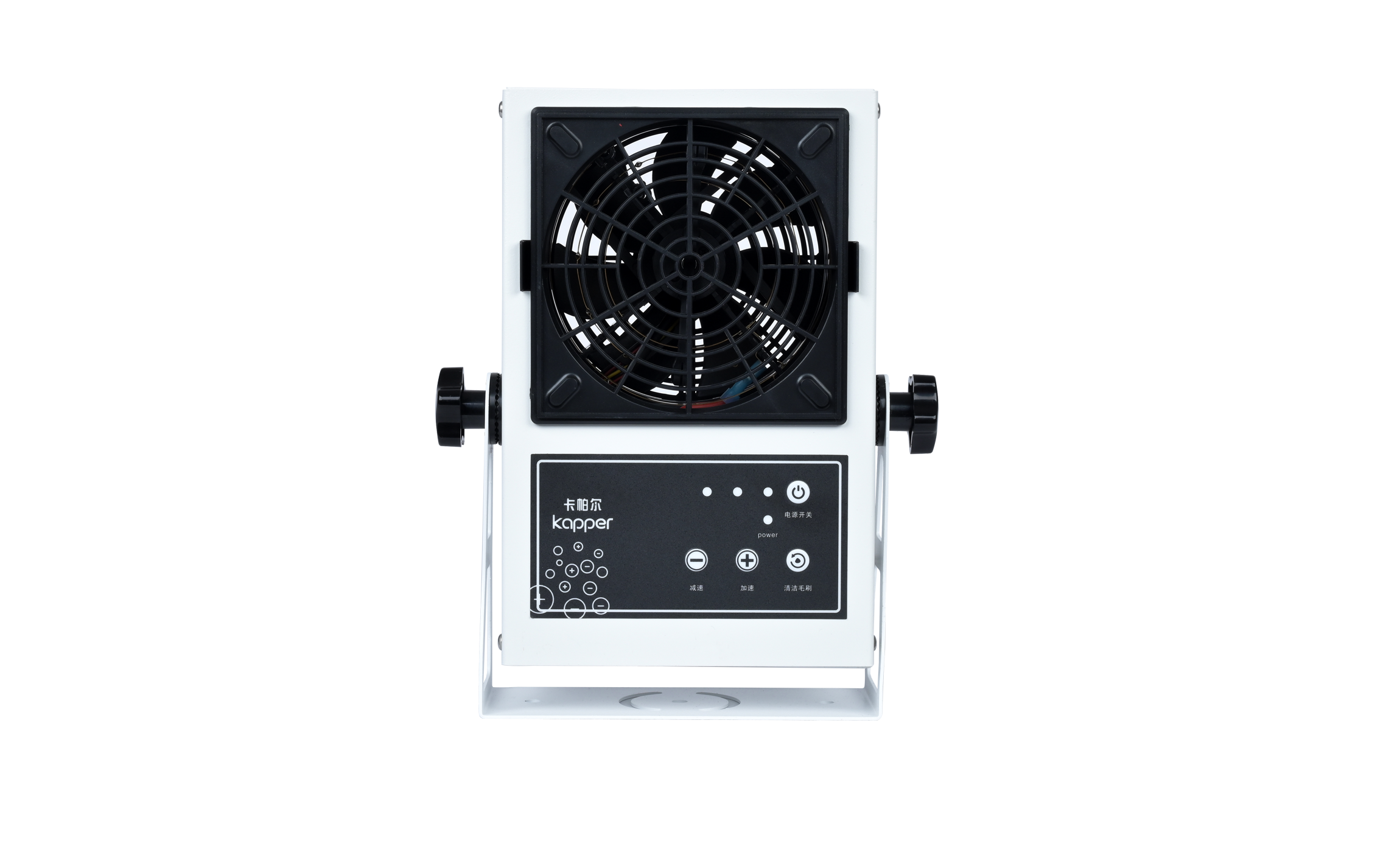

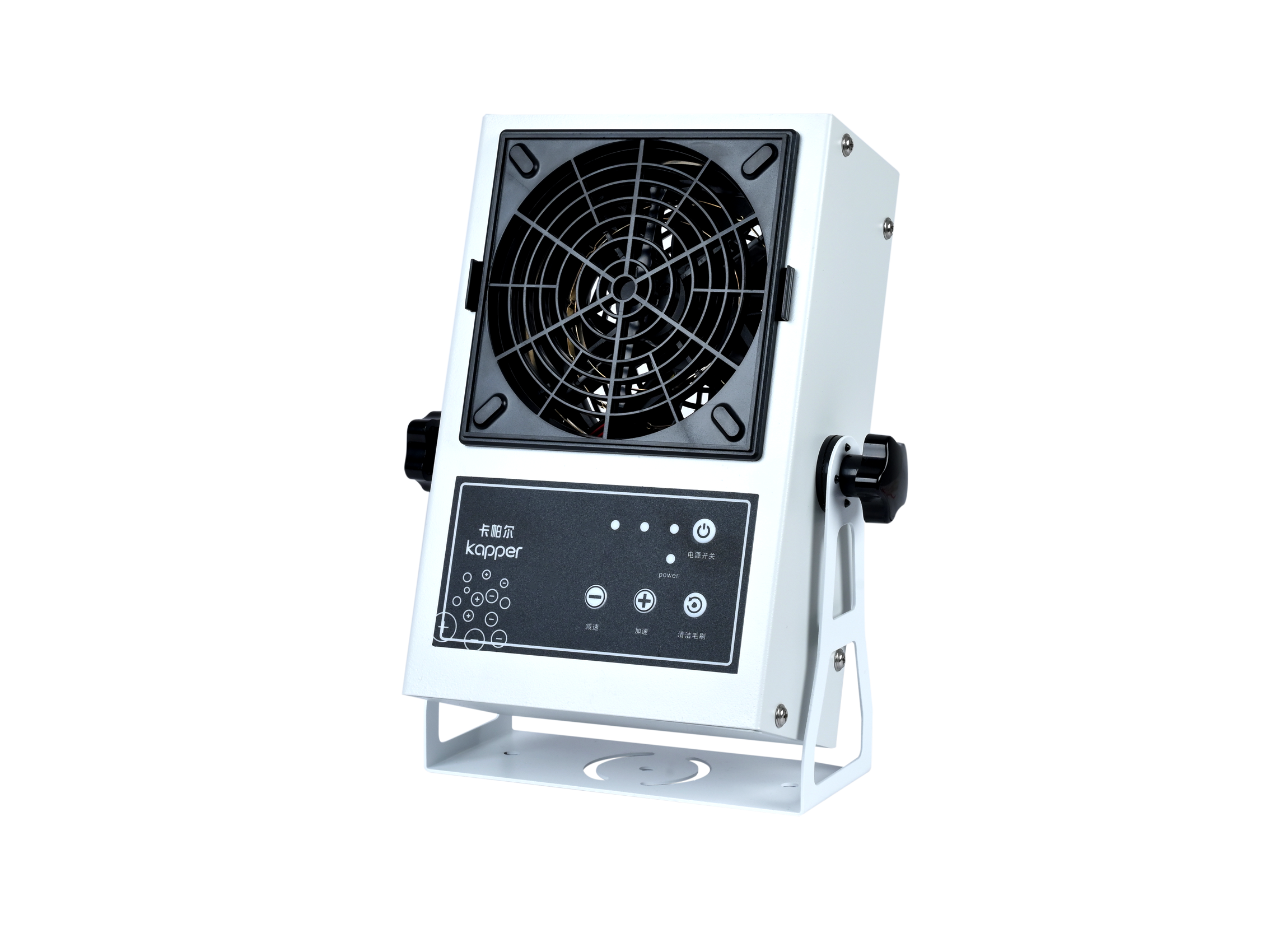

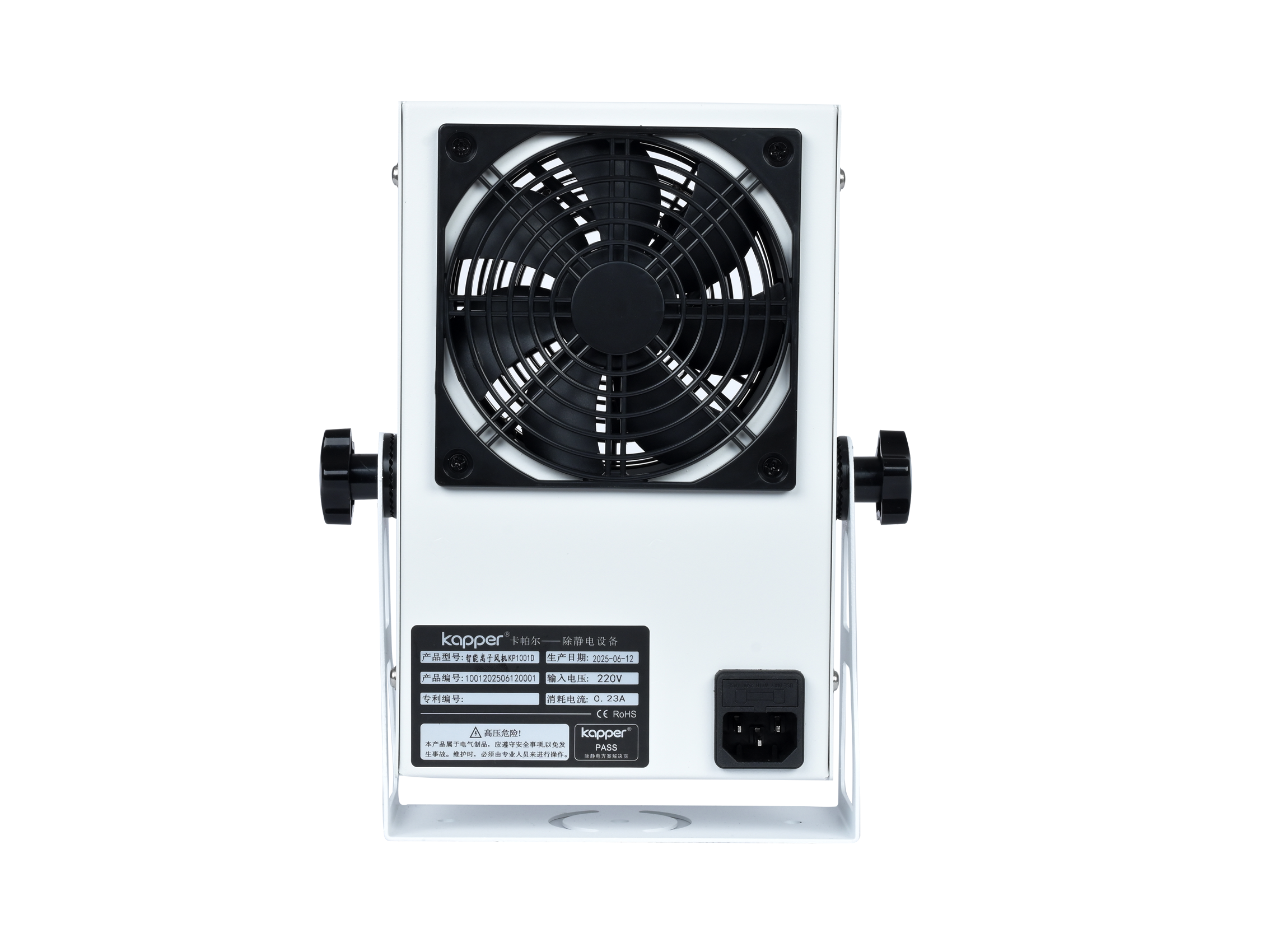

The fourth generation semi-intelligent desktop ion fan
Model: KP1001D
Application areas
Product Overview
KP1001D semi-intelligent desktop ion Fan yes Capal The company's latest development and production to eliminate static electricity on the surface of objects Intelligent remove quiet Electrical device.
KP1001D semi-intelligent desktop ion Fan A large amount of air flow with positive and negative charges can be generated, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.
KP1001D semi-intelligent Desktop Ion fan Depend on Small fan provides wind power. The wind power is OK On the key Make adjustments，The launch needle brush has automatic cleaning function, free of manual cleaning。
KP1001D semi-intelligent Desktop ion fan is used in precision electronics, medicine manufacture, plastic, Optoelectronics and other industries.
Features
1. Intelligent and modern, with exquisite appearance, fine production and novel design.
2. Automatic cleaning function of the launch needle brush, automatic memory, and no manual cleaning.
3. Press the button to control the power supply to start, adjust the wind power, and clean the ion needle.
4. Fast destatic electricity, low balance voltage, and high safety performance.
5. Energy-saving and environmentally friendly, low power consumption.
Technical parameters
Use voltage | 220V/ 50Hz |
Output voltage | AC 5.0KV |
achievement Rate | 10W |
Working distance | 100－600mm |
Ion equilibrium | ≤|±10V| |
Discharge time | ≤2S (Before the fan 300mm） |
Operating temperature | 0℃-40℃ |
Working humidity | ＜65% |
out wind quantity | 45-110CFM |
noise sound | 45-55dB |
net Heavy | about 2.0kg |
External dimensions | 148mm(L)*77mm(W)*225mm(H)(No bracket included) |
Housing material | Cold rolled plate |
surface noodle | Electrostatic spray paint |
Test results
Test conditions | |||
humidity:≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | |||
distance | 300mm | ||
Neutralization time | just | 0.8s | |
burden | 0.8s | ||
Residual voltage | just | +7v | |
burden | -8v | ||
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The test data will vary depending on the temperature and humidity changes around it。

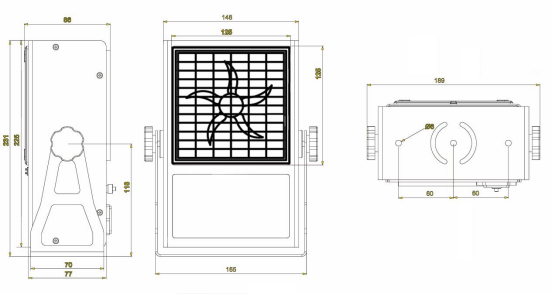

External dimensions
Installation method
