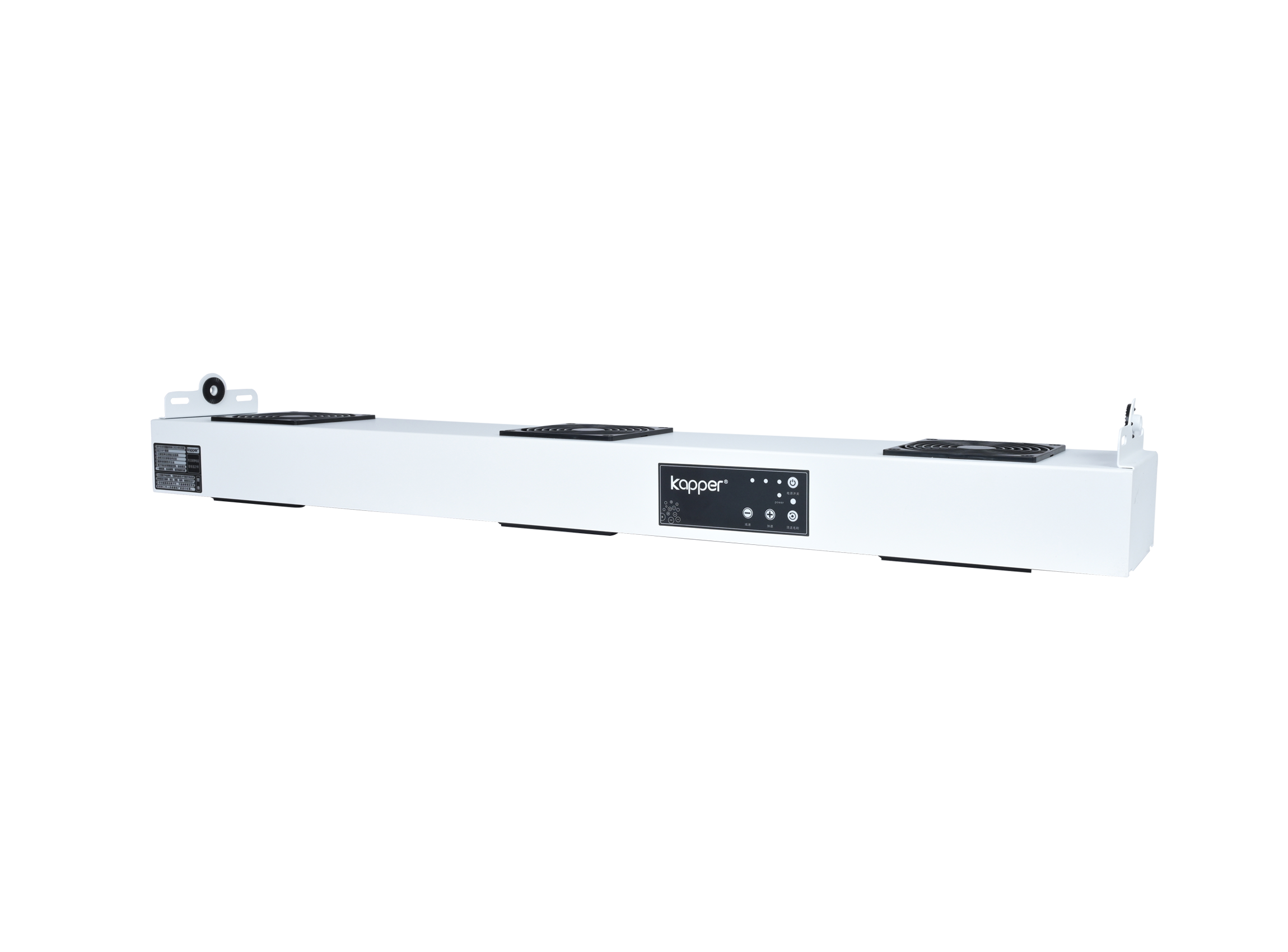

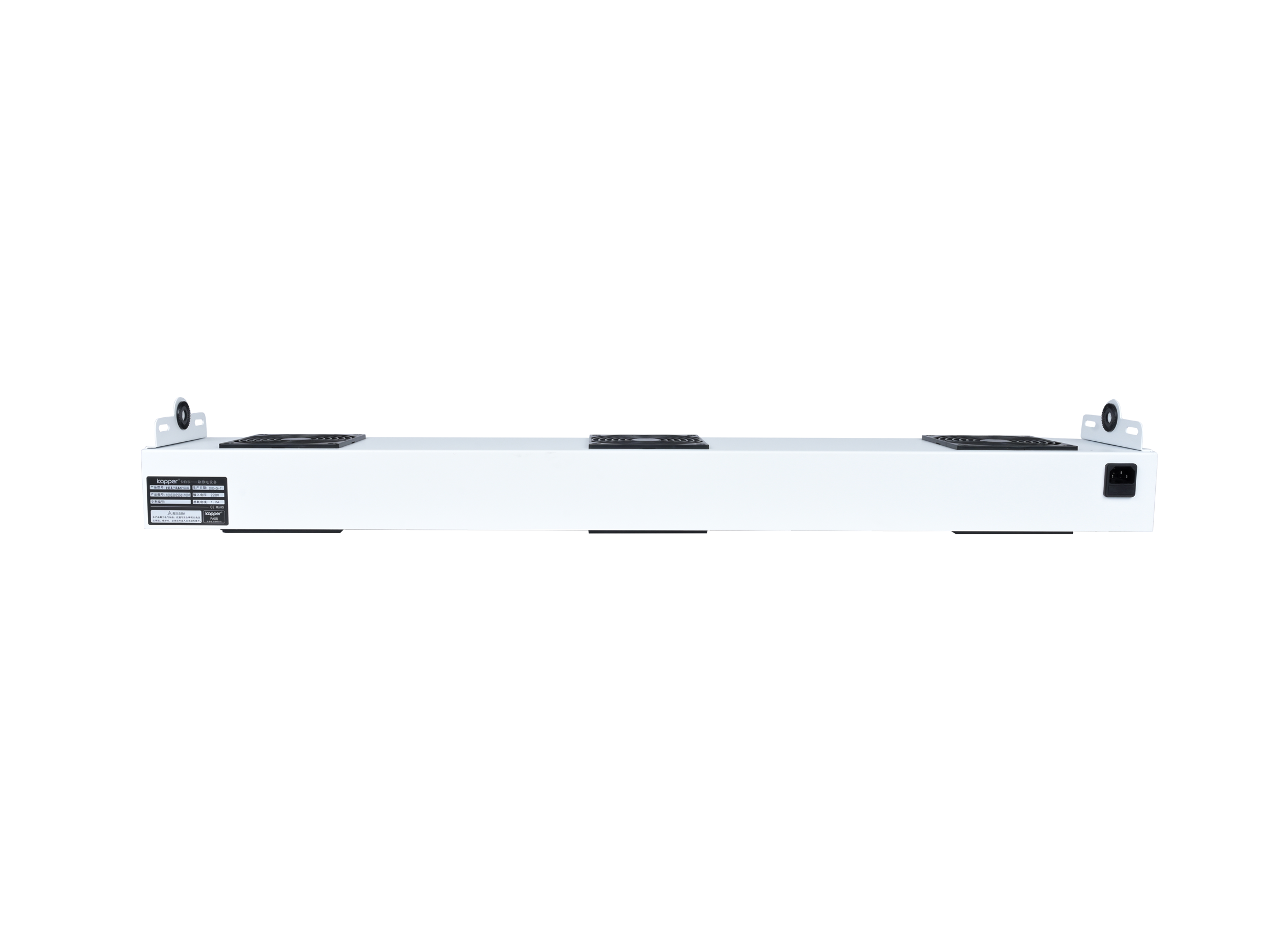

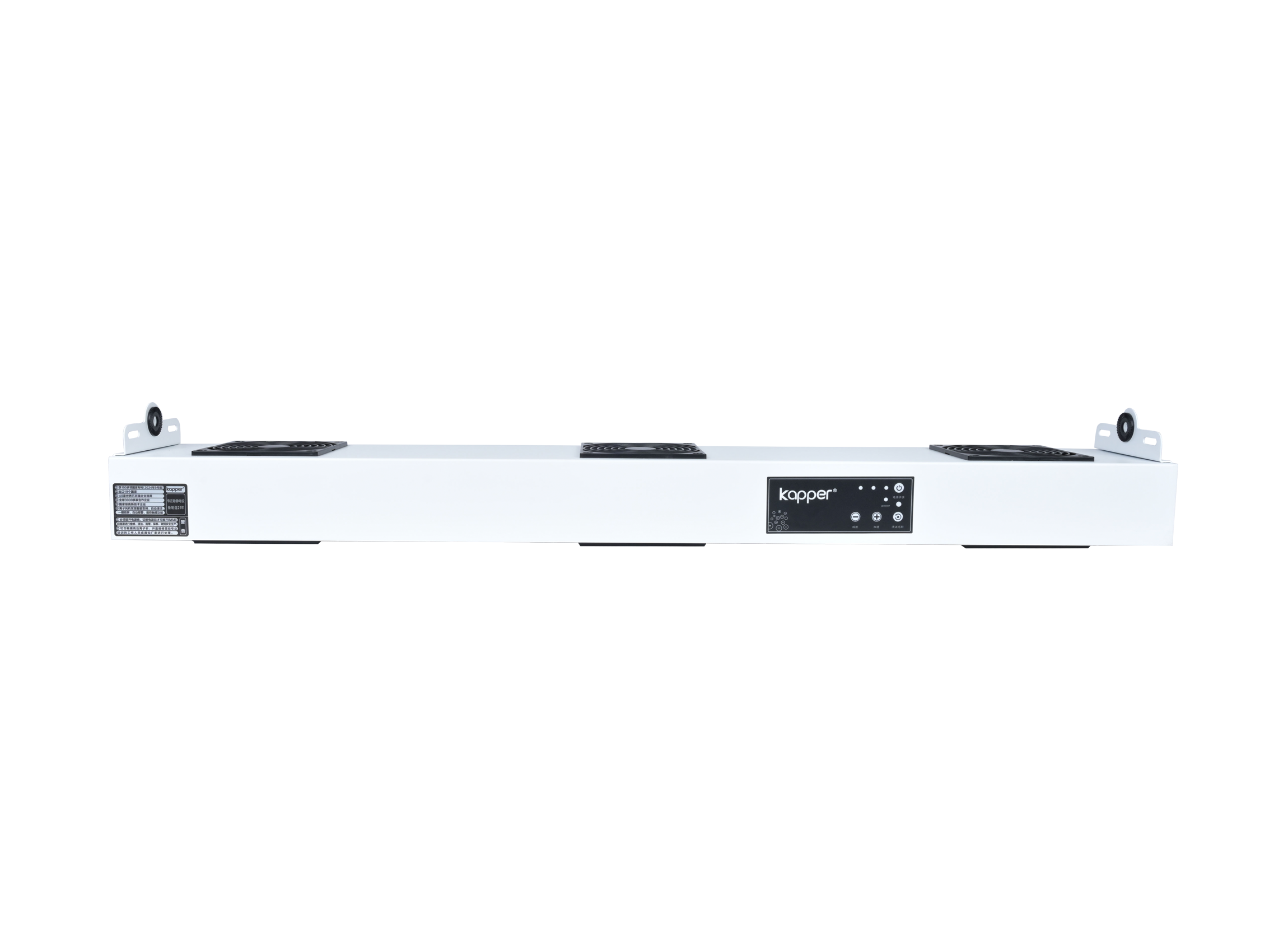

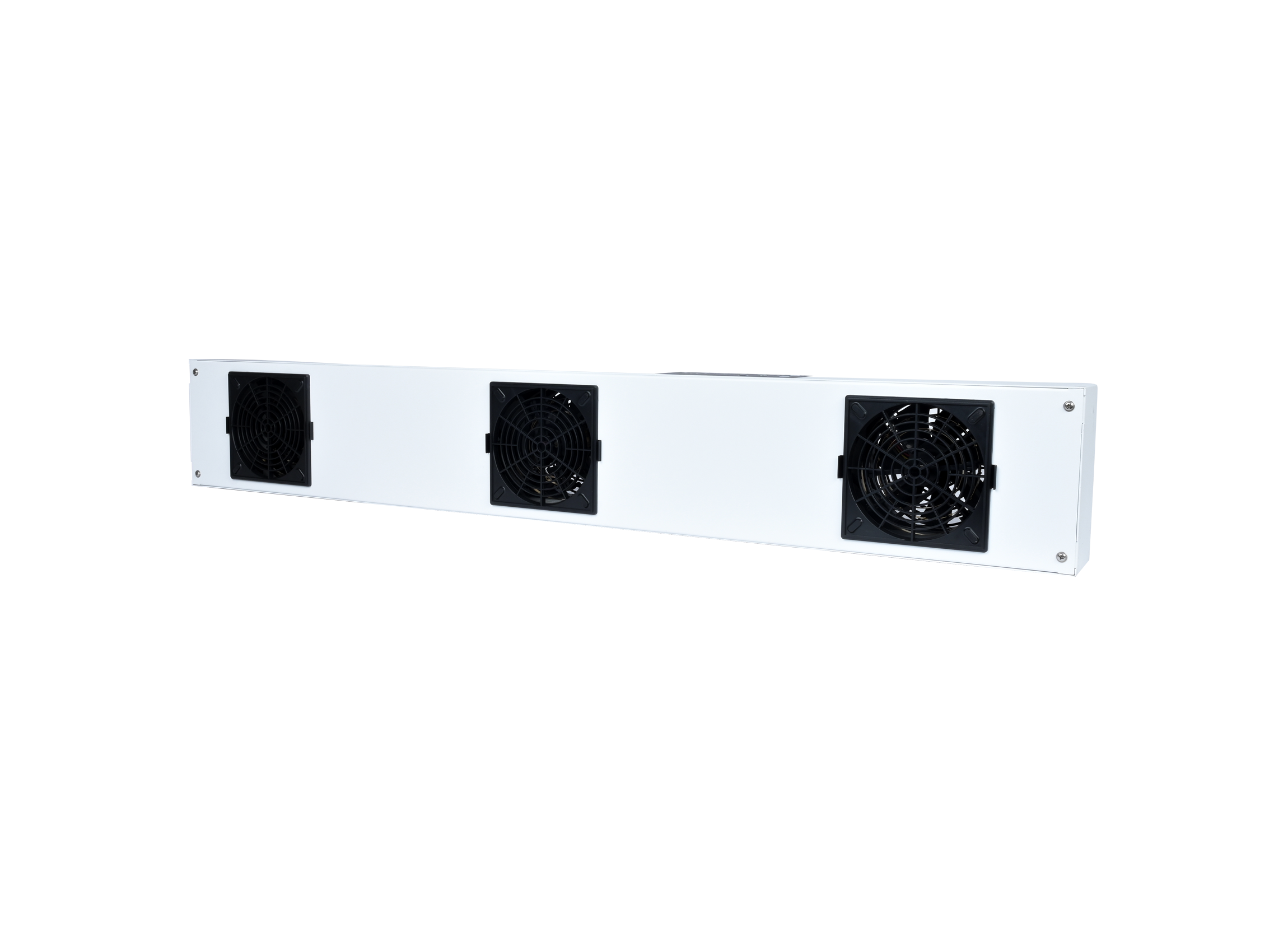

The fourth generation semi-intelligent suspension three-head ion fan

Model: KP1003D

The fourth generation of KP1003D semi-intelligent suspended three-head ion fan is an intelligent electrostatic removal device developed and produced by Kapal Company to eliminate static electricity on the surface of objects. The 4th generation semi-intelligent suspension three-head ion fan of KP1003D can generate a large amount of airflow with positive and negative charges, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will

Application areas

The fourth generation semi-intelligent suspension three-head ion fan

Product Overview

KP1003D 4th generation semi-intelligent suspension three-head ion fan yes Capal The company develops and produces to eliminate static electricity on the surface of objects Intelligent remove quiet Electrical device.

KP1003D 4th generation semi-intelligent suspension three-head ion fan A large amount of air flow with positive and negative charges can be generated, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.

KP1003D 4th generation semi-intelligent suspension three-head ion fan Depend on Small fan provides wind power, the wind power can be The speed control switch is within a large range Make adjustments.

KP1003D 4th generation semi-intelligent suspension three-head ion fan Applied to precision electronics、medicine manufacture、plastic、Optoelectronics and other industries.

Features

1. Intelligent and modern, with exquisite appearance, fine production and novel design.

2. Automatic cleaning function of the launch needle brush, automatic memory, and no manual cleaning.

3. Press the button to control the power supply to start, adjust the wind power, and clean the ion needle.

4. Fast destatic electricity, low balance voltage, and high safety performance.

5. Energy-saving and environmentally friendly, low power consumption.

Technical parameters

Use voltage	220V/ 50Hz
Output voltage	AC 5.0KV
achievement Rate	20W
Working distance	100－600mm
Ion equilibrium	≤\|±10V\|
Discharge time	≤2S (Before the fan 300mm）
Operating temperature	0℃-40℃
Working humidity	＜65%
out wind quantity	120-330CFM
noise sound	45-60dB
net Heavy	about6.1kg

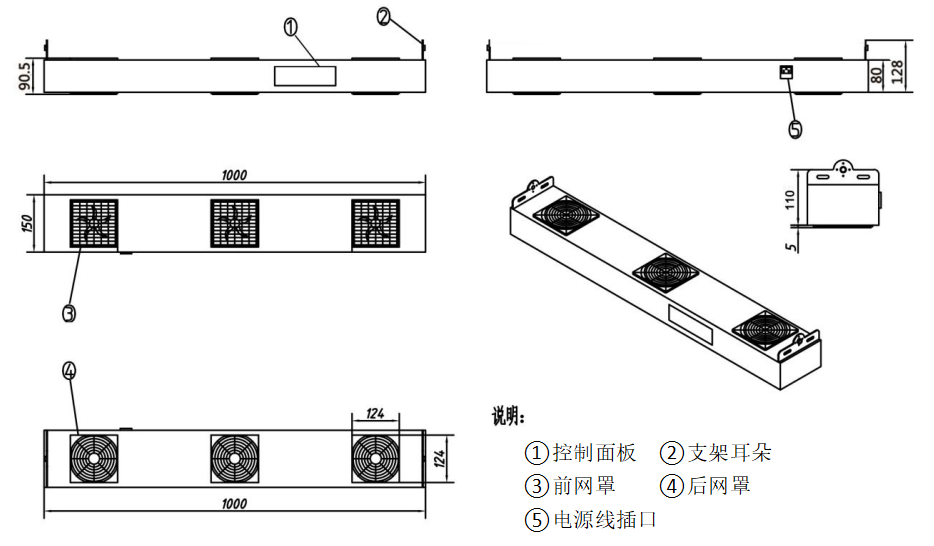

External dimensions	1000mm(L)150mm(W)80mm(H)( No Ears with brackets)
Housing material	Cold rolled plate
surface noodle	Electrostatic spray paint

Test results

Test conditions
humidity:≤60% Test voltage: 1KV-100V Ambient temperature: 22℃
distance	300mm
Neutralization time	just	0.8s
	burden	0.8s
Residual voltage	just	+6v
	burden	-6v

* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.

* Testing according to IEC-61340-4-1 A·6。

* The test data will vary depending on the temperature and humidity changes around it。
