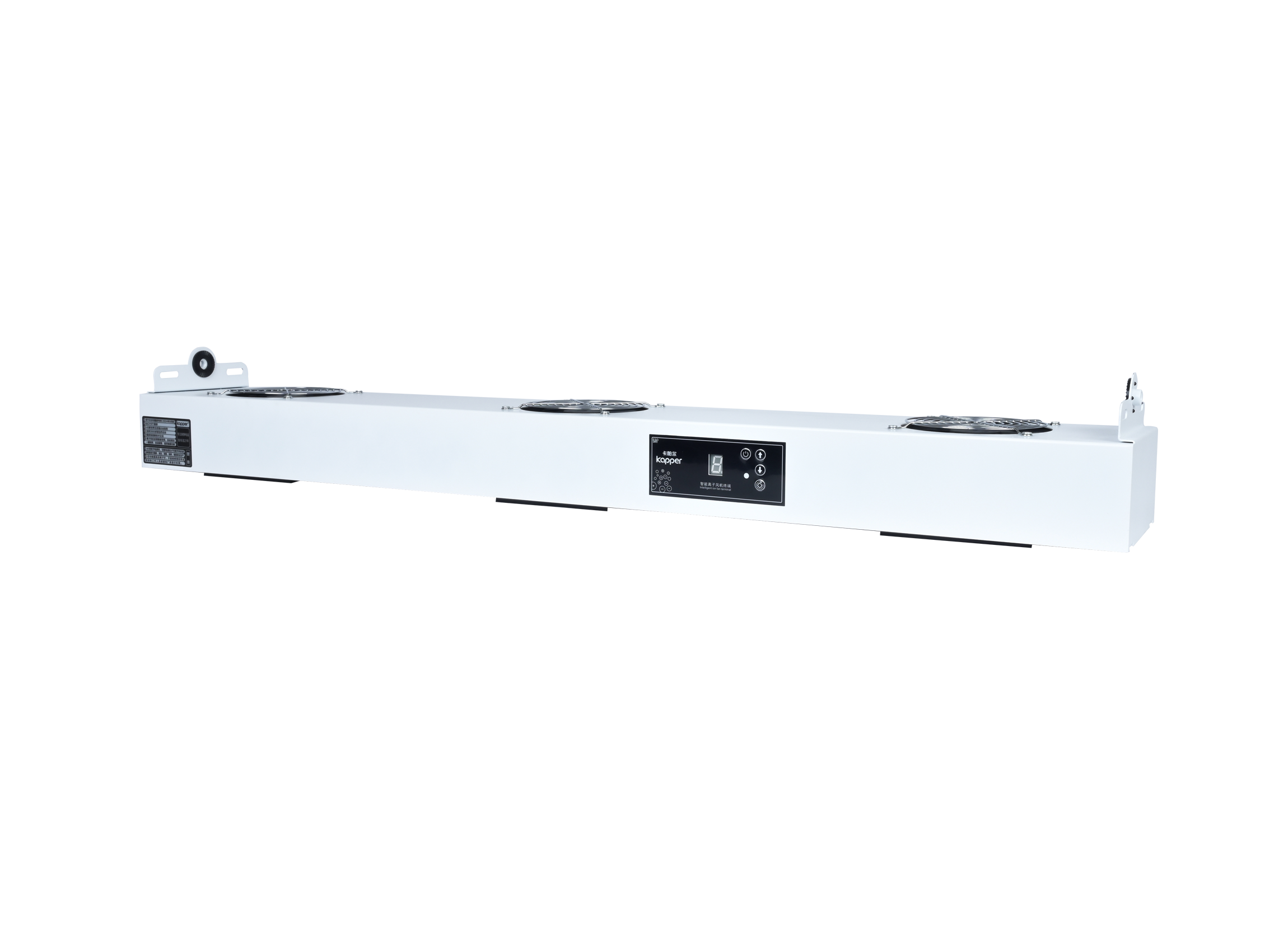

The 5th generation intelligent suspended DC three-head ion fan

Model: KP1103B

The 5th generation intelligent suspended DC three-head ion fan of KP1103B is an intelligent electrostatic removal device newly developed and produced by Kapal Company to eliminate static electricity on the surface of objects. The 5th generation intelligent suspended DC three-head ion fan of KP1103B can generate a large amount of air flow with positive and negative charges, which can neutralize the charge carried on the object. When the surface of the object is negatively charged
Application areas

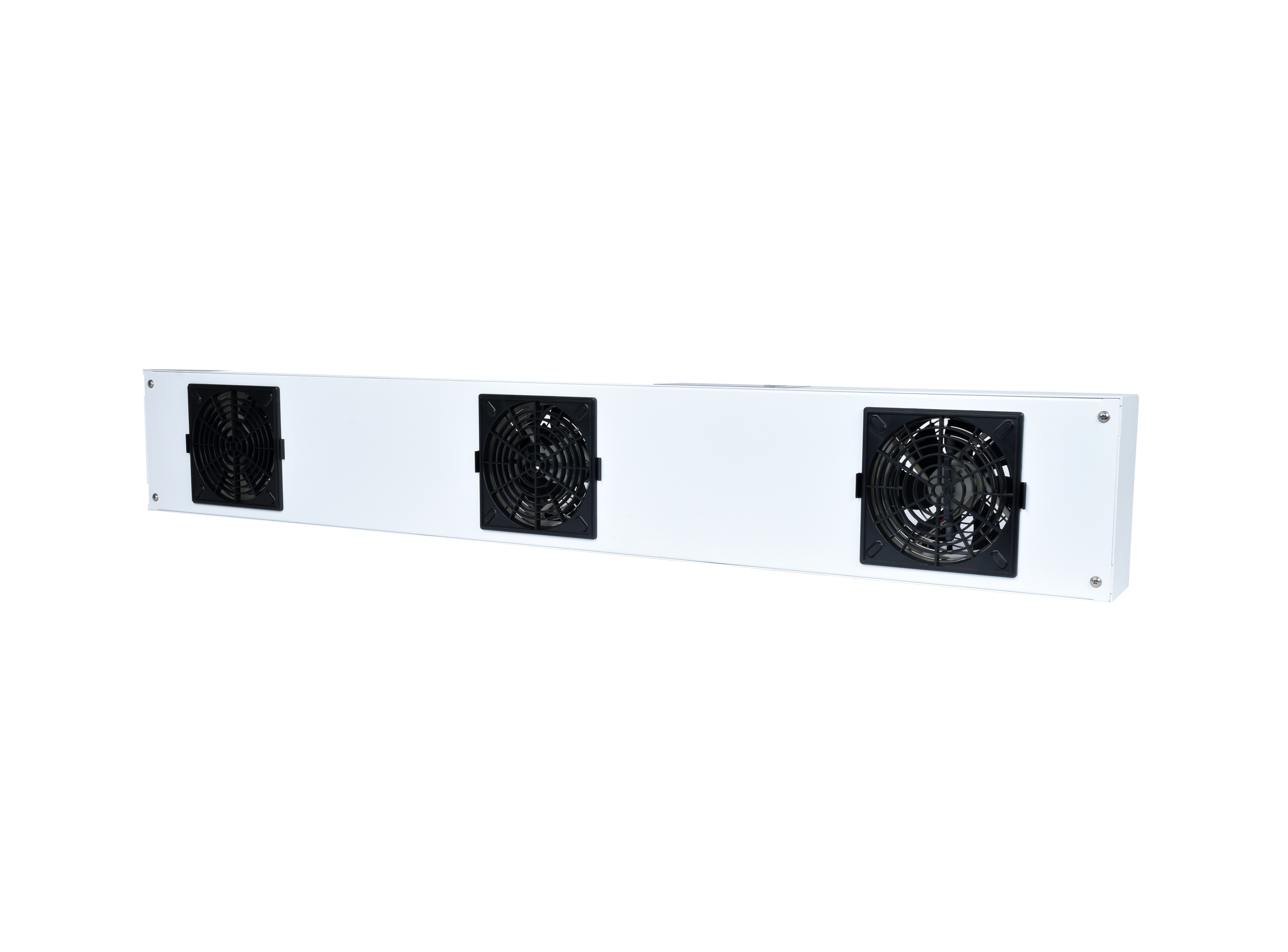

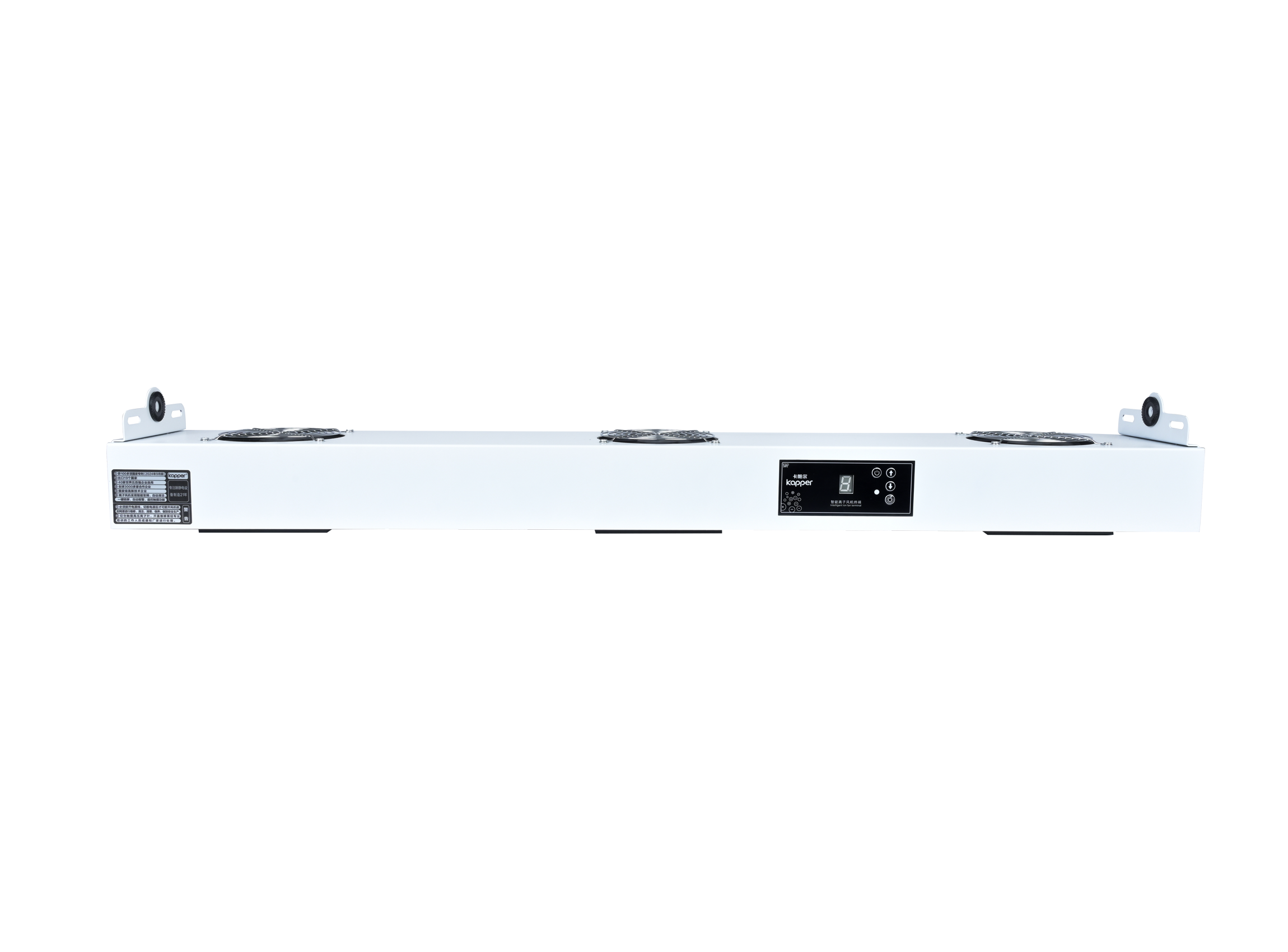

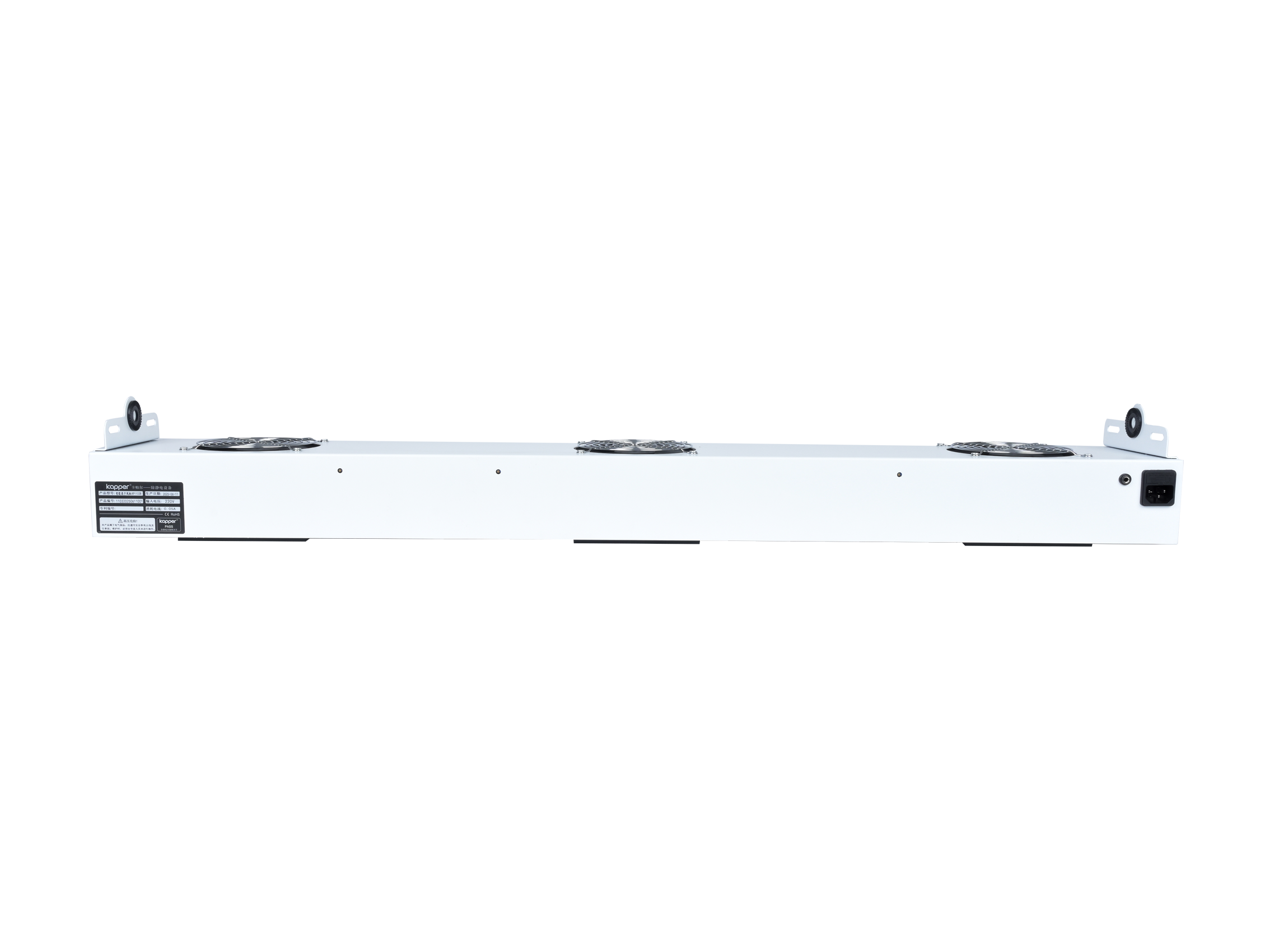

The 5th generation intelligent suspended DC three-head ion fan
The 5th generation intelligent suspended DC three-head ion fan
The 5th generation intelligent suspended DC three-head ion fan
The 5th generation intelligent suspended DC three-head ion fan

Product Overview

KP1103B The 5th generation intelligent suspension DC three-head ion fan yes Capal The company's newly developed and produced intelligent electrostatic removal device to eliminate static electricity on the surface of an object.

KP1103B The 5th generation intelligent suspension DC Three-head ion fan A large amount of air flow with positive and negative charges can be generated, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.

KP1103B 5th generation intelligent suspension type DC The three-head ion fan is provided with wind power by a small fan. The wind power can be adjusted in the touch button or remote control. The transmitter brush has automatic cleaning function every time. Automatic memory and automatic cleaning for 8 hours, free of manual cleaning, and can be customized and set the cleaning time by yourself. It has high-voltage fault wind alarm and alarm light prompt functions, and dual auditory and visual intuitive understanding of whether the equipment is working normally. When the fan encounters obstacles during normal operation, the wind will automatically short-circuit and stop working.

KP1103B 5th generation intelligent suspension type DC Three-head ion fan is used in precision electronics, pharmaceutical manufacturing, plastics, optoelectronics and other industries.


Features

1. Intelligent and modern, with exquisite appearance, fine production and novel design.

2. Automatic cleaning function of the launch needle brush, automatic memory, and no manual cleaning.

3. Remote control: Touch dual control power supply to start to adjust the wind power.

4. It has high-voltage fault wind alarm and alarm light prompt functions, and has dual auditory and visual intuitive understanding of whether the equipment is working normally.

5. The remote control lock screen locks the wind speed, and the workshop ion fan eliminates static electricity to achieve standardization.

6. If the fan encounters obstacles during normal operation, the wind will automatically short-circuit and stop working.

7. Fast destatic electricity, low balance voltage, and high safety performance.

8. Energy-saving and environmentally friendly, low power consumption.

9. The ionic equilibrium is adjustable.


Technical parameters

control Panel

LED digital display

Wind speed gear (locked, anti-stupid)

Automatic cleaning button

Every other Automatic cleaning for 8 hours (can be designed for 0-8 hours by yourself) (locking, anti-dust)

Fault alarm

The sound of the wind sounds /The indicator light is blinking red

Touch the button to adjust the speed

remote control /Touch dual control (locking, anti-dust)

Wind speed gear

remote control /Touch dual control (locking, anti-dust)

Power start

remote control /Touch dual control (locking, anti-dust)

One-click screen lock

Remote control (locking, anti-dust)

power supply

Power supply intelligent DC DC 12V/filtered anti-interference

DC intelligent control system/fan DC12V

The socket is wired on the back

/

Appearance

Fixed method

Angle has anti-dust function

Material

Cold rolled plate

surface

Electrostatic spray paint

ribbon

Available

Front plastic air window

Freely disassembled

Rear plastic air window

Optional filter

Case grounding

No leakage (safety)

No bracket size included

1000mm(L)*150mm(W)*80mm(H)

Electrostatic facilities

Automatic cleaning of discharge needle

/

Discharge needle material

Tungsten alloy

Discharge time

2S (300MM away from the product)

Ion equilibrium

≤±|10V|(300MM away from the product)

Effective radius control by destatic electrostatic control 300mm

Distance product 300MM

Fan

Fan air volume5.1m3/min

Distance product 300MM

achievement    Rate

13W

Working distance

100600mm

Operating temperature

0-50

Working humidity

30%-70%

out wind quantity

120-330CFM

noise    sound

40-60dB

net    Heavy

about 6.2kg

Gross weight

about 7.0kg

other

One year warranty


Test results

Test conditions

humidity:≤60%         Test voltage: 1KV-100V Ambient temperature: 22℃

distance

300mm

Neutralization time

just

0.6s

burden

0.7s

Residual voltage

just

+5v

burden

-6v

* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.

* Testing is based on IEC-61340-5-1 A·6.

* The data tested will vary depending on the temperature and humidity changes around it.


Remote Control Function

Lock screen without lighting remote control.png

Note: The remote control is a consumable and is not covered by the warranty.

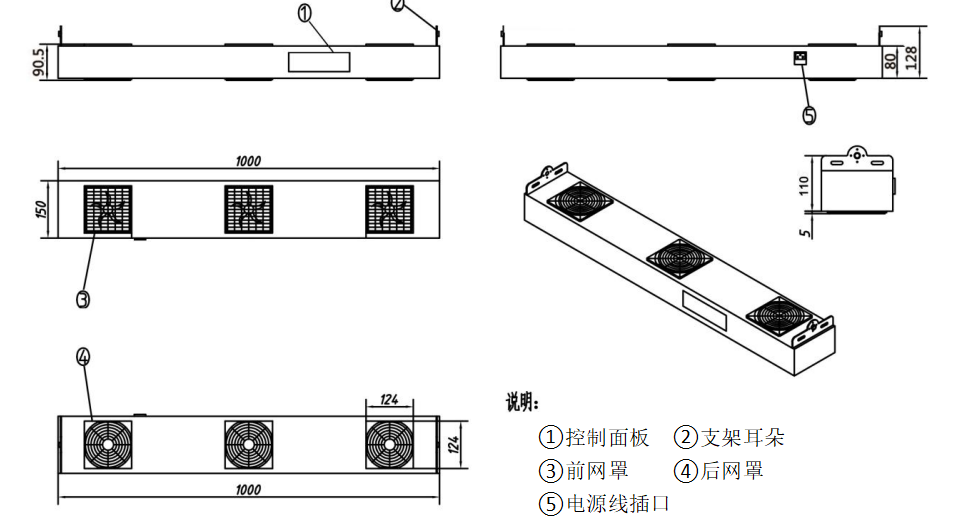

External dimensions


Installation method

Picture 1.png
