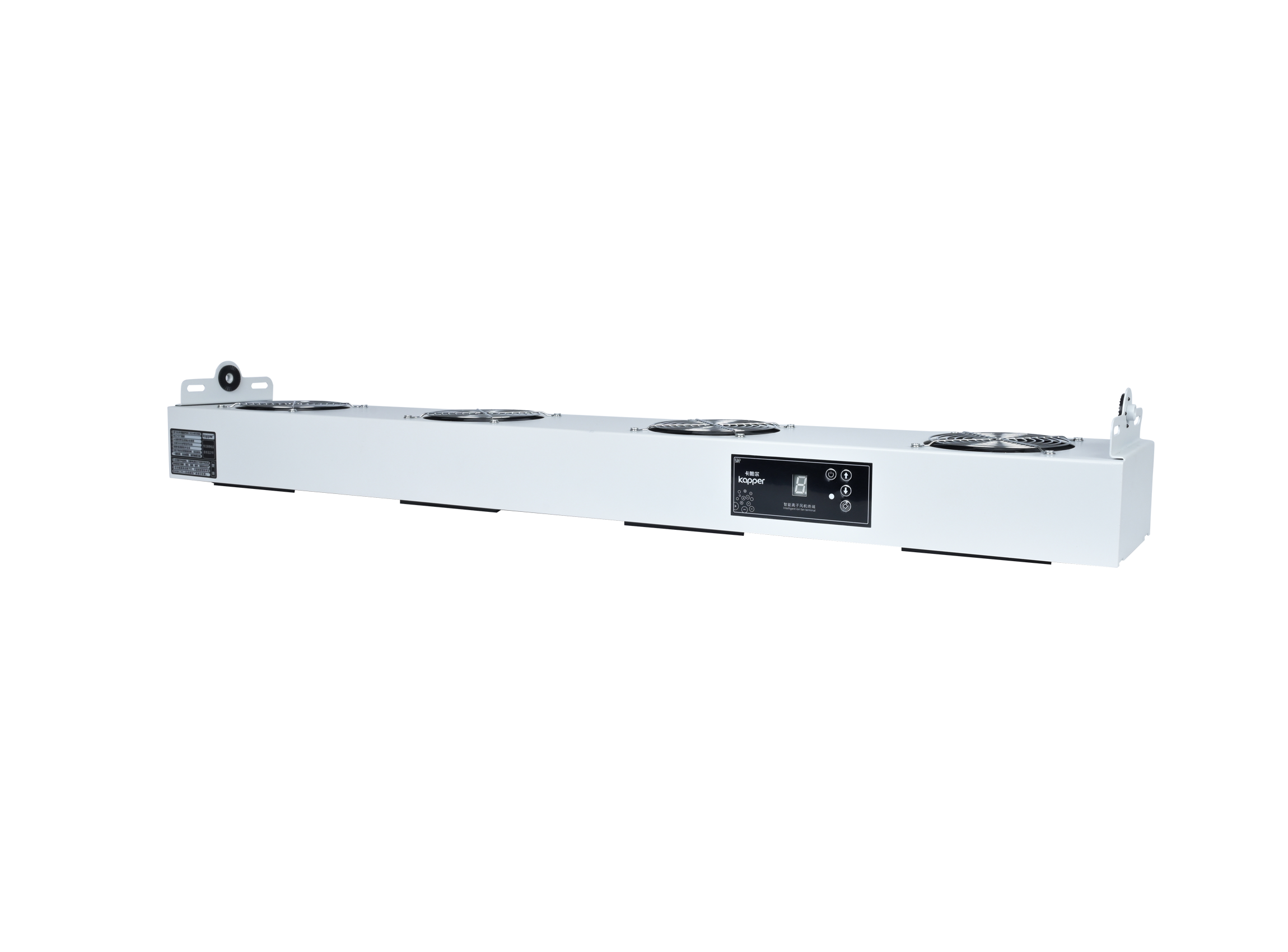

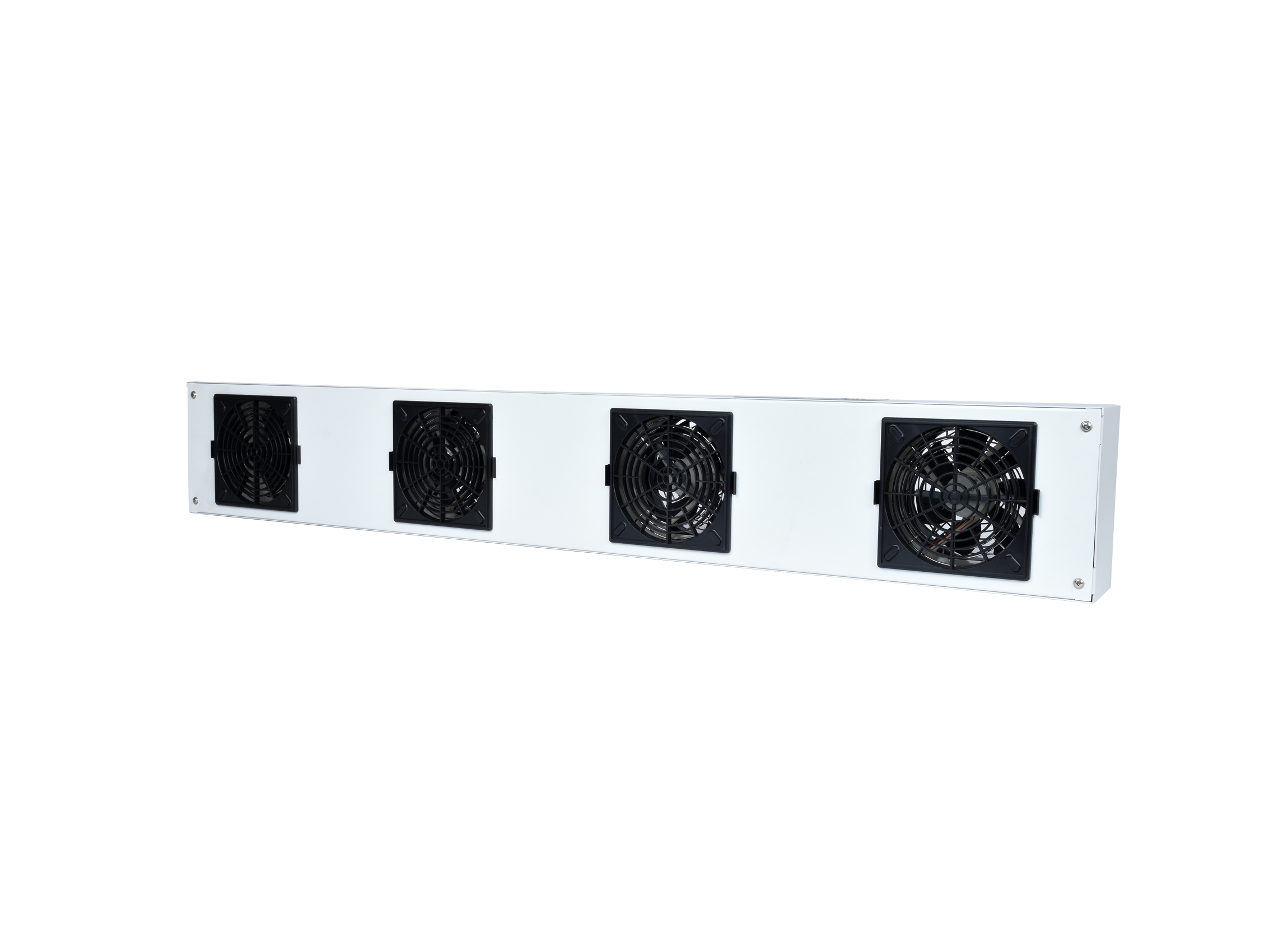

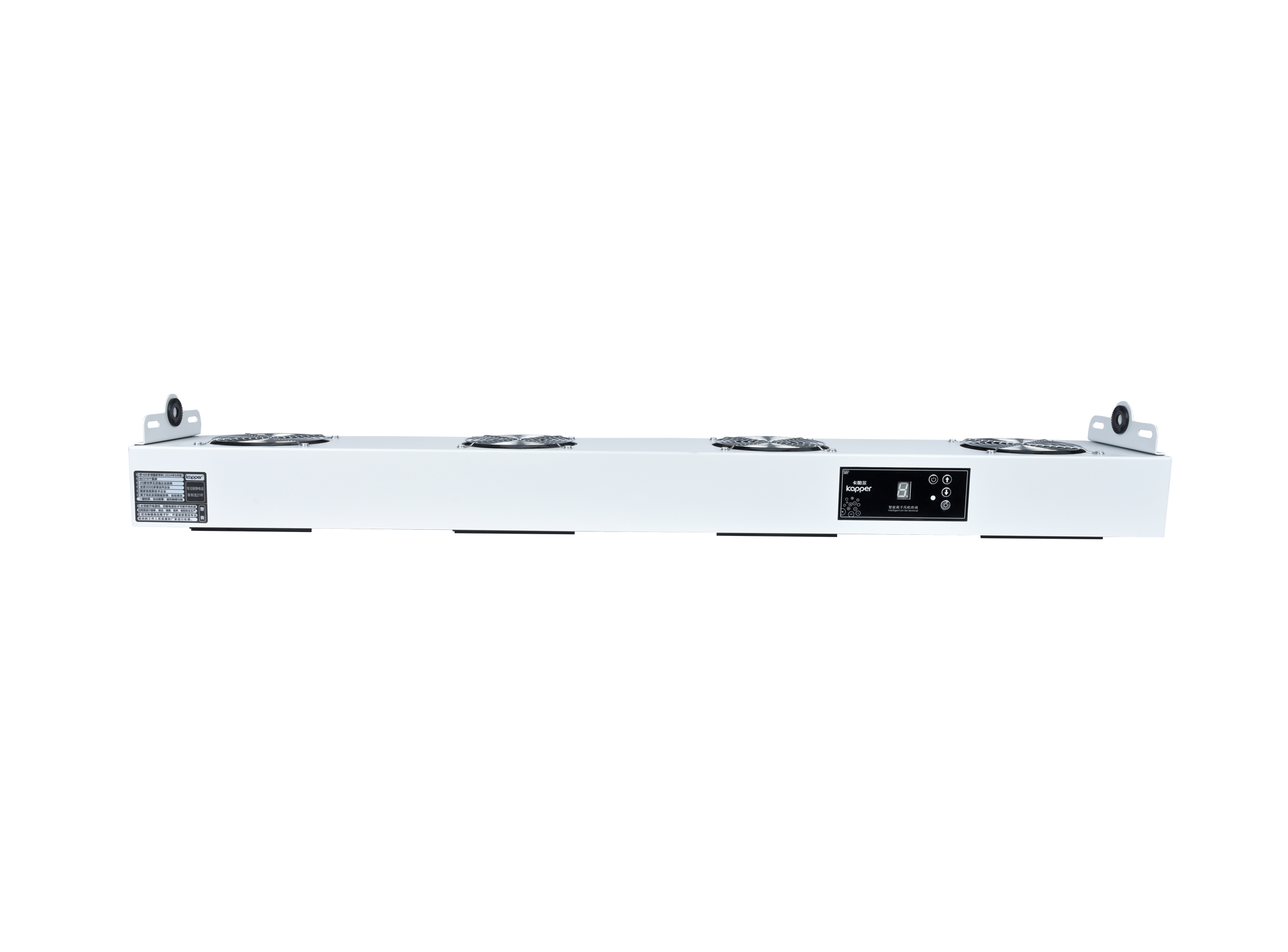

The 5th generation intelligent suspended DC four-head ion fan

Model: KP1104B

KP1104B The fifth generation intelligent suspended DC four-head ion fan is a newly developed and produced intelligent electrostatic removal device to eliminate static electricity on the surface of objects by Kapal. KP1104B The fifth generation intelligent suspended DC four-head ion fan can generate a large amount of air flow with positive and negative charges, which can bring the charges on the object into
Application areas
The 5th generation intelligent suspended DC four-head ion fan
The 5th generation intelligent suspended DC four-head ion fan
The 5th generation intelligent suspended DC four-head ion fan

Product Overview

KP1104B The 5th generation intelligent suspension DC four-head ion fan yes Capal Newly developed to eliminate static electricity on the surface of objects Intelligent remove quiet Electrical device.

KP1104B The 5th generation intelligent suspension DC four-head ion fan A large amount of air flow with positive and negative charges can be generated, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.

KP1104B The5 Intelligent suspension DC four-head ion fan Depend on Small fan provides wind power, the wind power can be In touch buttons or remote control Make adjustmentsThe launch needle brush has automatic cleaning function every time 8 hours Automatic memory Automatic cleaning , free of manual cleaning, and can customize and set cleaning time by yourself. Has high voltage fault Wind whistle Call the police and alarm lights Prompt function , auditory and visual dual intuitive understanding of whether the device works normally, When the fan encounters obstacles during normal operation, the wind power will automatically short-circuit and stop working.

KP1104B The5 Intelligent suspension DC four-head ion fan Applied to precision electronicsmedicine manufactureplasticOptoelectronics and other industries.


Features

1. Intelligent and modern, with exquisite appearance, fine production and novel design.

2. Automatic cleaning function of the launch needle brush, automatic memory, and no manual cleaning.

3. Remote control and touch dual control power supply start to adjust the wind power.

4. It has high-voltage fault wind alarm and alarm light prompt functions, and has dual auditory and visual intuitive understanding of whether the equipment is working normally.

5. The remote control lock screen locks the wind speed, and the workshop ion fan eliminates static electricity to achieve standardization.

6. If the fan encounters obstacles during normal operation, the wind will automatically short-circuit and stop working.

7. Fast destatic electricity, low balance voltage, and high safety performance.

8. Energy-saving and environmentally friendly, low power consumption.


Technical parameters

control Panel

LED digital display

Wind speed gear (locked, anti-stupid)

Automatic cleaning button

Every other Automatic cleaning for 8 hours (can be designed for 0-8 hours by yourself) (locking, anti-dust)

Fault alarm

The sound of the wind sounds /The indicator light is blinking red

Touch the button to adjust the speed

remote control /Touch dual control (locking, anti-dust)

Wind speed gear

remote control /Touch dual control (locking, anti-dust)

Power start

remote control /Touch dual control (locking, anti-dust)

One-click screen lock

Remote control (locking, anti-dust)

power supply

Intelligent frequency conversion of power supply AC 220V/filtered anti-interference

DC intelligent control system/fan DC12V

The socket is wired on the back

/

Appearance

Fixed method

Angle has anti-dust function

Material

Cold rolled plate

surface

Electrostatic spray paint

ribbon

Available

Front plastic air window

Freely disassembled

Rear plastic air window

Optional filter

Case grounding

No leakage (safety)

No bracket size included

1000mm(L)*150mm(W)*80mm(H)

Electrostatic facilities

Automatic cleaning of discharge needle

/

Discharge needle material

Tungsten alloy

Discharge time

2S (300MM away from the product)

Ion equilibrium

≤±|10V|(300MM away from the product)

Power connection method

frequency conversion AC 5.0KV

Effective radius control by destatic electrostatic control 300mm

Distance product 300MM

Fan

Fan air volume5.1m3/min

Distance product 300MM

achievement    Rate

16W

Working distance

100600mm

Operating temperature

0-50

Working humidity

56%-65%

out wind quantity

160-330CFM

noise    sound

45-60dB

net    Heavy

about 6.4kg

Gross weight

about 8.0kg

other

One year warranty


Test results

Test conditions

humidity:60%         Test voltage: 1KV-100V Ambient temperature: 22

distance

300mm

Neutralization time

just

0.6s

burden

0.8s

Residual voltage

just

+4v

burden

-5v

* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.

* Testing is based on IEC-61340-5-1 A·6.

* The test data will vary depending on the temperature and humidity changes around it


Remote Control Function

Lock screen without lighting remote control.png

Note: The remote control is a consumable and is not covered by the warranty.

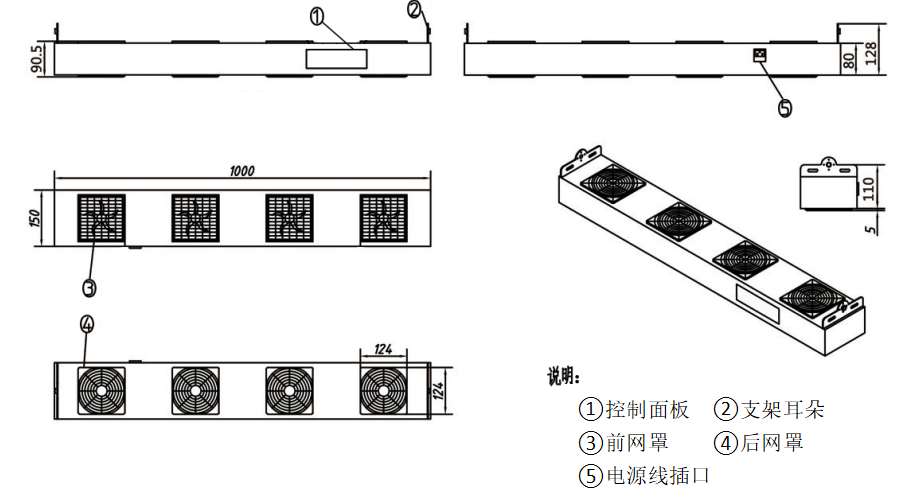

External dimensions


Installation method
