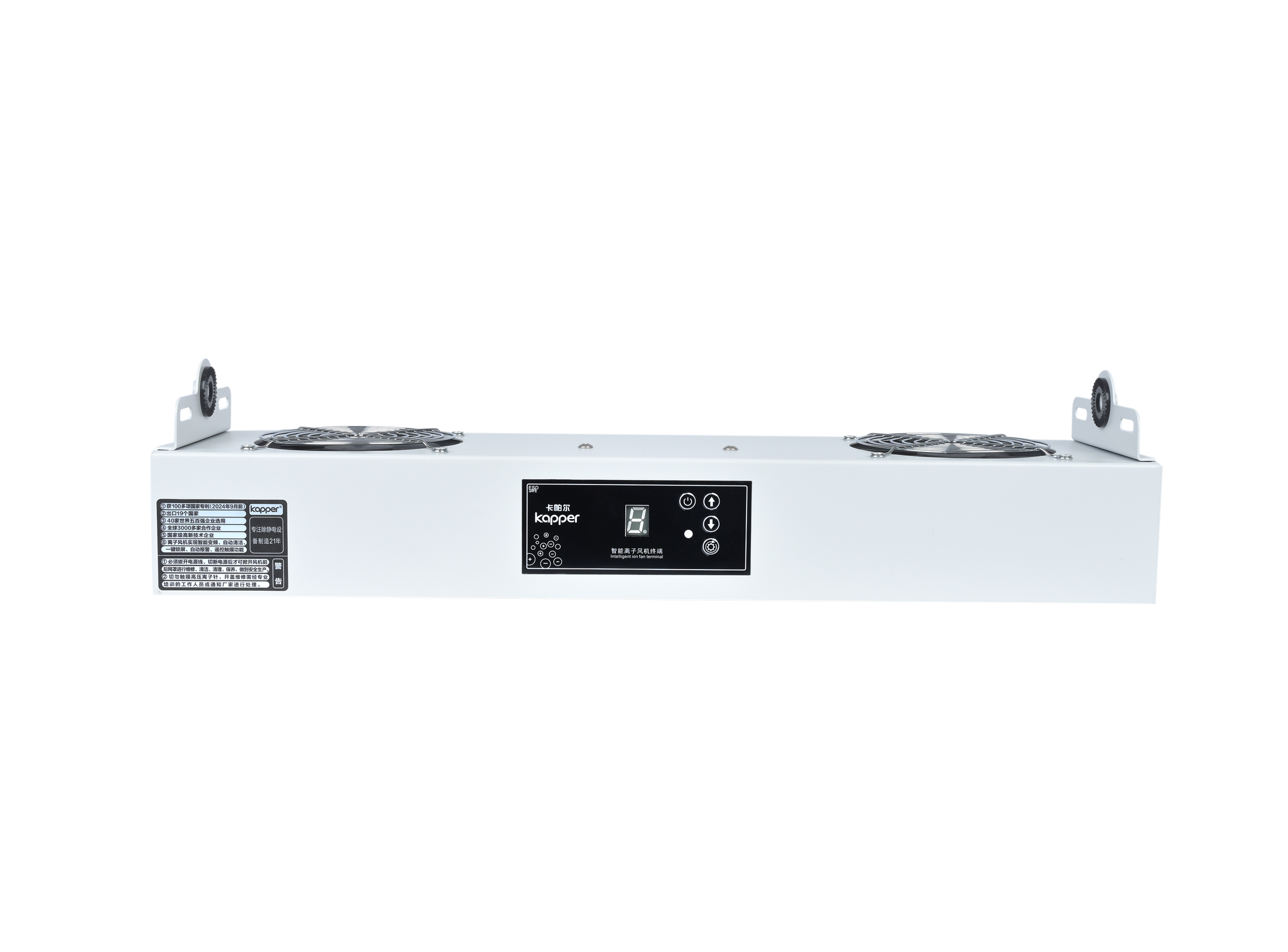

The 5th generation intelligent suspended DC double-head ion fan

Model: KP1102B

KP1102B The fifth generation of intelligent suspended DC double-head ion fan is a newly developed and produced intelligent electrostatic removal device to eliminate static electricity on the surface of objects by Kapal. KP1102B The fifth generation intelligent suspended DC double-headed ion fan can generate a large amount of air flow with positive and negative charges, which can bring the charges on the object into
Application areas

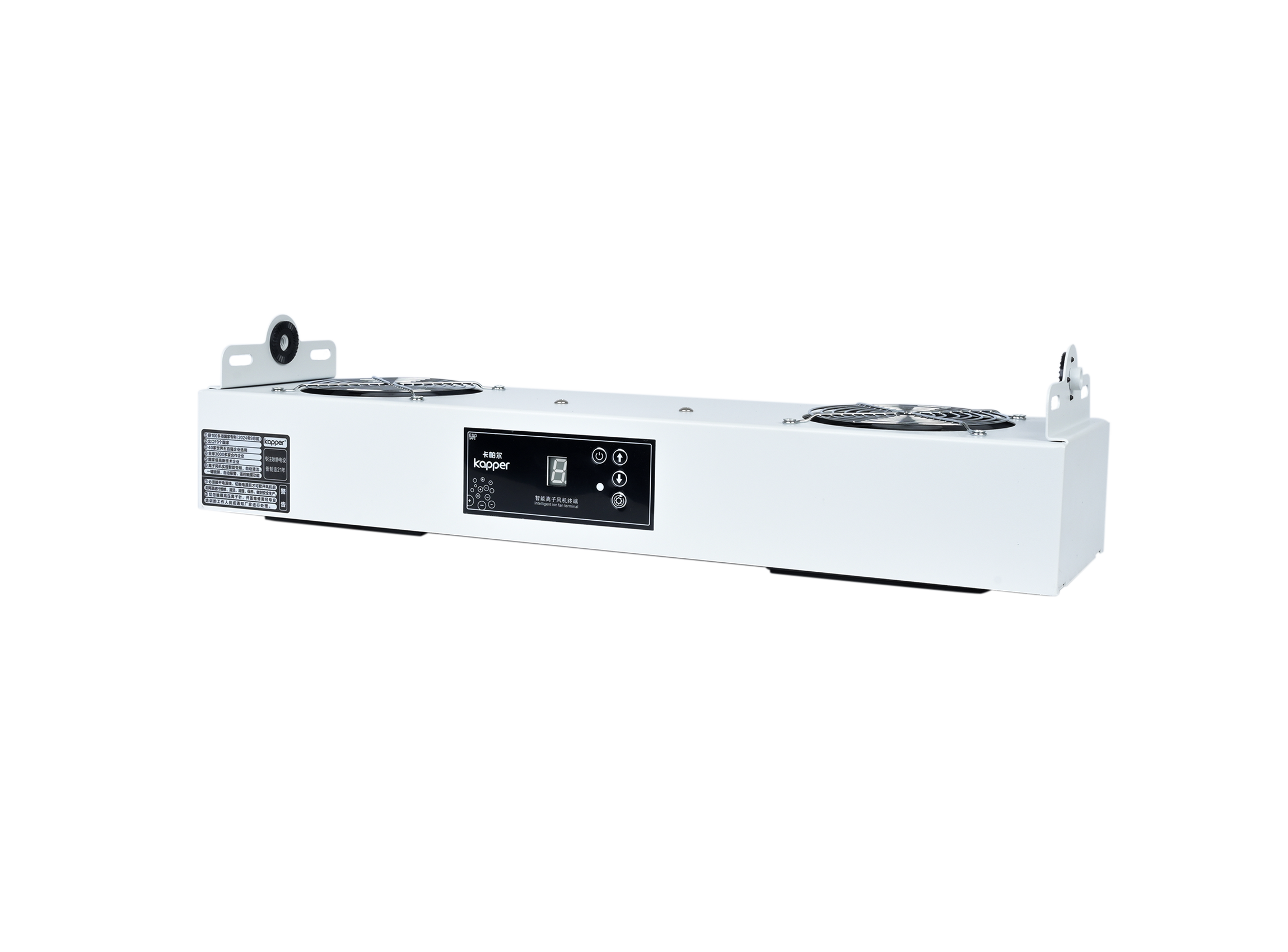

The 5th generation intelligent suspended DC double-head ion fan

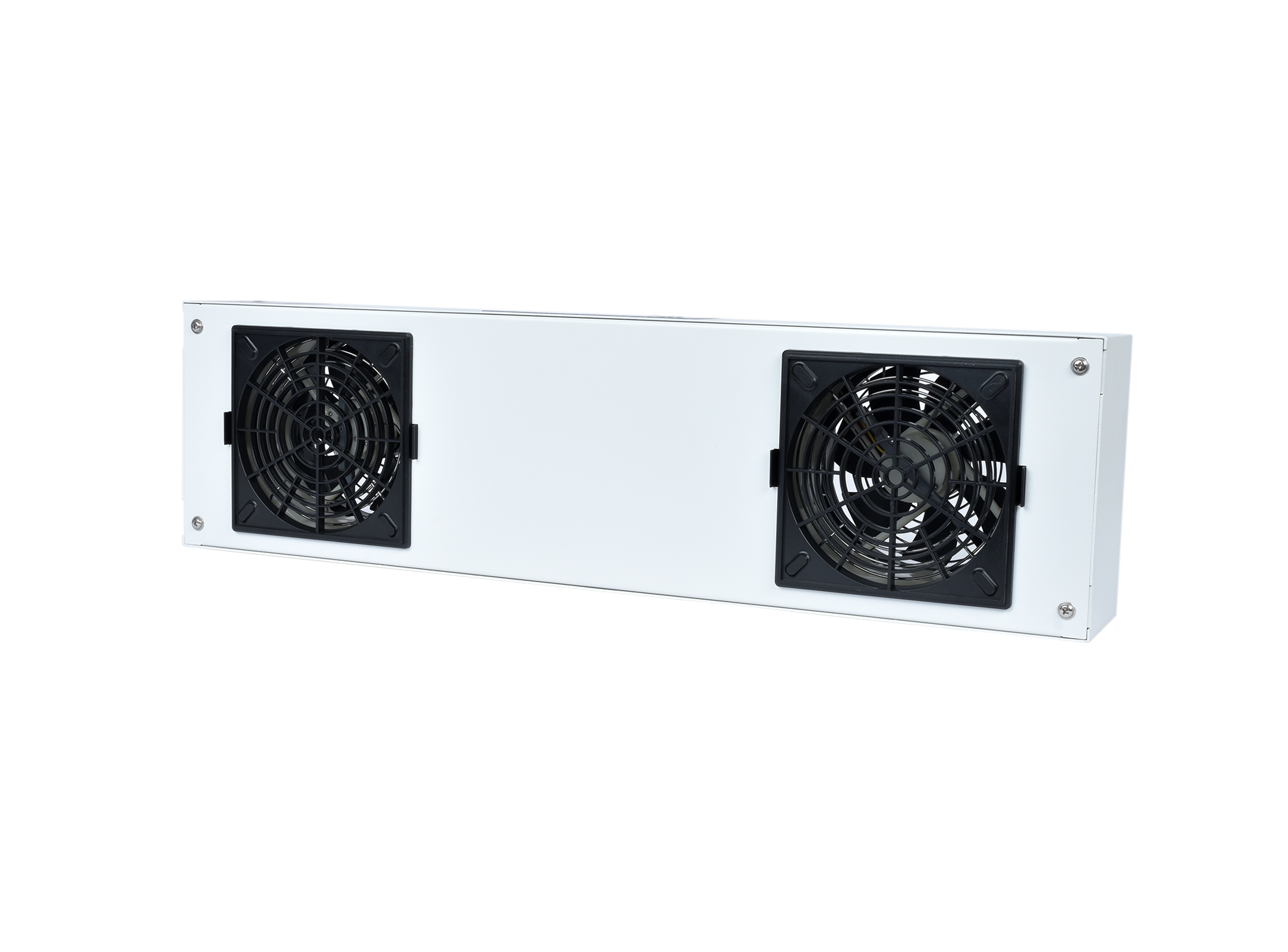

The 5th generation intelligent suspended DC double-head ion fan
The 5th generation intelligent suspended DC double-head ion fan

Product Overview

KP1102B The 5th generation intelligent suspension DC double-head ion fan yes Capal The company has newly developed and produced to eliminate static electricity on the surface of objects Intelligent remove quiet Electrical device.

KP1102B The 5th generation intelligent suspension DC double-head ion fan A large amount of air flow with positive and negative charges can be generated, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.

  KP1102B The5 Smart suspension type DC Double-head ion fan Depend on Small fan provides wind power, the wind power can be In touch buttons or remote control Make adjustmentsThe launch needle brush has automatic cleaning function every time 8 hours Automatic memory Automatic cleaning , free of manual cleaning, and can customize and set cleaning time by yourself. Has high voltage fault Wind whistle Call the police and alarm lights Prompt function , auditory and visual dual intuitive understanding of whether the device works normally , the fan encounters obstacles during normal operation, and the wind power automatically short-circuits and stops working.

KP1102B The5 Smart suspension type DC Double-head ion fan is used in precision electronicsmedicine manufactureplasticOptoelectronics and other industries.


Features

1, intelligent and modern, with exquisite appearance, fine production and novel design.

2, automatic cleaning function of the launch needle brush, automatic memory, and no manual cleaning.

3, Remote control: Touch dual control power supply to start to adjust the wind power.

4、Has high voltage fault Wind whistle Call the police and alarm lights Prompt function , auditory and visual dual intuitive understanding of whether the device is normal Work.

5. The remote control lock screen locks the wind speed, and the workshop ion fan eliminates static electricity to achieve standardization.

6. If the fan encounters obstacles during normal operation, the wind will automatically short-circuit and stop working.

7、remove quiet Fast electricityLow equilibrium voltageHigh safety performance.

8. Energy-saving and environmentally friendly, low power consumption.

9. The ionic equilibrium is adjustable.


Technical parameters

control Panel

LED digital display

Wind speed gear (locked, anti-stupid)

Automatic cleaning button

Every other Automatic cleaning for 8 hours (can be designed for 0-8 hours by yourself) (locking, anti-dust)

Fault alarm

The sound of the wind sounds /The indicator light is blinking red

Touch the button to adjust the speed

remote control /Touch dual control (locking, anti-dust)

Wind speed gear

remote control /Touch dual control (locking, anti-dust)

Power start

remote control /Touch dual control (locking, anti-dust)

One-click screen lock

Remote control (locking, anti-dust)

power supply

Power supply intelligent DC DC 12V/filtered anti-interference

DC intelligent control system/fan DC12V

The socket is wired on the back

/

Appearance

Fixed method

Angle has anti-dust function

Material

Cold rolled plate

surface

Electrostatic spray paint

ribbon

Available

Front plastic air window

Freely disassembled

Rear plastic air window

Optional filter

Case grounding

No leakage (safety)

No bracket size included

550mm(L)*150mm(W)*80mm(H)

Electrostatic facilities

Automatic cleaning of discharge needle

/

Discharge needle material

Tungsten alloy

Discharge time

2S (300MM away from the product)

Ion equilibrium

≤±|10V|(300MM away from the product)

Effective radius control by destatic electrostatic control 300mm

Distance product 300MM

Fan

Fan air volume5.1m3/min

Distance product 300MM

achievement    Rate

10W

Working distance

100600mm

Operating temperature

0-50

Working humidity

56%-65%

out wind quantity

80-220CFM

noise    sound

45-60dB

net    Heavy

about 4.5kg

Gross weight

about 5.2kg

other

One year warranty

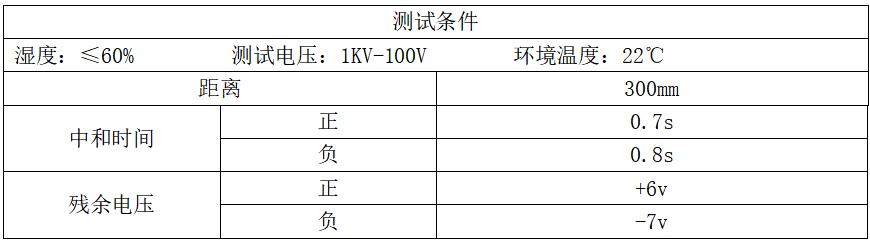

Test results


* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.

* Testing is based on IEC-61340-5-1 A·6.

* The test data will vary depending on the temperature and humidity changes around it


Remote Control Function

Lock screen without lighting remote control.png

Note: The remote control is a consumable and is not covered by the warranty.

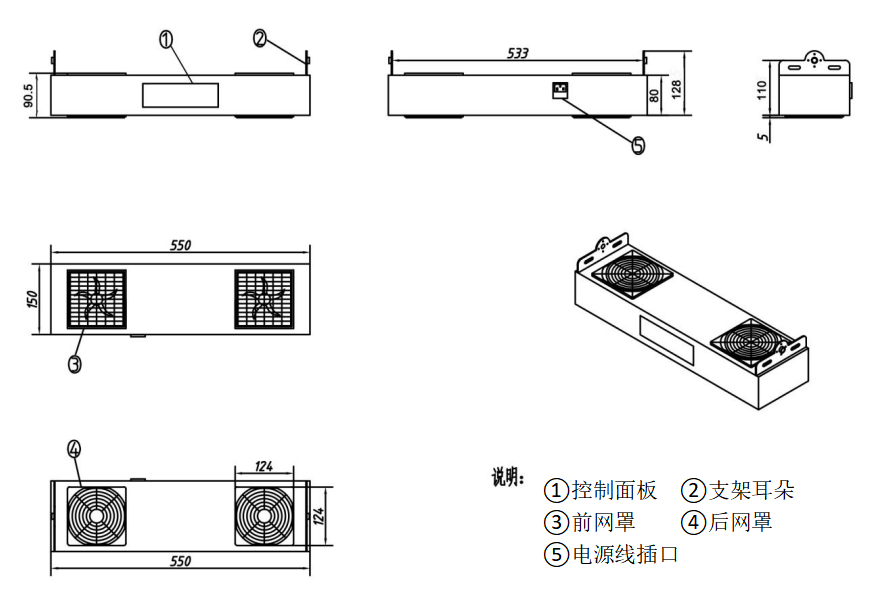

External dimensions


Installation method
