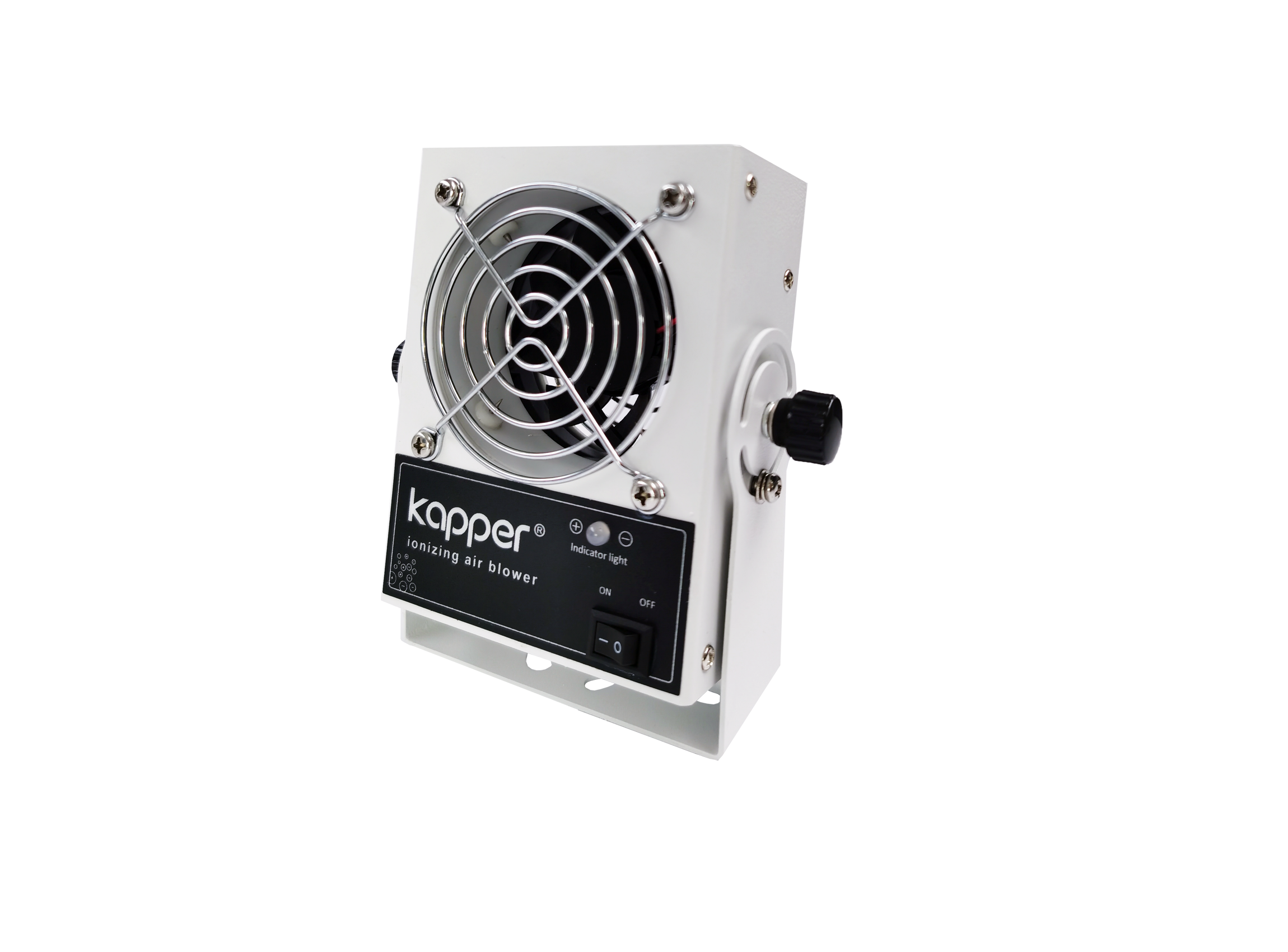

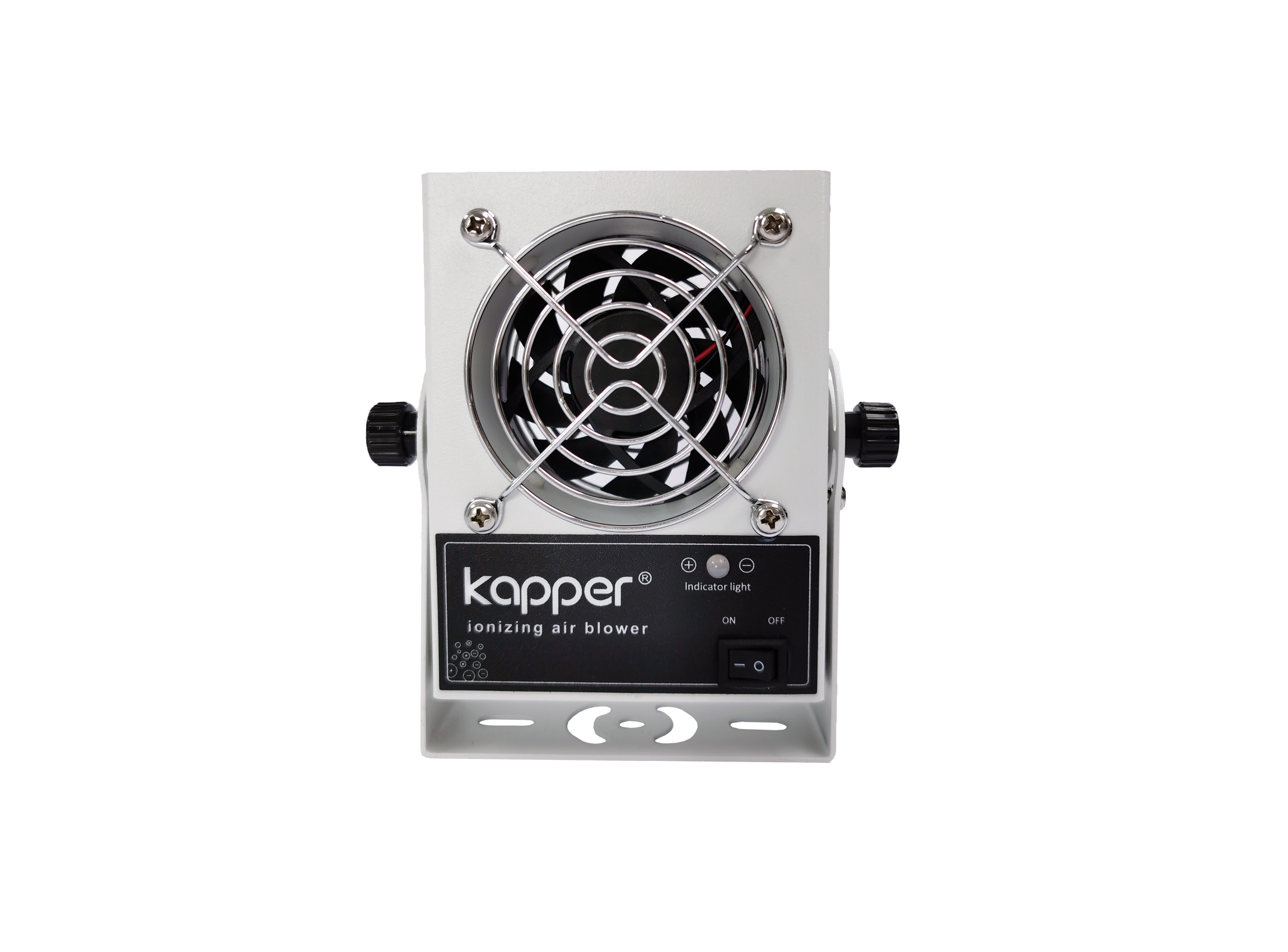

Desktop micro DC ion fan
Model: KP1106A
Application areas
Product Overview
KP1106A desktop micro DC Ion fan It is an electrostatic removal device developed and produced by Kapal Company to eliminate static electricity on the surface of objects.。
KP1106A desktop micro DC The ion fan adopts DC ion synchronous emission technology, and DC corona discharge occurs from two independent emission electrodes, generating a large number of positive and negative polar air ions, which are blown to the surface of the eliminated static object for deactivation.
KP1106A desktop micro DC Wide range of ionic fans It is used in electronics, plastics, chemicals, printing, optoelectronics and other industries.
Features
* The body is exquisite, Easy to install。
* Stable performance，Safe and reliable。
* Can be installed inside the equipment to eliminate static electricity。
* Built-in power supply, efficient and energy-saving.
* Small power and long service life.
* The third gear wind speed is adjustable.
* The ionic equilibrium is adjustable.
* PLC feedback available Function。
Technical parameters
Input voltage | 220V/50Hz |
Output voltage | DC 24V |
achievement Rate | 5.5W |
Ion equilibrium | ≤|±15V| (From the fan test center 300mm) |
Discharge time | ≤2S (From the fan test center 300mm) |
Valid range | 300×450mm (W*L) |
Operating temperature | 0℃-50℃ |
Working humidity | ＜75% |
out wind quantity | 0-90CFM |
noise sound | ≤45dB |
Ozone concentration | ≤ 0.05 ppm (150mm in the center of the air outlet) |
net Heavy | about 0.5k g |
External dimensions | 87(L)*44(W)*114(H) mm (without bracket) |
Housing material | Cold rolled plate |
surface noodle | Electrostatic spray paint |
Test results
Test conditions | ||
humidity:≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | ||
distance | 300mm | |
Neutralization time | just | 0.7s |
burden | 0.8s | |
Residual voltage | just | +6v |
burden | -7v | |
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The data tested will vary depending on the temperature and humidity changes around it.

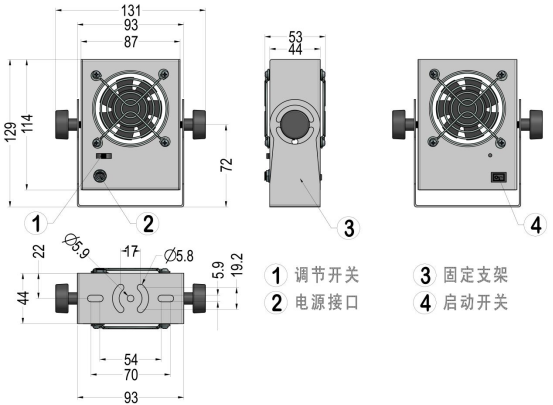

External dimensions

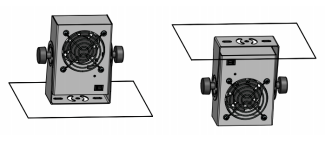

Installation method
