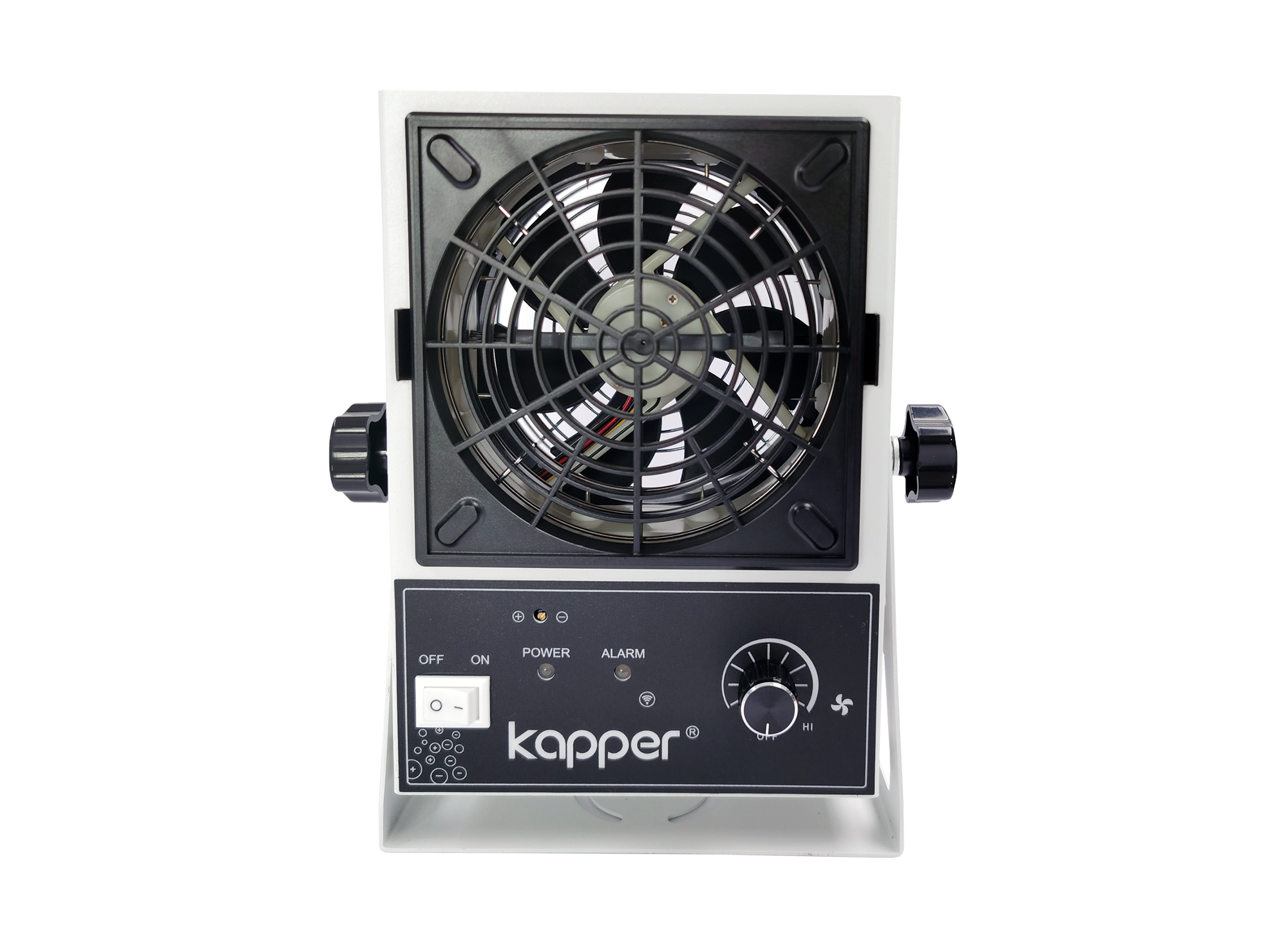

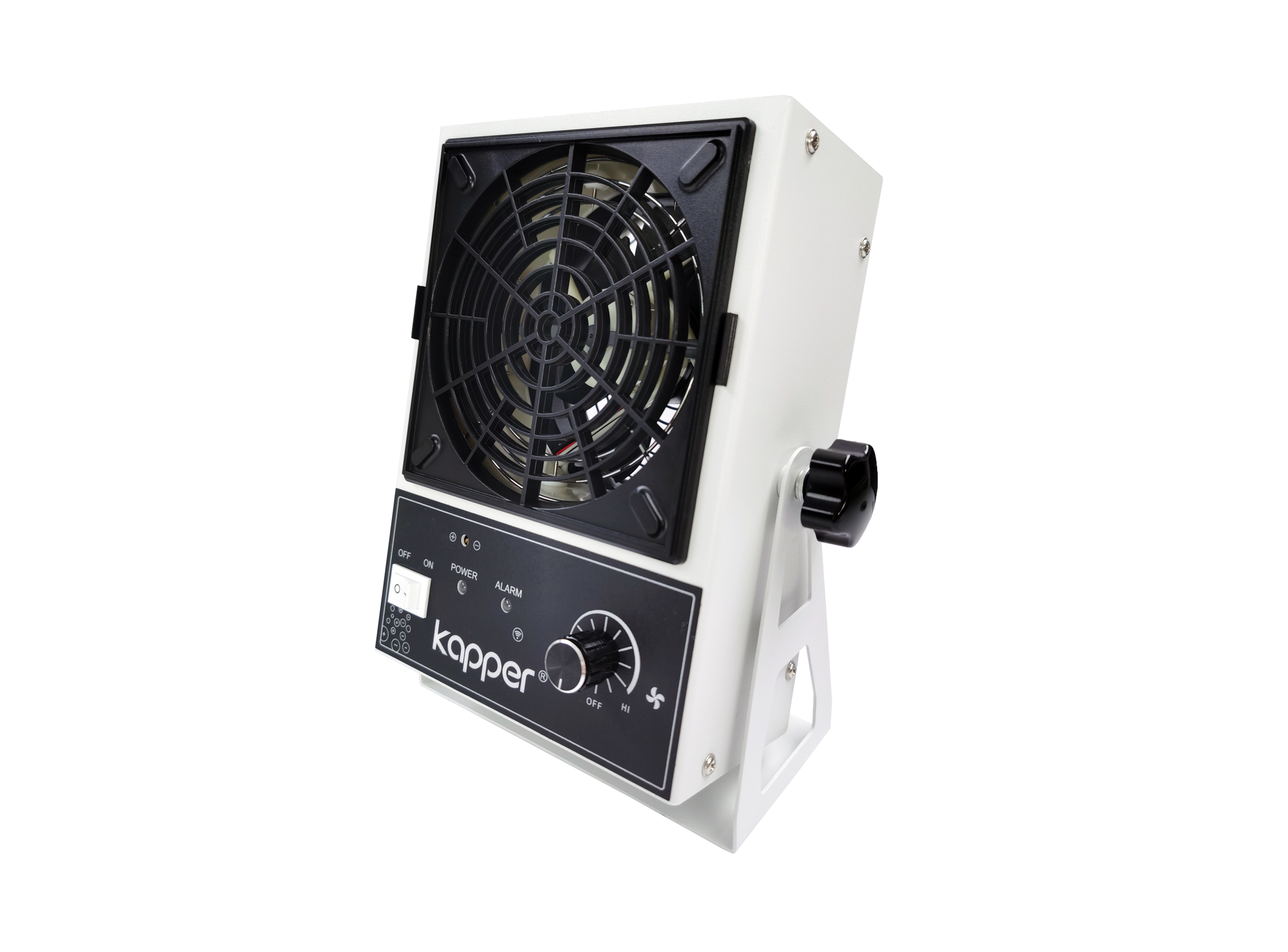

Desktop DC ion fan
Model: KP1107A
Application areas
Product Overview
KP1107A desktop DC Ion fan It is an electrostatic removal device developed and produced by Kapal Company to eliminate static electricity on the surface of objects.。
KP1107A desktop DC The ion fan adopts DC ion synchronous emission technology, and DC corona discharge occurs from two independent emission electrodes, generating a large number of positive and negative polar air ions, which are blown to the surface of the eliminated static object for deactivation.
KP1107A desktop DC Wide range of ionic fans It is used in electronics, plastics, chemicals, printing, optoelectronics and other industries.
Features
*The fan automatically cleans the transmitting needle function when it is turned on.
*Adjustable wind speed, Stable performance，Safe and reliable。
*Ejection needle every time 8 hours automatic cleaning, automatic memory, free of manual cleaning。
*have Fan failure and High voltage fault Alarm light Prompt function
*It can realize wired network communication and monitor the working status of the fan.
*During normal operation, the front wind window will be opened and the air blower will automatically cut off the power and alarm will stop working.
*The ionic equilibrium is adjustable.
Technical parameters
Input voltage | 220V/50Hz |
Output voltage | DC 24V |
achievement Rate | <12W |
Ion equilibrium | ≤|±10V| (From the fan test center 300mm) |
Discharge time | ≤2S (From the fan test center 300mm) |
Valid range | 300×600mm (W*L) |
Working humidity | ＜75% |
out wind quantity | 0-90CFM |
noise sound | ≤45dB |
Ozone concentration | ≤ 0.05 ppm (150mm in the center of the air outlet) |
Communication method | RS485 |
net Heavy | about 1.2k g |
External dimensions | 141(L)*75(W)*199(H) mm (without bracket) |
Housing material | Cold rolled plate |
surface noodle | Electrostatic spray paint |
Test results
Test conditions | ||
humidity:≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | ||
distance | 300mm | |
Neutralization time | just | 0.7s |
burden | 0.8s | |
Residual voltage | just | +6v |
burden | -7v | |
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The data tested will vary depending on the temperature and humidity changes around it.

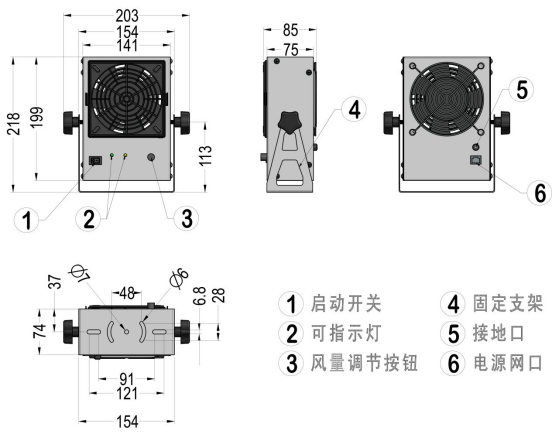

External dimensions

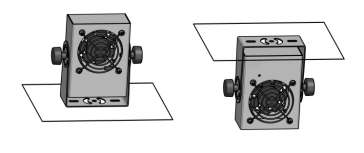

Installation method
