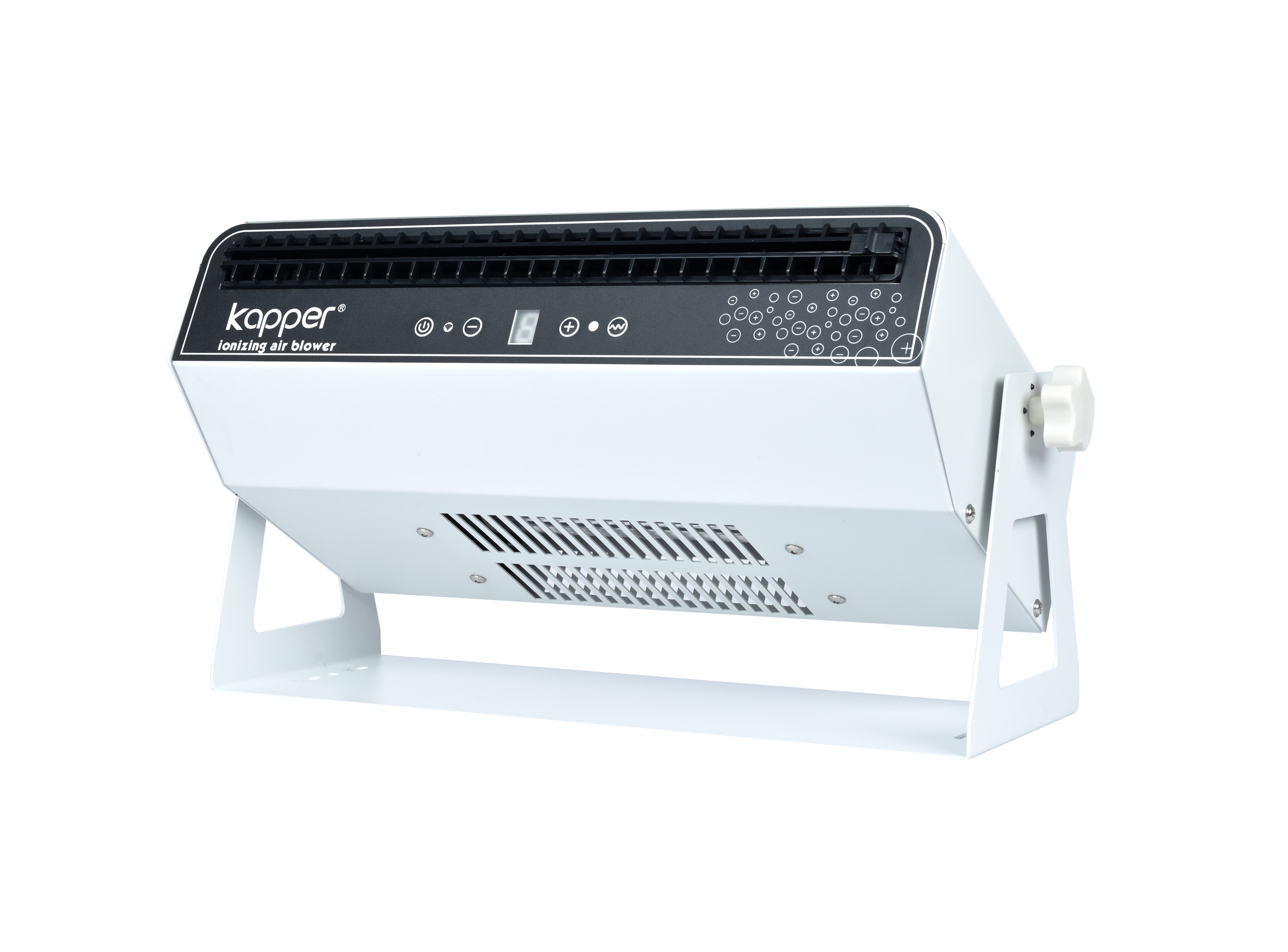

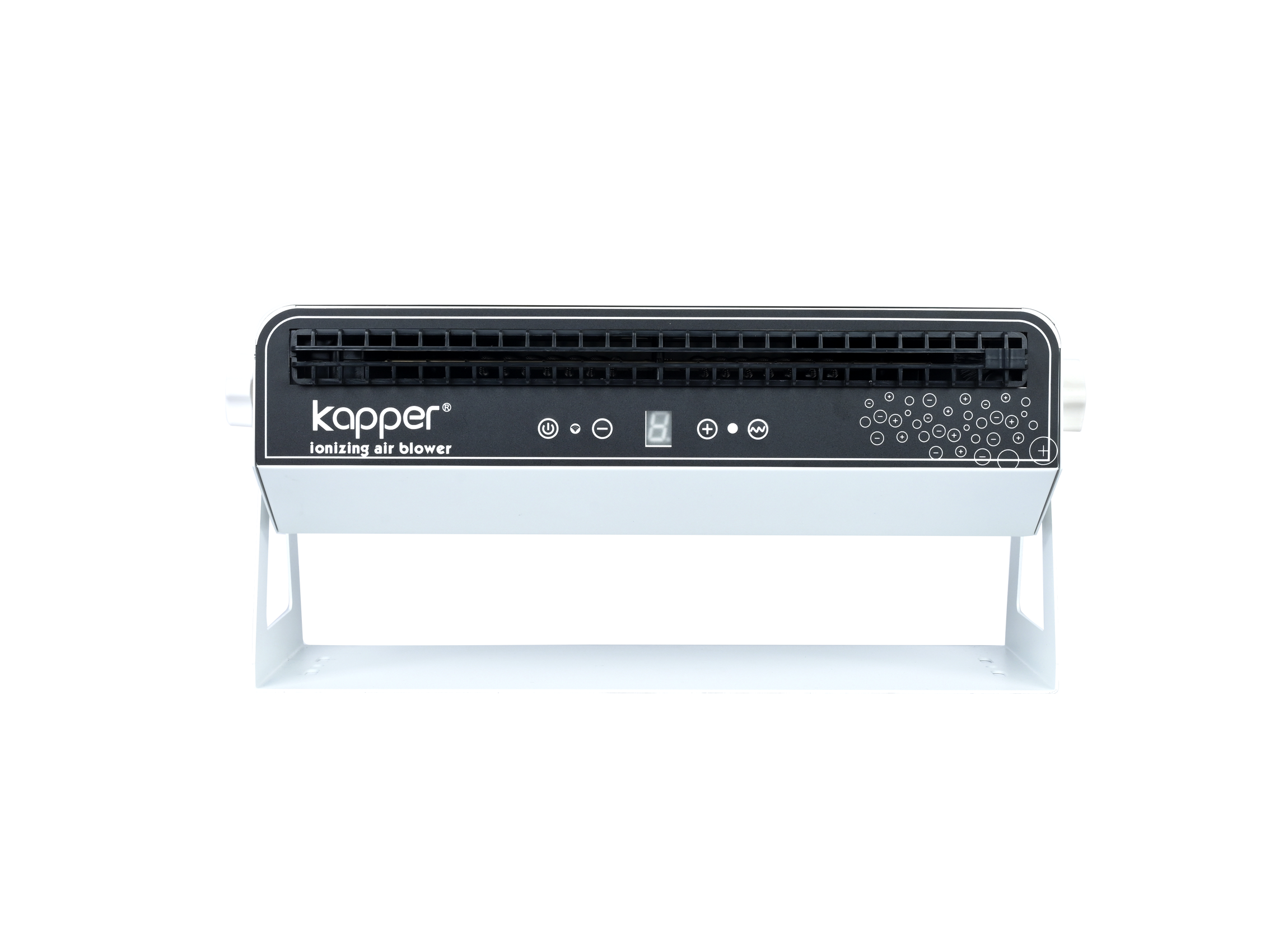

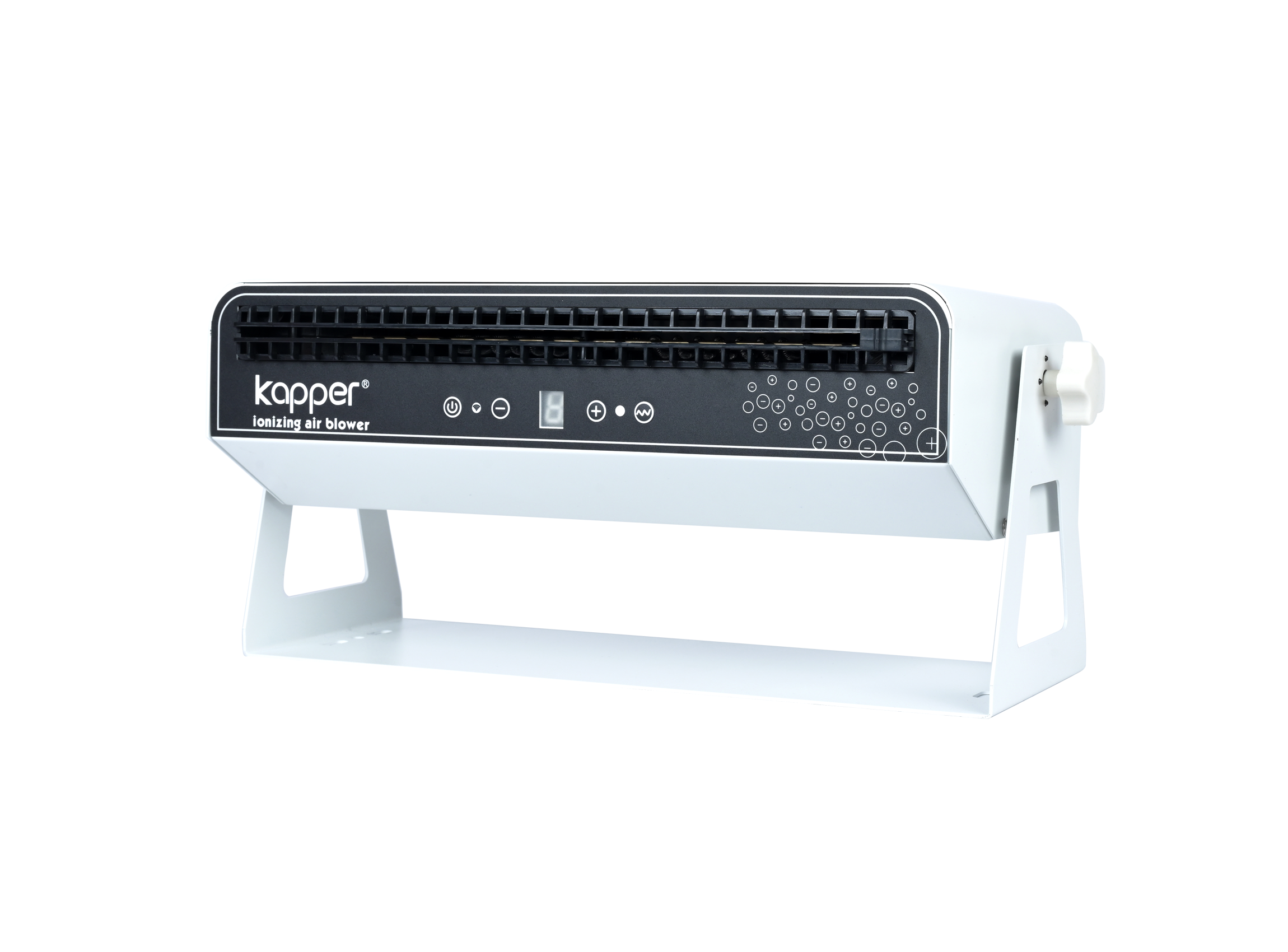

The 5th generation intelligent horizontal ion fan
Model: KP104B
Application areas
Product Overview
The 5th generation intelligent horizontal ion fan of KP104B is a newly developed and produced intelligent electrostatic removal device for eliminating static electricity on the surface of objects by Kapal.
The 5th generation intelligent horizontal ion fan of KP104B can generate a large amount of air flow with positive and negative charges, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.
The 5th generation intelligent horizontal ion fan of KP104B is provided by an axial fan. The wind power can be adjusted in the touch button or the remote control. The cold and warm air automatically switches with one-click, and has a high-pressure fault wind alarm prompt function.
KP104B 5th generation intelligent horizontal ion fan is used in electronics、medicine、Hard disk manufacturing、Optoelectronics, chip microelectronics and other industries.
Features
1. Intelligent and modern, meticulously designed, exquisite outside and excellent production.
2. The ionic gas flow covers a large area.
3. Remote control and touch dual control power supply start, adjust the wind power, and automatically switch between cold and warm air.
4. It has the function of high-voltage fault wind alarm notification.
5. Fast destatic electricity, low balance voltage, and high safety performance.
6. There is a special ion-emitting needle cleaner.
Technical parameters
control Panel | LED digital display | Show wind speed |
Fault alarm | The sound of the wind sounds /The indicator light is blinking red | |
Touch the button to adjust the speed | remote control /Touch dual control | |
Wind speed gear | remote control /Touch dual control | |
Power start | remote control /Touch dual control | |
The cooling and heating air starts | remote control /Touch dual control | |
power supply | intelligent AC 220V | / |

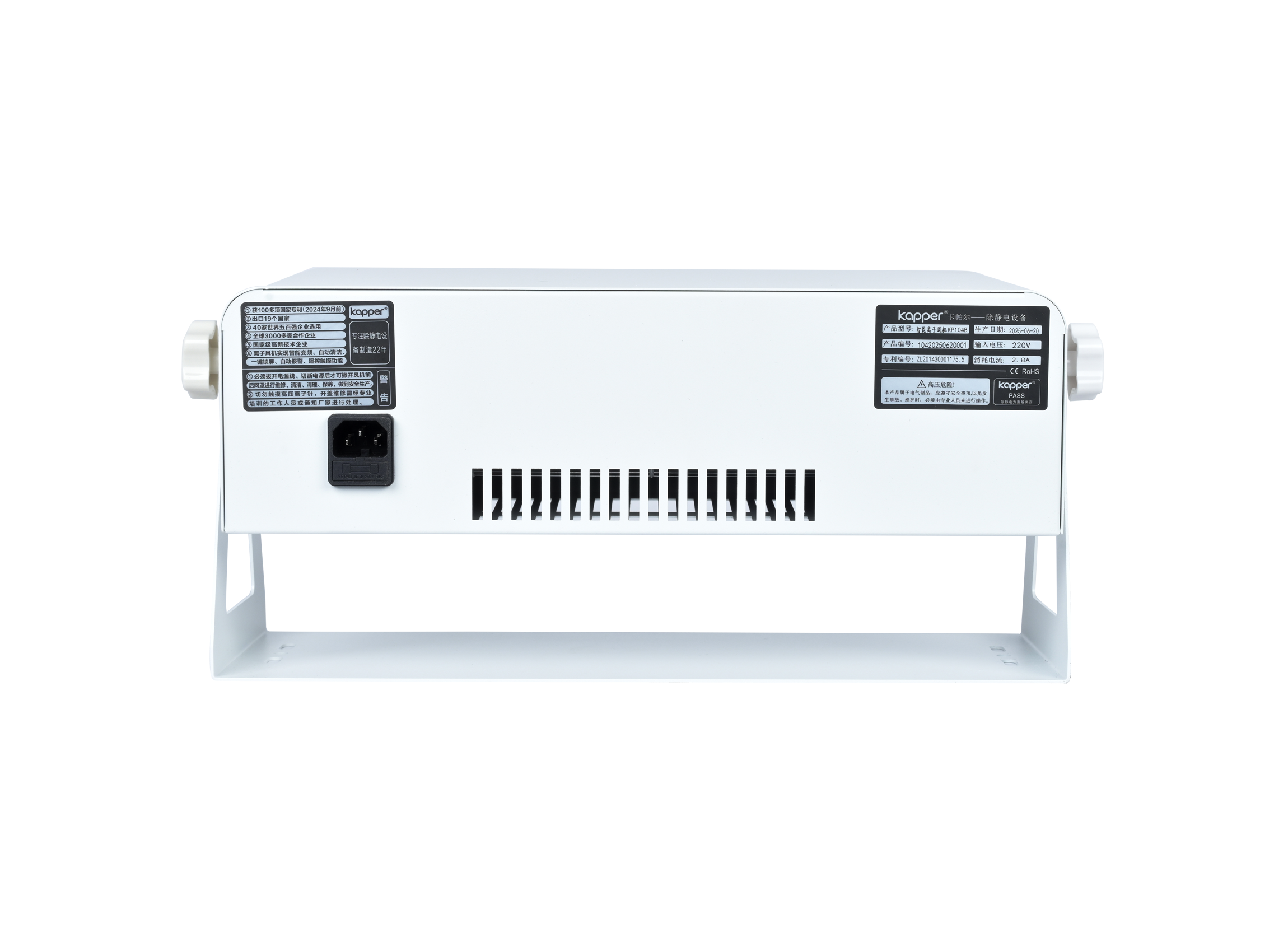

The socket is wired on the back | / | |
Appearance | Fixed method | Angle has anti-dust function |
Material | Cold rolled plate | |
surface | Electrostatic spray paint | |
Case grounding | No leakage (safety) | |
Fan size | 387mm(L)* 204mm(W)*113mm(H)(No bracket included) | |
Electrostatic facilities | Manual cleaning of discharge needle | / |
Discharge needle | Tungsten alloy | |
Static removal time≤2S | Leave the product 300MM | |
Residual voltage <±10V | / | |
Power connection method | frequency conversion AC 5.0KV | |
Effective radius control by destatic electrostatic control 300mm | Leave the product 300MM | |
Cleaning brushes will not wear out or lose hair | / | |
achievement Rate | 50W (Unheated cold air) / 250W (hot air with heating function) | |
Working distance | 100－600mm | |
Operating temperature | 22℃ | |
Working humidity | 30%-65% | |
out wind quantity | 70-120CFM | |
noise sound | 45-55dB | |
net Heavy | about 5.6kg | |
other | Warranty 1 year | |
Test results
Test conditions | ||
humidity:≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | ||
distance | 300mm | |
Neutralization time | just | 0.5s |
burden | 0.6s | |
Residual voltage | just | +5v |
burden | -6v | |
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The test data will vary depending on the temperature and humidity changes around it。

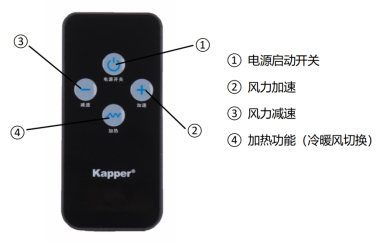

Remote Control Function
Note: The remote control is a consumable and is not covered by the warranty.

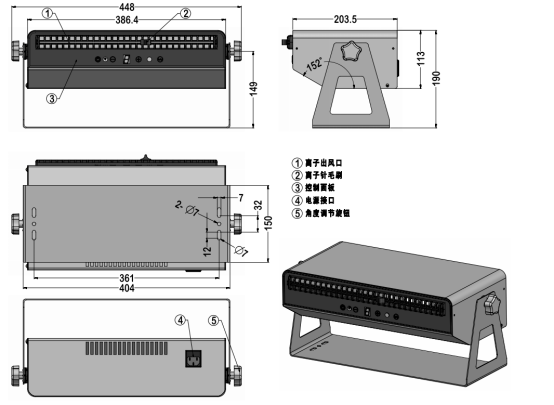

External dimensions
Installation method
