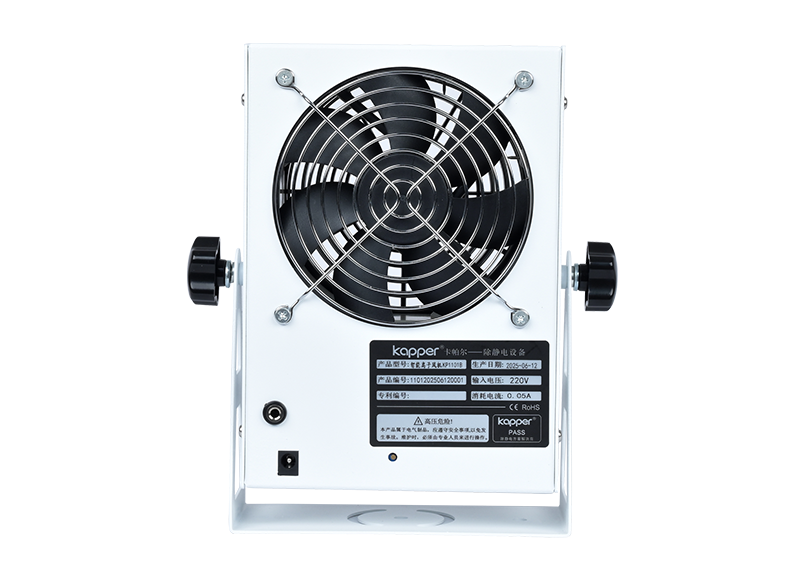

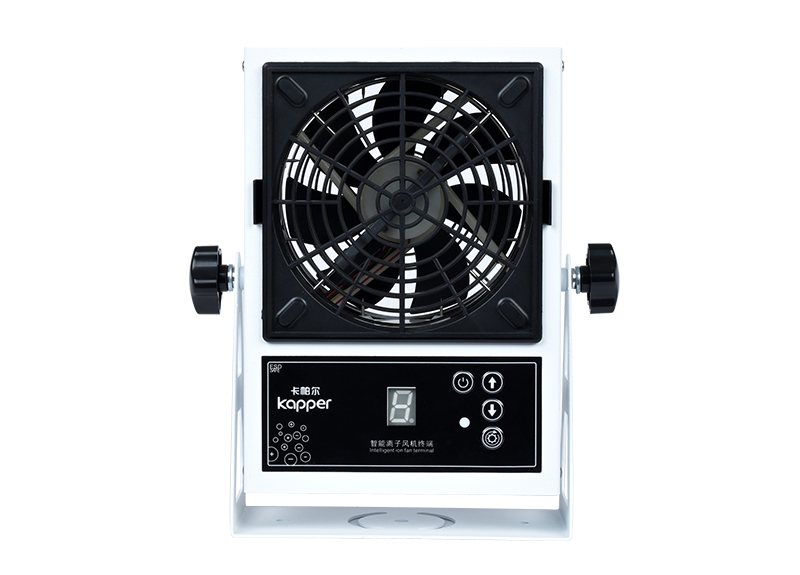

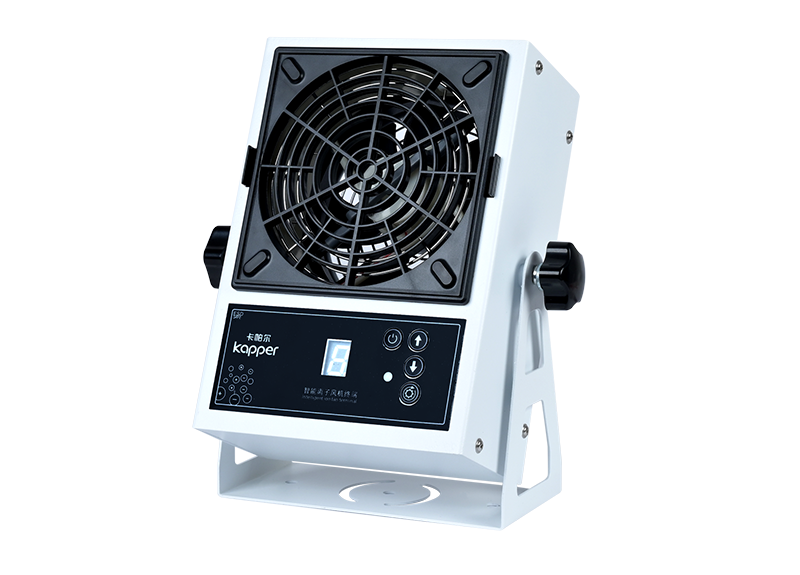

The 5th generation intelligent DC desktop ion fan
Model: KP1101B
Application areas
Product Overview
KP1101B 5th generation intelligent DC desktop ion Fan yes Capal The company's latest development and production to eliminate static electricity on the surface of objects Intelligent remove quiet Electrical device.
KP1101B 5th generation intelligent DC desktop ion Fan A large amount of air flow with positive and negative charges can be generated, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.
KP1101B 5th Generation Intelligent DC Desktop Ion fan Depend on Small fan provides wind power. The wind power is OK In touch buttons or remote control Make adjustments，The launch needle brush has automatic cleaning function every time 8 hours Automatic memory Automatic cleaning , free of manual cleaning, and can customize and set cleaning time by yourself. Has high voltage fault Wind whistle Call the police and alarm lights Prompt function , auditory and vision dual intuitive understanding of whether the device is normal and works When working normally, When the fan encounters obstacles during normal operation, the wind power will automatically short-circuit and stop working.
KP1101B 5th Generation Intelligent DC Desktop ion fan is used in precision electronics, medicine manufacture, plastic, Optoelectronics and other industries.
Features
1. Intelligent and modern, with exquisite appearance, fine production and novel design.
2. Automatic cleaning function of the launch needle brush, automatic memory, and no manual cleaning.
3. Remote control and touch dual control power supply start to adjust the wind power.
4. It has high-voltage fault wind alarm and alarm light prompt functions, and has dual auditory and visual intuitive understanding of whether the equipment is working normally.
5. The remote control lock screen locks the wind speed, and the workshop ion fan eliminates static electricity to achieve standardization.
6. If the fan encounters obstacles during normal operation, the wind will automatically short-circuit and stop working.
7. During normal operation, the front wind window will be opened and the air blower will be automatically cut off and the alarm will stop working.
8. Fast destatic electricity, low balance voltage, and high safety performance.
9. Energy-saving and environmentally friendly, low power consumption.
10. The ionic equilibrium is adjustable.
Technical parameters
control Panel | LED digital display | Wind speed gear (locked, anti-stupid) |
Automatic cleaning button | Every other Automatic cleaning for 8 hours (can be designed for 0-8 hours by yourself) (locking, anti-dust) | |
Fault alarm | The sound of the wind sounds /The indicator light is blinking red | |
Touch the button to adjust the speed | remote control /Touch dual control (locking, anti-dust) | |
Wind speed gear | remote control /Touch dual control (locking, anti-dust) | |
Power start | remote control /Touch dual control (locking, anti-dust) | |
One-click screen lock | Remote control (locking, anti-dust) | |
power supply | Intelligent frequency conversion of power supply DC 220V/filtered anti-interference | DC intelligent control system/fan DC12V |
The socket is wired on the back | / | |
Appearance | Fixed method | Angle has anti-dust function |
Material | Aluminum | |
surface | Electrostatic spray paint | |
ribbon | Available | |
Front plastic air window | Freely disassembled | |
Rear plastic air window | Optional filter | |
Case grounding | No leakage (safety) | |
No bracket size included | 140mm(L)*75mm(W)*200mm(H) | |
Electrostatic facilities | Automatic cleaning of discharge needle | / |
Discharge needle material | Tungsten alloy | |
Discharge time | ≤2S (300MM away from the product) | |
Ion equilibrium | ≤±|10V|(300MM away from the product) | |
Effective radius control by destatic electrostatic control 300mm | Distance product 300MM | |
Cleaning brush | Anti-static material, will not wear and hair loss | |
Fan | Fan air volume≤5.1m3/min | Distance product 300MM |
achievement Rate | 8W | |
Working distance | 100－600mm | |
Operating temperature | 0-50℃ | |
Working humidity | 30%-65% | |
out wind quantity | 45-130CFM | |
noise sound | 45-55dB | |
net Heavy | about 1.1kg | |
other | One year warranty | |
Test results
Test conditions | |||
humidity:≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | |||
distance | 300mm | ||
Neutralization time | just | 0.5s | |
burden | 0.6s | ||
Residual voltage | just | +5v | |
burden | -6v | ||
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The test data will vary depending on the temperature and humidity changes around it。
Remote Control Function
Note: The remote control is a consumable and is not covered by the warranty.

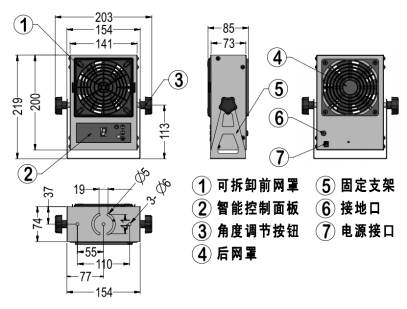

External dimensions
Installation method
