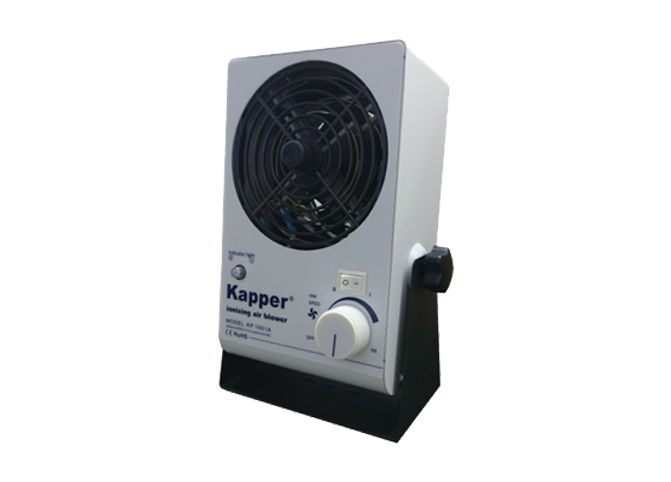

KP1001A desktop ion fan
Model: KP1001A
Application areas
Product Overview
The KP1001A desktop ion fan is an electrostatic removal device developed and produced by Kapal Company to eliminate static electricity on the surface of an object.
The KP1001A benchtop ion fan can generate a large amount of air flow with positive and negative charges, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.
The KP1001A desktop ion fan is provided with wind power by a small fan, and the wind power can be adjusted within a large range by the speed regulator switch.
KP1001A desktop ion fan is widely used in hard disk manufacturing, pharmaceutical manufacturing and assembly, electronic production and packaging, LED assembly lines, semiconductor assembly lines and other industries.
Features
* Quickly eliminate static electricity.
* Small size, light weight, portable design, adjustable angles.
* Ion balance indicator light.
* If necessary, a cold air heating device can be installed.
* There is a special ion-emitting needle cleaner equipped with a filter device for customers to choose from.
* The fan has good grounding protection function.
Technical parameters
Input voltage | 220V/50Hz or 110V/60Hz |
Output voltage | AC 5.6KV |
Power | 30W |
Ion equilibrium | ≤|±10V| (300mm from the front test center of the fan) |
Discharge time | ≤2S (300mm from the front test center of the fan) |
Valid range | 400 × 600mm |
Operating temperature | 0℃-50℃ |
Working humidity | ＜75% |
Air output | 45-110CFM |
Noise | 45-55dB |
Ozone concentration | ≤ 0.03 ppm (150mm in front of the air outlet) |
Heavy | About 2.8kg |
External dimensions | 190mm(L)*85mm(W)*240mm(H)(including bracket) |
140mm(L)*85mm(W)*220mm(H)(No bracket included) | |
Table | Electrostatic spray paint |
Test results
Test conditions | |||
Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | |||
distance | 300mm | 600mm | |
Neutralization time | just | 0.7s | 1.0s |
burden | 0.9s | 1.3s | |
Residual voltage | just | +8v | +10v |
burden | -7v | -10v | |
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The data tested will vary depending on the temperature and humidity changes around it.
