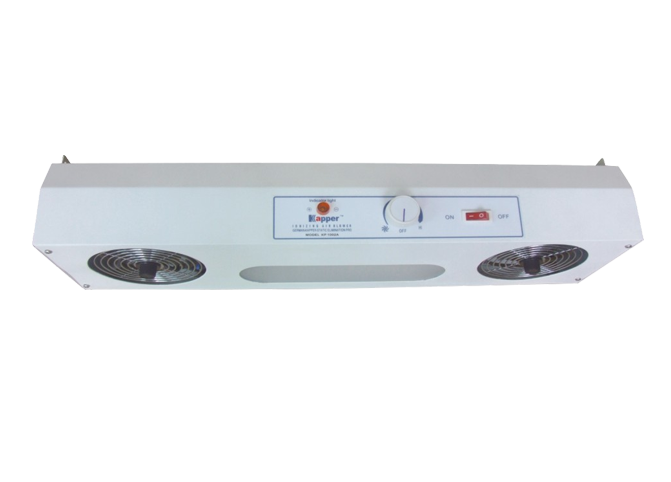

KP1002A suspension double-head ion fan
Model: KP1002A
Application areas
Product Overview
The KP1002A suspended double-head ion fan is an electrostatic removal device developed and produced by Kapal Company to eliminate static electricity on the surface of objects.
The KP1002A suspended double-headed ion fan can generate a large amount of air flow with positive and negative charges, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.
The KP1002A suspended double-head ion fan is provided with wind power by two small fans, and the wind power can be adjusted within a large range by the speed regulator switch.
KP1002A suspended double-head ion fan is widely used in pharmaceutical manufacturing and assembly, electronic production and packaging, LED assembly lines, semiconductor assembly lines and other industries.
Features
* Quickly eliminate static electricity.
* The ionic gas flow covers a large area.
* There is an ionization indicator.
* There is a special ion-emitting needle cleaner.
* If necessary, a cold air heating device can be installed.
* The suspension installation can save space.
* The fan has good grounding protection function.
Technical parameters
Input voltage | 220V/50Hz or 110V/60Hz |
Output voltage | AC 5.6KV |
Power | 50W |
Ion equilibrium | ≤|±10V| (300mm from the front test center of the fan) |
Discharge time | ≤2S (300mm from the front test center of the fan) |
Valid range | 400 × 900mm |
Operating temperature | 0℃-50℃ |
Working humidity | ＜75% |
Air output | 80-220CFM |
Noise | 49-55dB |
Ozone concentration | ≤ 0.03 ppm (150mm in front of the air outlet) |
Heavy | About 6kg |
External dimensions | 600mm(L)*170mm(W)*125mm(H) |
Table | Electrostatic spray paint |
Test results
Test conditions | |||
Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | |||
distance | 300mm | 600mm | |
Neutralization time | just | 1.0s | 1.4s |
burden | 1.0s | 1.5s | |
Residual voltage | just | +6v | +10v |
burden | -7v | -9v | |
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The data tested will vary depending on the temperature and humidity changes around it.
