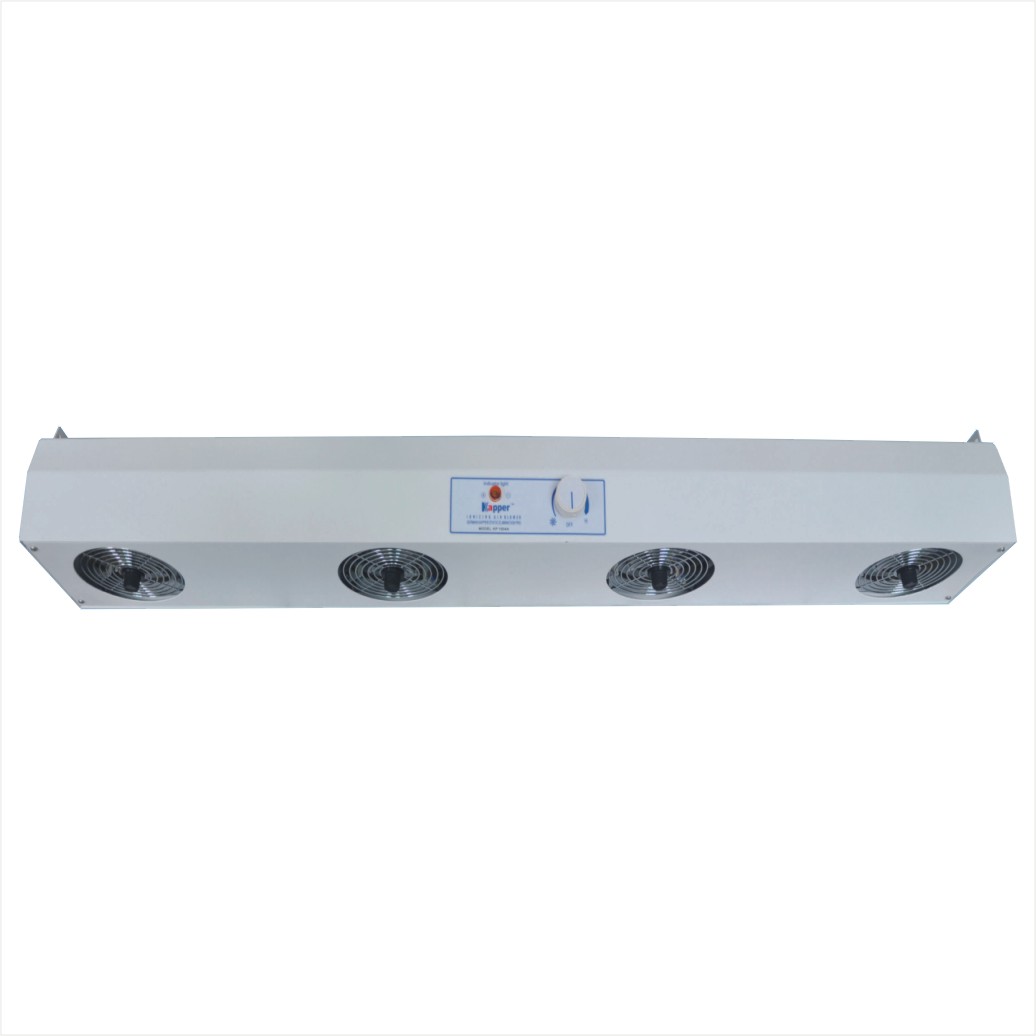

KP1004A suspended four-head ion fan
Model: KP1004A
Application areas
Product Overview
The KP1004A suspended four-head ion fan is an electrostatic removal device developed and produced by Kapal Company to eliminate static electricity on the surface of an object.
The KP1004A suspended four-head ion fan can generate a large amount of air flow with positive and negative charges, which can neutralize the charge carried on the object. When the surface of an object is negatively charged, it will attract positive charges in the air flow. When the surface of an object is positively charged, it will attract negative charges in the air flow, thereby neutralizing the static electricity on the surface of the object to achieve the purpose of eliminating static electricity.
The KP1004A suspended four-head ion fan is provided with wind power by four small fans, and the wind power can be adjusted within a large range by the speed regulator switch.
KP1004A suspended four-head ion fan is widely used in pharmaceutical manufacturing and assembly, electronic production and packaging, LED assembly lines, semiconductor assembly lines and other industries.
Features
* Quickly eliminate static electricity.
* The ionic gas flow covers a large area.
* There is an ionization indicator.
* There is a special ion-emitting needle cleaner.
* The suspension installation can save space.
* The fan has good grounding protection function.
* The fan has the function of heating the air.
Technical parameters
Input voltage | 220V/50Hz or 110V/60Hz |
Output voltage | AC 5.6KV |
Power | 50W |
Ion equilibrium | ≤|±10V| (300mm from the front test center of the fan) |
Discharge time | ≤2S (300mm from the front test center of the fan) |
Valid range | 500 × 1200mm |
Operating temperature | 0℃-50℃ |
Working humidity | ＜75% |
Air output | 160-330CFM |
Noise | 50-65dB |
Ozone concentration | ≤ 0.03 ppm (150mm in front of the air outlet) |
Heavy | About 8.8kg |
External dimensions | 1100mm(L)*170mm(W)*125mm(H) |
Table | Electrostatic spray paint |
Test results
Test conditions | |||
Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | |||
distance | 300mm | 600mm | |
Neutralization time | just | 1.0s | 1.7s |
burden | 1.0s | 1.8s | |
Residual voltage | just | +5v | +9v |
burden | -8v | -9v | |
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Testing is based on IEC-61340-5-1 A·6.
* The data tested will vary depending on the temperature and humidity changes around it.
